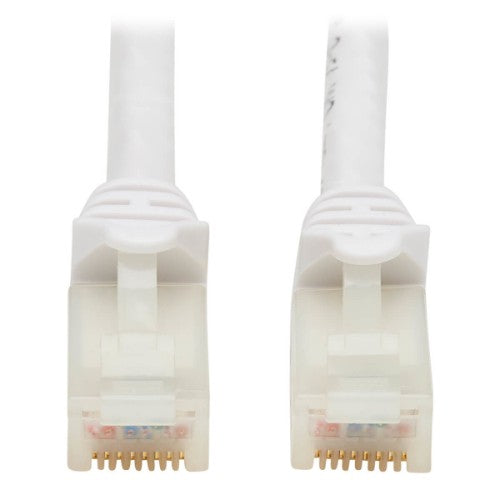

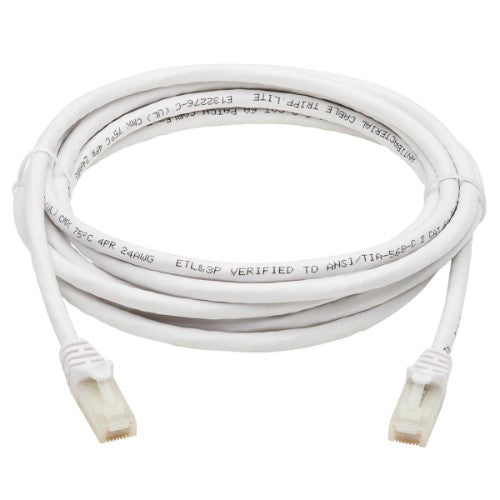

Safe-IT Cat6a 10G Snagless Antibacterial UTP Ethernet Cable (RJ45 M/M), PoE, White, 10 ft. (3.05 m), TAA

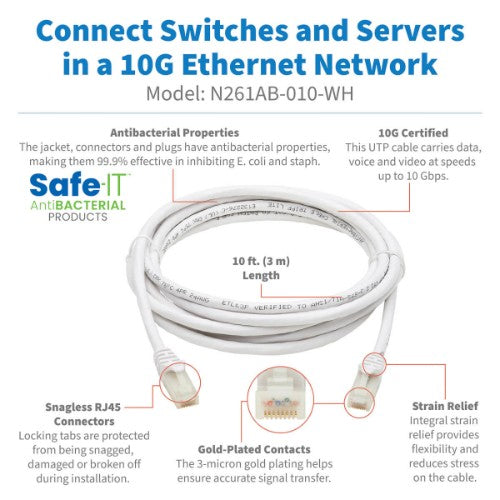

Key Features
- Premium Cat6a cable rated for high-speed 10 Gbps home/office communications
- Made with antibacterial material proven effective in inhibiting the growth of E. coli and staph
- Snagless RJ45 connectors protect locking tabs against damage during installation
- 24 AWG copper wire and 3 µm gold-plated contacts allow superior signal transfer
- White jacket permits fast, easy identification in a crowded switch or patch panel
Description
Cat6a Cable Ideal for Connecting Equipment in Your 10G Ethernet NetworkThis Cat6a Ethernet cable (M/M) with RJ45 connectors transmits 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, servers, routers, adapters, hubs and patch panels, in high-density data centers. Designed for fast transmission and excellent signal quality, this Cat6a cable ensures peak performance throughout your local area network (LAN).
Provides Extra Protection Against Certain BacteriaThe connectors and PVC jacket are constructed using an antibacterial material that is effective in inhibiting the growth of Escherichia coli (E. coli) and Staphylococcus aureus (staph).This added protection makes this cable an ideal solution for medical facilities, schools, businesses, restaurants/kitchens and anywhere else that needs extra protection against bacteria.

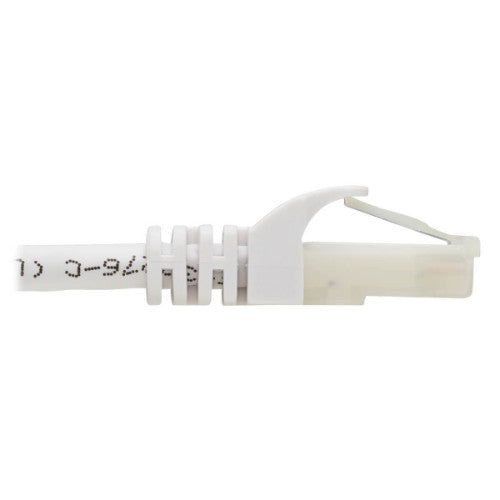

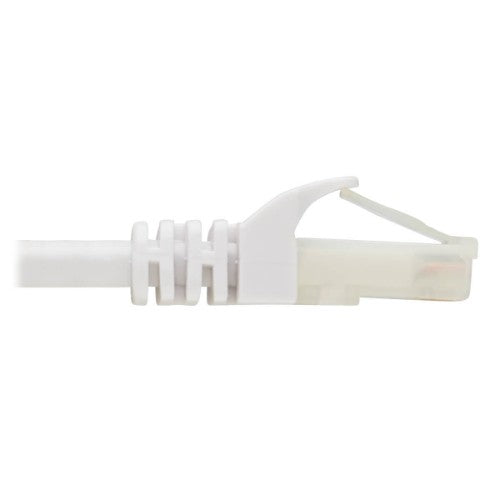

Snagless RJ45 Male Connectors Keep Tabs Intact During InstallationThe RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.

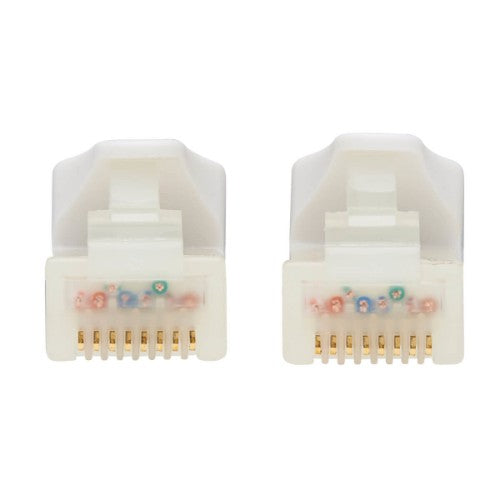

Premium Construction for Superior PerformanceManufactured from 24 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. The RJ45 connectors improve near-end crosstalk (NEXT) performance to 500 MHz and feature 3-micron gold plating to help ensure the most accurate signal transfer possible.
White Jacket Helps Avoid Misidentification That Can Cause Costly DowntimeThe cable has a white PVC jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected.
Specifications
| Features |
|---|
| Product colour |
White |
| Snagless cable boot |
Yes |
| Country of origin |
Taiwan |
| Conductor material |
Copper |
| Frequency |
500 MHz |
| AWG wire size |
24 |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Data transfer rate |
10000 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
120.1" (3.05 m) |
| Cable shape |
Round |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certification |
REACH |
| Harmonized System (HS) code |
8544.42.2000 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-15 - 60 °C |
| Storage relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Certificates |
|---|
| Certification |
REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Outer diameter |
0.244" (6.2 mm) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
4.94 oz (140 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
White |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Data transfer rate |
10000 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
120.1" (3.05 m) |
| Country of origin |
Taiwan |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332259803 |
| Logistics data |
|---|
| Master (outer) case gross weight |
2.98 lbs (1.35 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
16" (406.4 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
18" (457.2 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332259803 |
| Harmonized System (HS) code |
8544.42.2000 |
