SSD M.2, PCIe 3.0 x4, USB 3.2 Gen 2x2, 20Gbps
Key Features

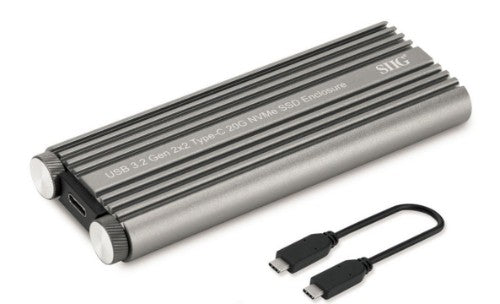

- This ultra small enclosure easily adds fast M.2 (M key) PCIe NVMe SSD storage to your Windows or Mac computers through USB 3.2 Gen 2x2 USB-C port
- Ultra-fast data transfer rate up to 20Gbps through USB 3.2 Gen 2x2 with UASP technology. Requires UASP compatible USB 3.2 Gen 2 2x2 host controller hardware along with Windows 10 and Windows 8 USB 3.2 host controller drivers
- Compliant with SuperSpeed USB 20Gbps/10Gbps/5Gbps, High Speed 480Mbps, and Full Speed 12Mbps
- Accommodates 2230, 2242, 2260, and 2280 form factor M-Key M.2 PCIe NVMe SSD. Note: Does NOT work with B-key M.2 PCIe NVMe SSDs or M.2 SATA SSDs
- USB Type-C (USB-C) interface with reversible connection design supports non-directional plug-in connection
- Compatible with PCIe 3.0 x4 specification and backward compatible with PCIe 1.0 and PCIe 2.0
- Aluminum housing offers durability and excellent neat dissipation for long life and reliable performance
- Ultimate SuperSpeed transmission allows you to enjoy unprecedented data transfer speed, saves times for large-capacity data transmission and improves efficiency working at the office or home
- Convenient tool free design, easily installs your NVMe SSD without using a screw driver
- Bus powered for extra portability, no need to take along a separate power adapter while on-the-go
- Built-in LED indicates power and data transfer status
- Plug-n-Play with no driver installation required
- Includes USB-C cable for easy connection to notebook or laptop
Description
Siig USB C to DP Cable 2M - 2M 4K at 60Hz USB-C DP Alt Mode to DP Cable with 3 Display ModesEasily connect Laptop/Smartphone/Tablet via USB-C with DP Alt mode connection, which can extend DP signals anytime and anywhere without latency- Transforms a single DisplayPort signal up to 2m (6.56 ft) from the USB-C with DP Alt mode or Thunderbolt 3 source device (Laptop, Desktop, Tablet, or Smart phone, etc.)* Note: - USB-C source port has to support DisplayPort Alternate mode (aka Alt mode) for video output- This USB-C to DisplayPort cable does not support bi-directional communication - Supports PCM 7.1ch. Video resolutions up to 3840x2160 at 60Hz 4:4:4 8-bit, HDR 3840x2160 at 60Hz 4:2:0 10-bit, and backward compatible with 720p HD, 1080p Full HD- USB Type-C interface with reversible connection design supports non-directional plug-in connection- Supports 3 dispaly modes (mirror, extend, or primary) for presentation or entertainment applications- Plug-n-Play, no driver installation or external power adapter required.
Specifications
| Storage |
|---|
| Number of storage drives supported |
1 |
| Storage drive size |
M.2 |
| Supported storage drive interfaces |
PCI Express 3.0 |
| Ports & interfaces |
|---|
| USB version |
USB 3.2 Gen 2x2 |
| USB connectivity |
Yes |
| USB connector type |
USB Type-C |
| USB connector gender |
Female |
| Technical details |
|---|
| Material |
Aluminum |
| LED indicators |
Yes |
| Data transfer rate |
20 Gbit/s |
| Product colour |
Silver |
| Chipset |
ASMedia 2364 |
| Cable length |
10.2" (0.258 m) |
| USB version |
USB 3.2 Gen 2x2 |
| Design |
|---|
| Product type |
SSD enclosure |
| Certification |
FCC, CE, RoHS |
| Material |
Aluminum |
| LED indicators |
Yes |
| Product colour |
Silver |
| Cable length |
10.2" (0.258 m) |
| Performance |
|---|
| UASP support |
Yes |
| Data transfer rate |
20 Gbit/s |
| Chipset |
ASMedia 2364 |
| Power |
|---|
| Power source type |
USB |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Weight & dimensions |
|---|
| Cable length |
10.2" (0.258 m) |

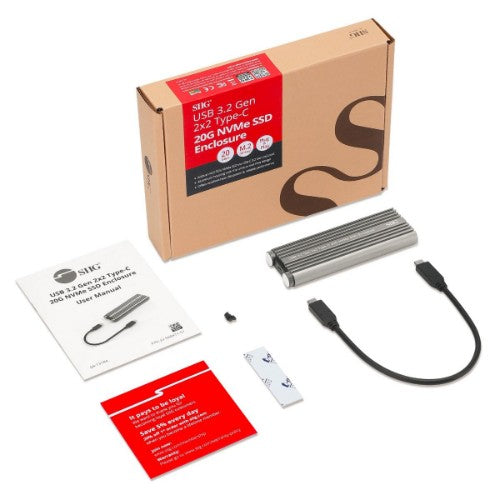

| Packaging content |
|---|
| Manual |
Yes |
| Package type |
Box |
| Cables included |
USB Type-C to USB Type-C |
