16kg Capacity, 30", 890x115x450mm, 3.4kg
Description

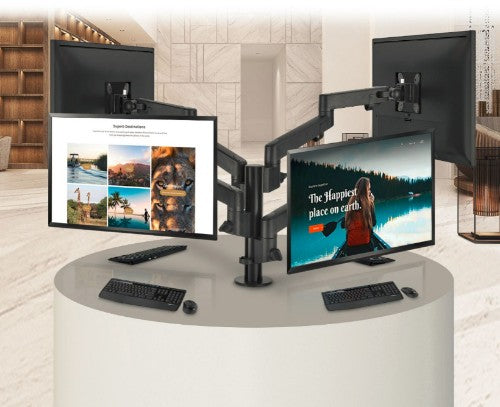

Single Pole Multi-Angle Articulating Replaceable Dual Arm Dual Monitor Desk MountHeavy duty multi-adjustable articulating arm dual monitor desk mount supports two 14-inch to 30-inch monitors weighing up to 17.6lbs each. Accommodates up to 4 monitors - additional monitor arms, part# CE-MT3G11-S1, sold separately
- Premium quality durable dual arm desktop mount provides smooth, precise and effortless viewing angle adjustments (tilt, swivel, pan, rotation, height) for perfect ergonomic position
- Supports monitors from 14" to 30" screen size (measured diagonally) and weighing up to 17.6 lbs (8 kg)
- Compatible with VESA mounting patterns 75x75, 100x100
- Quick release VESA mount for easy monitor installation and removal
- Height adjustment knob easily controls monitor arm height adjustment range from 9.6 to 17.7 inches
- Sturdy mounting pole accommodates up to 4 monitor arms. Additional monitor arms, part# CE-MT3G11-S1, sold separately

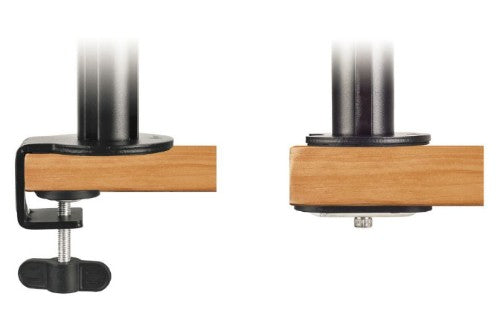

- Features both C-Clamp and Grommet style desk mounting options
Specifications
| Mounting |
|---|
| Maximum weight capacity (per display) |
17.6 lbs (8 kg) |
| Desk thickness (min) |
0.39" (9.9 mm) |
| Desk thickness (max) |
3.93" (9.98 cm) |
| Minimum screen size |
14" |
| Number of displays supported |
2 |
| Mounting type |
Desk |
| Minimum VESA mount |
2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Mounting |
Clamp/Bolt-through |
| Maximum weight capacity |
35.3 lbs (16 kg) |
| Maximum screen size |
30" |
| Ergonomics |
|---|
| Adjustable depth |
Yes |
| Height adjustment |
Yes |
| Height adjustment range |
9.6 - 17.7" (243.8 - 449.5 mm) |
| Swivel angle |
180° |
| Swivel angle range |
-90 - 90° |
| Tilt angle range |
-45 - 90° |
| Pan range |
-90 - 90° |
| Height adjustment type |
Manual |
| Tilt adjustment |
Yes |
| Technical details |
|---|
| Mounting type |
Desk |
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Housing material |
Aluminum, Nylon, Steel |
| Weight & dimensions |
|---|
| Width |
35" (890 mm) |
| Depth |
4.53" (115 mm) |
| Height |
17.7" (450 mm) |
| Weight |
7.5 lbs (3.4 kg) |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Manual |
Yes |
| Other features |
|---|
| Mounting type |
Desk |
| Mounting |
Clamp/Bolt-through |
