4-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing
Key Features
- Supports UHD resolutions up to true 4K @ 60 Hz (4:4:4) for crystal-clear video
- Carries High Dynamic Range (HDR) signals for expanded color accuracy
- Dual USB 3.0 hub ports let you share USB peripherals among connected computers
- Push buttons, hotkeys and included IR remote allow easy toggling between computers
- Works with all major operating systems, including Windows, macOS and Linux
Description
Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and MouseThis KVM switch lets you access, control, boot and reboot four computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and EasyUse the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Hub Lets You Share Peripherals Between ComputersTwo USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.
Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 ColorThe B005-HUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

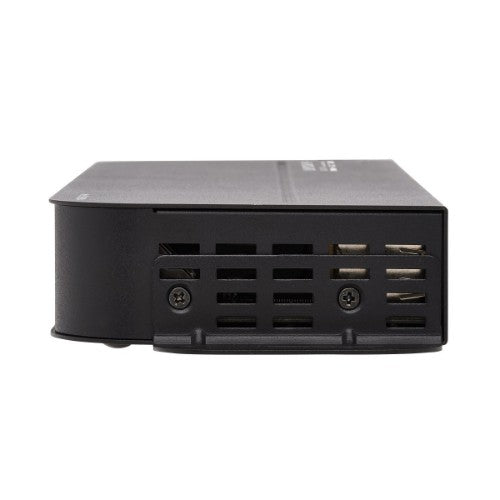

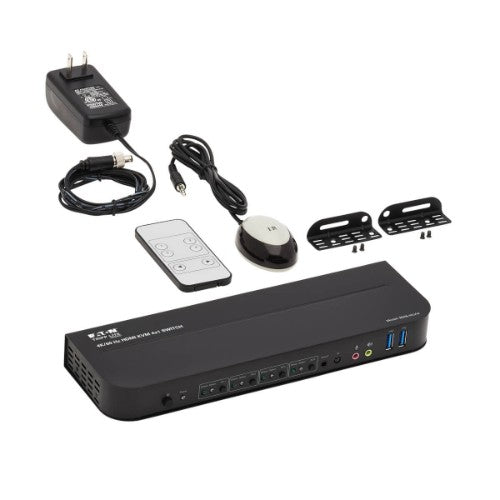

Designed for Convenient Mounting with Included BracketsThe heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. The plug-and-play B005-HUA4 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Number of microphone inputs |
6 |
| HDMI version |
2.0 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| Headphone outputs |
6 |
| HDMI ports quantity |
5 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| HDCP |
Yes |
| Performance |
|---|
| HDCP |
Yes |
| Auto scan delay (min) |
5 s |
| Auto scan delay (max) |
999 s |
| Data transfer rate (max) |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Plug and Play |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Number of users |
1 user(s) |
| Audio channels |
7.1 |
| Number of displays supported |
4 |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Plug and Play |
Yes |
| Push button |
Yes |
| Number of users |
1 user(s) |
| LED indicators |
Yes |
| Hot keys |
Yes |
| USB hub |
Yes |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC, REACH |
| Housing material |
Metal |
| Country of origin |
Vietnam |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Output current |
3 A |
| Compatible power plug types |
AU, EU, UK, US |
| Output voltage |
5 V |
| Power source |
AC |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
12.15 W |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Features |
|---|
| Country of origin |
Vietnam |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
9.57" (243.1 mm) |
| Depth |
2.95" (74.9 mm) |
| Height |
1.02" (25.9 mm) |
| Weight |
17.6 oz (500 g) |
| Package width |
11" (279.9 mm) |
| Package depth |
7.89" (200.4 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
24.7 oz (700 g) |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
11" (279.9 mm) |
| Package depth |
7.89" (200.4 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
24.7 oz (700 g) |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Package type |
Box |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Other features |
|---|
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Country of origin |
Vietnam |
| Master (outer) case width |
13.4" (340.1 mm) |
| Master (outer) case length |
11.8" (300 mm) |
| Master (outer) case height |
7.87" (199.9 mm) |
| Master (outer) case gross weight |
9.26 lbs (4.2 kg) |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332254907 |
| Harmonized System (HS) code |
85176200 |
