Tripp Lite B005-DPUA4 KVM switch Black

4-Port DisplayPort/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing

Key Features

• Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
• Carries High Dynamic Range (HDR) signals for expanded color accuracy
• Dual-mode DisplayPort (DP++) support allows connection of a local HDMI display
• Dual USB 3.0 hub ports let you share USB peripherals among connected computers
• Push buttons, hotkeys and included IR remote allow easy toggling between computers

Description

Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot four computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA4 supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: The included IR remote requires a battery in order to work. Please note: Mouse Traversal is a permanent feature and cannot be disabled

USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

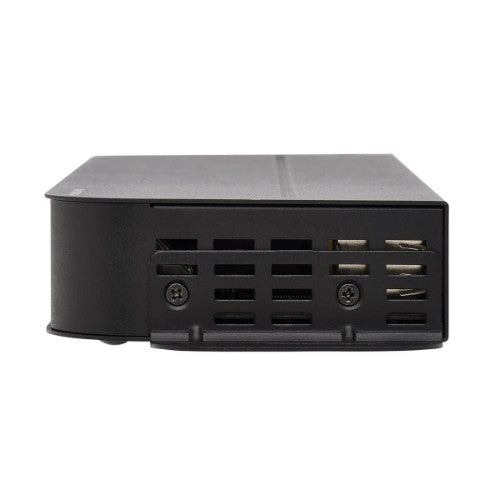

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Number of microphone inputs	6
DisplayPorts quantity	5
DisplayPort version	1.4
HDMI version	2.0
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
Audio connections	Yes
Headphone outputs	6
HDMI ports quantity	1
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
HDCP	Yes
Performance
HDCP	Yes
Auto scan delay (min)	5 s
Auto scan delay (max)	999 s
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Video bandwidth	60 Hz
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
Number of users	1 user(s)
Number of displays supported	4
Technical details
Product colour	Black
Rack mounting	No
Plug and Play	Yes
Push button	Yes
On Screen Display (OSD)	No
Number of users	1 user(s)
LED indicators	Yes
Hot keys	Yes
USB hub	Yes
Compliance certificates	RoHS
Design
Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, REACH
Housing material	Metal
Country of origin	Vietnam
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	0.6 A
Output current	3 A
Compatible power plug types	AU, EU, UK, US
Output voltage	5 V
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	11.75 W
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Features
Country of origin	Vietnam
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	9.57" (243.1 mm)
Depth	2.95" (74.9 mm)
Height	1.02" (25.9 mm)
Weight	17.6 oz (500 g)
Package width	9.06" (230.1 mm)
Package depth	7.89" (200.4 mm)
Package height	2.56" (65 mm)
Package weight	19.4 oz (550 g)
Packaging data
Package type	Box
Package width	9.06" (230.1 mm)
Package depth	7.89" (200.4 mm)
Package height	2.56" (65 mm)
Package weight	19.4 oz (550 g)
Packaging content
Manual	Yes
AC adapter included	Yes
Package type	Box
Certificates
Certification	CE, FCC, REACH
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Country of origin	Vietnam
Master (outer) case width	13.4" (340.1 mm)
Master (outer) case length	9.84" (249.9 mm)
Master (outer) case height	7.87" (199.9 mm)
Master (outer) case gross weight	7.72 lbs (3.5 kg)
Products per master (outer) case	5 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332255027
Harmonized System (HS) code	85176200
