StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C (IESC1G50UP)
Key Features
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6

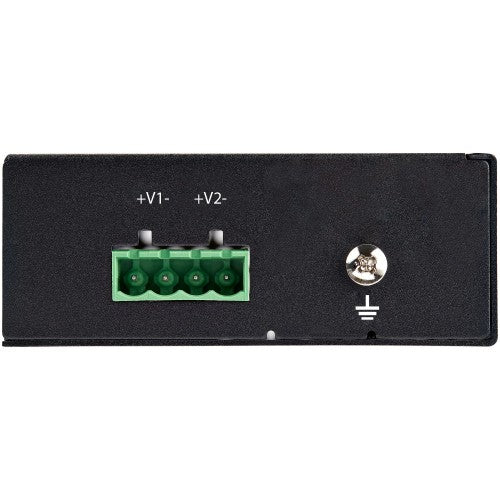

- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C
- Vibration, shock & free fall rated
- Rugged industrial IP-30 aluminum housing
Description
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
Cameras
Sensors
Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
Operating Temperature Range: -40 C to 75 C
IP-30 rated housing
Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.
A Flexible & Easy-to-Deploy Solution
Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
The StarTech.com Advantage
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
Specifications
| Ports & interfaces |
|---|
| Terminal block port |
Yes |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Technical details |
|---|
| Product colour |
Black |
| Mean time between failures (MTBF) |
538451 h |
| Housing material |
Steel |
| Rack mounting |
No |
| Management features |
|---|
| Switch type |
Unmanaged |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Protocols |
|---|
| Supported network protocols |
CSMA/CD |
| Certificates |
|---|
| Safety |
EN60950-1 |
| Certification |
CE, FCC, RoHS, UL |
| Design |
|---|
| Wall mountable |
Yes |
| International Protection (IP) code |
IP30 |
| DIN rail mounting |
Yes |
| Safety |
EN60950-1 |
| Product colour |
Black |
| LED indicators |
Yes |
| Housing material |
Steel |
| Certification |
CE, FCC, RoHS, UL |
| Rack mounting |
No |
| Performance |
|---|
| Maximum cable length |
3937" (100 m) |
| Mean time between failures (MTBF) |
538451 h |
| Harmonized System (HS) code |
85176990 |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Power plug type |
Type N |
| Surge protection voltage |
2 kV |
| DC input voltage |
48 - 56 V |
| Surge protection |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
5 |
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 75 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
3.21" (81.5 mm) |
| Depth |
4.09" (104 mm) |
| Height |
1.26" (32 mm) |
| Weight |
5.31 oz (150.6 g) |
| Packaging data |
|---|
| Terminal block included |
Yes |
| Quick start guide |
Yes |
| Package width |
8.31" (211 mm) |
| Package depth |
6.38" (162 mm) |
| Package height |
2.52" (64 mm) |
| Package weight |
13.8 oz (392.6 g) |
| Logistics data |
|---|
| Master (outer) case width |
14" (355 mm) |
| Master (outer) case length |
13.6" (345 mm) |
| Master (outer) case height |
8.86" (225 mm) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Terminal block port |
Yes |
| Packaging content |
|---|
| Terminal block included |
Yes |
| Quick start guide |
Yes |
