StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C (IMC1GSFP)
Key Features
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
- ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing
- TECH SPECS: 10/100/1000 Mbps / 12V-56VDC / Single Mode SMF & Multi-Mode MMF Fiber / 16K Jumbo Frames / LFP / IP-30 Housing / DIN or Wall Mountable / Terminal Block and/or Barrel Adapter for power redundancy
Description
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements

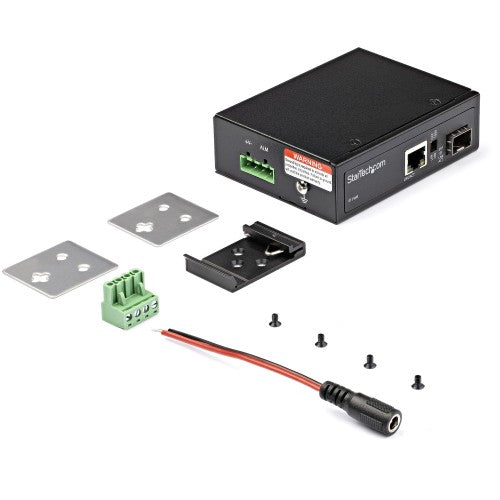

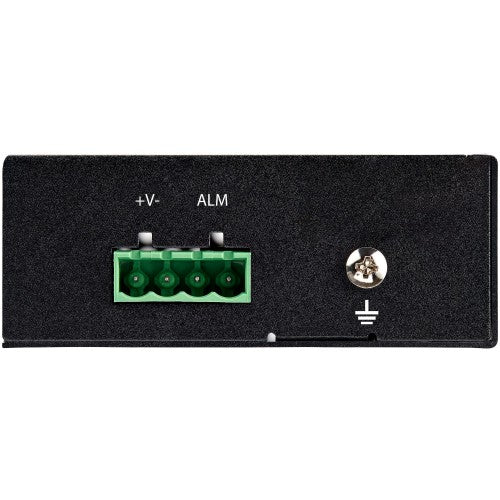

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Network |
|---|
| Fiber optic connector |
SFP |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Cable types supported |
Cat6 |
| Networking standards |
IEEE 802.3, IEEE 802.3x |
| Duplex system |
Full |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| International Protection (IP) code |
IP30 |
| Housing material |
Aluminum |
| Fiber mode structure |
Multi-mode, Single-mode |
| Internal |
No |
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
CE, RoHS |
| Performance |
|---|
| Jumbo frames support |
Yes |
| Fiber mode structure |
Multi-mode, Single-mode |
| Mean time between failures (MTBF) |
569265 h |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |
| Indication |
|---|
| LED indicators |
Yes |
| Design |
|---|
| DIN rail mounting |
Yes |
| International Protection (IP) code |
IP30 |
| Housing material |
Aluminum |
| LED indicators |
Yes |
| Product colour |
Black |
| Internal |
No |
| Endurance |
|---|
| Mean time between failures (MTBF) |
569265 h |
| Power |
|---|
| Power plug type |
Type N |
| Power over Ethernet (PoE) |
No |
| Input voltage |
12 - 56 V |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
3.21" (81.5 mm) |
| Depth |
4.09" (104 mm) |
| Weight |
5.08 oz (144 g) |
| Height |
1.26" (32 mm) |
| Package depth |
6.38" (162 mm) |
| Package width |
8.31" (211 mm) |
| Package height |
2.52" (64 mm) |
| Package weight |
13.6 oz (386 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging data |
|---|
| Package depth |
6.38" (162 mm) |
| Package width |
8.31" (211 mm) |
| Package height |
2.52" (64 mm) |
| Package weight |
13.6 oz (386 g) |
| Packaging content |
|---|
| User guide |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
14" (355 mm) |
| Master (outer) case length |
13.6" (345 mm) |
| Master (outer) case height |
8.86" (225 mm) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
85176990 |
