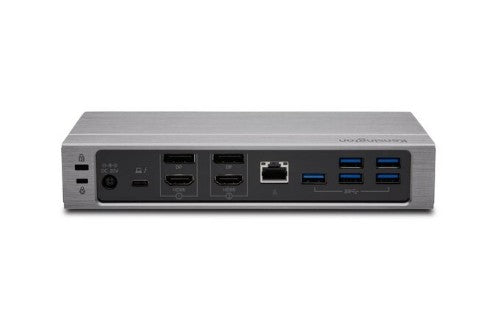

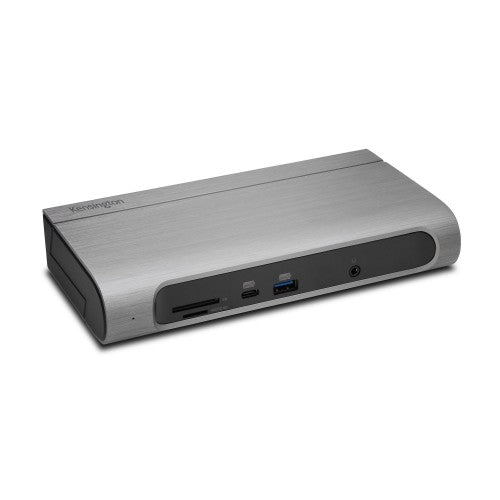

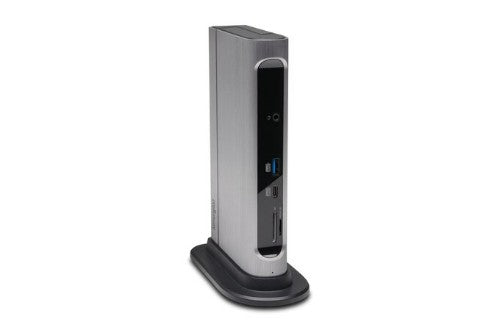

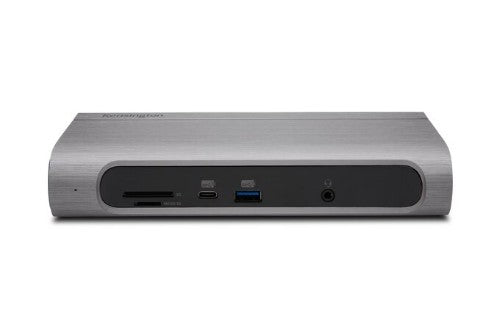

Kensington SD5600T Thunderbolt™ 3 and USB-C Dual 4K Hybrid Docking Station - 100W PD – Win/Mac, Wired, Thunderbolt 3, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black, Silver
Key Features
- Best for: Thunderbolt 3 and USB-C laptops and monitors that support up to dual 4K
- Connection technology: Thunderbolt 3 and USB-C (cross platform compatibility)
- Power Delivery: Supports USB-C PD 3.0 up to 100W (96W certified)
- Compatibility: Windows 10 or above, macOS 10.14 or above
- No. of monitors supported: 2
- Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2
- Maximum resolution supported: Thunderbolt 3 – single or dual monitors: 4K (3840 x 2160 @ 60Hz) // USB-C Alt Mode HBR3 – single monitor: 4K @ 60Hz or dual monitors: 1440p @ 60Hz // USB-C Alt Mode HBR2 – single monitor: 4K @ 30Hz or dual monitors: 1080p @ 60Hz
- Plug & play: Plug & play installation, though installation of Kensington DockWorks™ software is recommended for the best connection, performance and security from your Kensington universal docking station
- System requirements: Compatible with laptops equipped with Thunderbolt 3 and USB-C ports supporting Alt Mode. Supports up to 40Gbps total bandwidth for Thunderbolt 3 laptops, and up to 10Gbps for USB-C laptops
- Warranty: 3 Years
- Original Apple M1 - While this docking station will work with the original M1 MacBook, only a single video output is supported. For multi-monitor support on your original M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (ex: SD4700P, SD4750P, SD4780P, SD4900P, etc.) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974). NOTE: Newer Apple devices (M1 Max and M1 Pro, etc.) are not impacted and support multiple monitors without any issues on Thunderbolt docking stations
- Optimised for your Windows 11 docking station needs, including support for Snap Layouts and Snap Groups
Description
Kensington SD5600T Thunderbolt™ 3 and USB-C Dual 4K Hybrid Docking Station - 100W PD – Win/Mac. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Black, Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 40 Gbit/s. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 1.8 A. Width: 7.76" (197 mm), Depth: 4.09" (104 mm), Height: 1.45" (36.8 mm)
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Host interface |
Thunderbolt 3 |
| Ethernet LAN (RJ-45) ports |
1 |
| Audio output |
3.5 mm |
| HDMI ports quantity |
2 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| DisplayPort version |
1.2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Country of origin |
Thailand |
| Product colour |
Black, Silver |
| Card reader integrated |
Yes |
| Brand compatibility |
Universal |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Data transfer rate |
40 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Certification |
FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL |
| Cable lock slot type |
Kensington |
| HD type |
4K Ultra HD |
| VESA mounting |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminum, Metal, Polycarbonate (PC) |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Brand compatibility |
Universal |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Data transfer rate |
40 Gbit/s |
| User guide |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Power |
|---|
| Power source type |
DC |
| Input current |
1.8 A |
| Power consumption (max) |
170 W |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
8.5 A |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
29.5 oz (835 g) |
| Width |
7.76" (197 mm) |
| Depth |
4.09" (104 mm) |
| Height |
1.45" (36.8 mm) |
| Package weight |
3.84 lbs (1.74 kg) |
| Package width |
9.96" (253 mm) |
| Package depth |
5.98" (152 mm) |
| Package height |
3.58" (91 mm) |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Country of origin |
Thailand |
| Product colour |
Black, Silver |
| Cable lock slot |
Yes |
| Certification |
FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
3.84 lbs (1.74 kg) |
| Package width |
9.96" (253 mm) |
| Package depth |
5.98" (152 mm) |
| Package height |
3.58" (91 mm) |
| Packaging content |
|---|
| Stand included |
Yes |
| User guide |
Yes |
| AC adapter included |
Yes |
| Warranty card |
Yes |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL |
