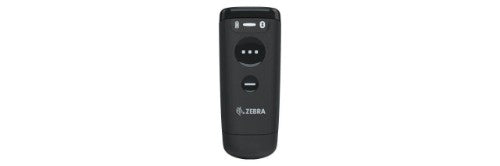

Cordless CS60 Companion Scanner, Circular 525nm true green LED, 1280 x 960 pixels, Bluetooth 5.0 BLE
Description
ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN
The ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.
ADAPTS TO ANY WORKFLOW
As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.
EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| Yaw reading angle |
0 - 360° |
| Wavelength |
525 nm |
| Tilt reading angle |
-60 - 60° |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Pitch reading angle |
-60 - 60° |
| Light levels (direct sunlight) |
0 - 108000 lx |
| Optical sensor resolution (W x H) |
1280 x 960 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Wireless range |
3937" (100 m) |
| Bluetooth version |
5.0 |
| Bluetooth Low Energy (BLE) |
Yes |
| Standard interfaces |
Bluetooth, USB |
| Performance |
|---|
| LED indicators |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Light levels (direct sunlight) |
0 - 108000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Power |
|---|
| Power consumption |
400 mA |
| Power source type |
AC, Battery, DC, USB |
| Charging time |
6 h |
| Battery life |
18 h |
| Number of reads per charge |
13000 |
| Battery type |
Built-in battery |
| Battery technology |
Lithium Polymer (LiPo) |
| Battery capacity |
735 mAh |
| Weight & dimensions |
|---|
| Width |
1.81" (46 mm) |
| Depth |
4.29" (109 mm) |
| Height |
0.906" (23 mm) |
| Weight |
2.93 oz (83 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Light levels (direct sunlight) |
0 - 108000 lx |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
