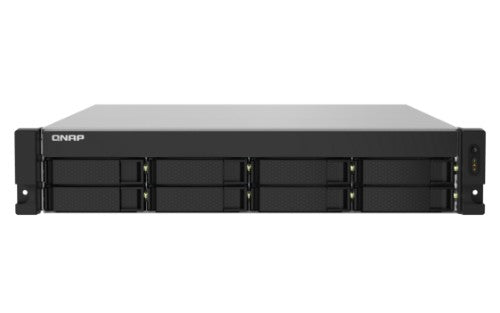

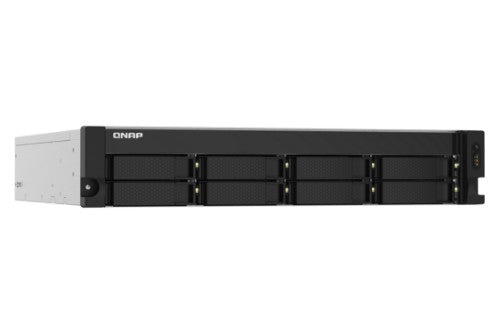

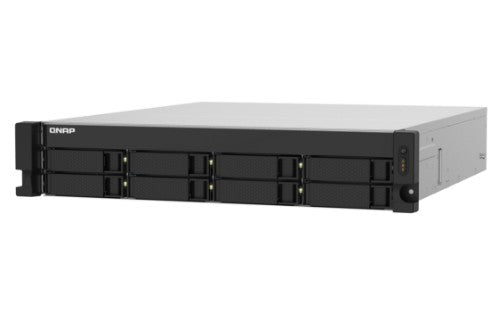

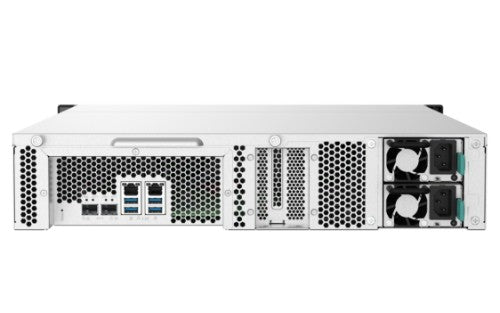

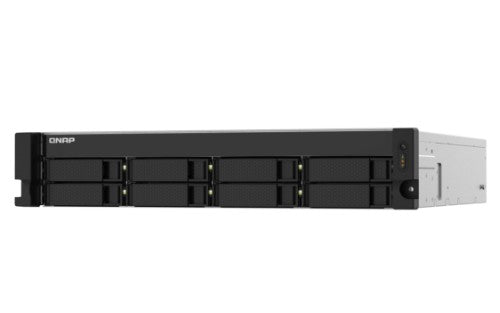

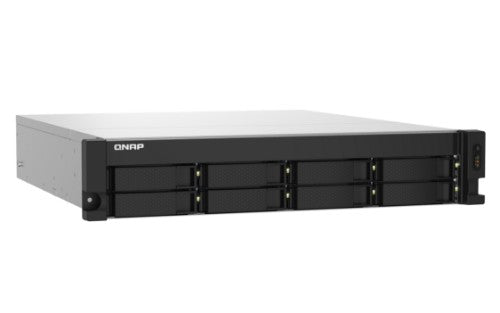

QNAP TS-832PXU-RP NAS Rack (2U) Annapurna Labs AL324 4 GB DDR4 QNAP Turbo System Aluminum, Black
Save -12%
Description
AnnapurnaLabs Alpine AL324 (1.7GHz), 4GB DDR4, 10GbE LAN
Higher performance x faster throughput
The TS-832PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-832PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.
Photo management
QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.
Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.
Secure Google G Suite™ and Microsoft 365® backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite™ and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite™ and Microsoft 365® to provide an extra layer of data protection for business cloud data.
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Flexibly expand storage capacity whenever needed
The storage capacity of the TS-832PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PXU-RP can also be used to expand the storage space of other QNAP NAS.
PCIe expandability for greater application potential
The TS-832PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.
Network Adapter
Add additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.
QM2 Card
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
USB Card
Add QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.
Redundant power for dependable services
The TS-832PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.
Key Features
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
- HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
- Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ G Suite and Microsoft 365®
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
- Expand the application potential of the TS-832PXU-RP by installing a compatible PCIe card
- Increase the storage capacity of the TS-832PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD
Description
With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PXU-RP supports file backup and synchronization, secure snapshot protection, and Google G Suite™ and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-832PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.Higher performance x faster throughput
The TS-832PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-832PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.
Photo management
QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.
Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.
Secure Google G Suite™ and Microsoft 365® backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite™ and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite™ and Microsoft 365® to provide an extra layer of data protection for business cloud data.
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Flexibly expand storage capacity whenever needed
The storage capacity of the TS-832PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PXU-RP can also be used to expand the storage space of other QNAP NAS.
PCIe expandability for greater application potential
The TS-832PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.
Network Adapter
Add additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.
QM2 Card
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
USB Card
Add QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.
Redundant power for dependable services
The TS-832PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.
Specifications
| Storage | |
|---|---|
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Disk roaming | Yes |
| Bad block scan | Yes |
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 8 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5+S, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID rebuild | Yes |
| Processor | |
| Processor manufacturer | Annapurna Labs |
| Processor frequency | 1.7 GHz |
| Processor family | Annapurna Labs |
| Processor model | AL324 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Maximum RAM supported | 16 GB |
| Memory slots | 1 |
| Flash memory | 512 MB |
| Memory form factor | DIMM |
| Network | |
| Load balancing system | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| WLAN adapter supported | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 2 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5+S, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 2.76" (7 cm) |
| Product colour | Aluminum, Black |
| Number of fans | 2 fan(s) |
| LED indicators | HDD, LAN, Status |
| Chassis type | Rack (2U) |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Product colour | Aluminum, Black |
| Noise level | 30.6 dB |
| LED indicators | HDD, LAN, Status |
| Chassis type | Rack (2U) |
| Buzzer | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| S.M.A.R.T. support | Yes |
| Hot spare | Yes |
| Browser supported | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| Universal Plug and Play (UPnP) | Yes |
| Built-in BitTorrent client | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | CentOS 7.0, Solaris 10 U4, Solaris 10 U5, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH |
| Reset button | Yes |
| Operating system version | 4.4.3 |
| Operating system installed | QNAP Turbo System |
| Noise level | 30.6 dB |
| Management protocols | SNMP |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 2.76" (7 cm) |
| Fan voltage | 12 V |
| Number of fans | 2 fan(s) |
| Security | |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | CentOS 7.0, Solaris 10 U4, Solaris 10 U5, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
| Operating system version | 4.4.3 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Management protocols | SNMP |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Fan voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 69.191 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 19" (482 mm) |
| Depth | 21" (534 mm) |
| Height | 3.5" (89 mm) |
| Weight | 24 lbs (10.9 kg) |
| Package weight | 37.3 lbs (16.9 kg) |
| Packaging content | |
| Number of screws | 56 |
| Cables included | AC, LAN (RJ-45) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Linux operating systems supported | CentOS 7.0, Solaris 10 U4, Solaris 10 U5, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 37.3 lbs (16.9 kg) |
| Cables included | AC, LAN (RJ-45) |
