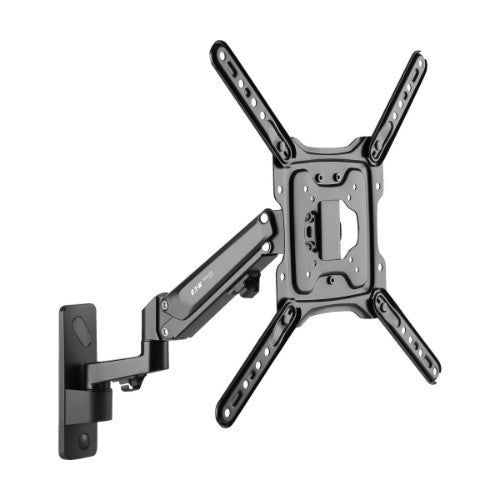

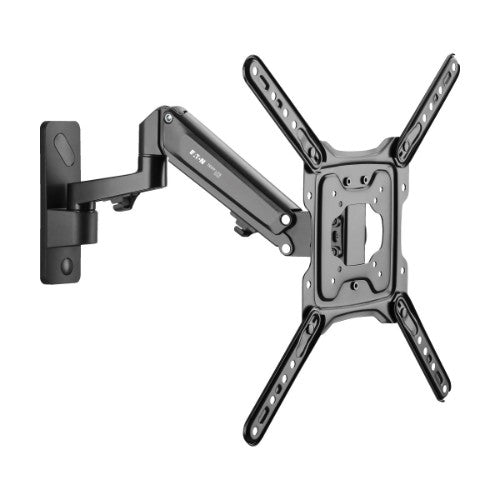

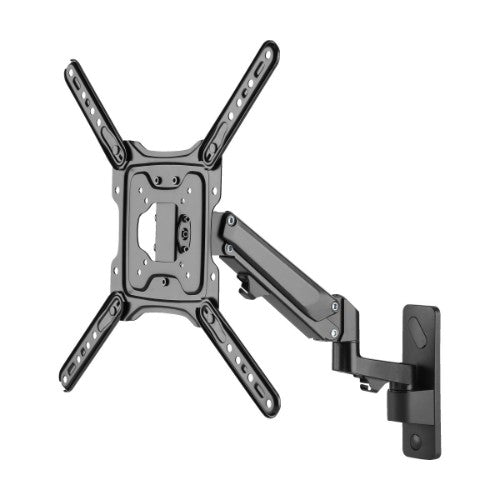

Full-Motion TV Wall Mount with Fully Articulating Arm for 23” to 55” Flat-Screen Displays
Key Features
- TV wall mount with articulating gas-spring arm adjusts easily with just a single touch
- -15° to +5° tilt and -90° to +90° swivel helps you find the perfect angle to avoid glare
- Durable steel construction blends into any décor and supports up to 51 lbs (23.1 kgs)
- Display cables attach to arm to reduce clutter and keep cords organized
- VESA compliance ensures compatibility with most popular mounting hole patterns
Description

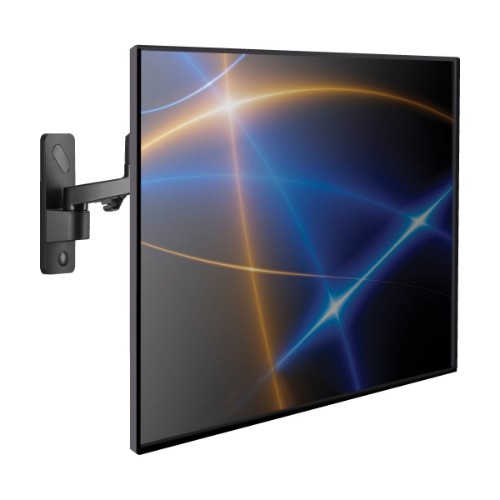

Mounts Your TV or Monitor to the WallFits most flat-panel televisions, monitors and other displays from 23 to 55 in.
Ideal for home theaters, offices, classrooms, boardrooms, hotels, bars and restaurants

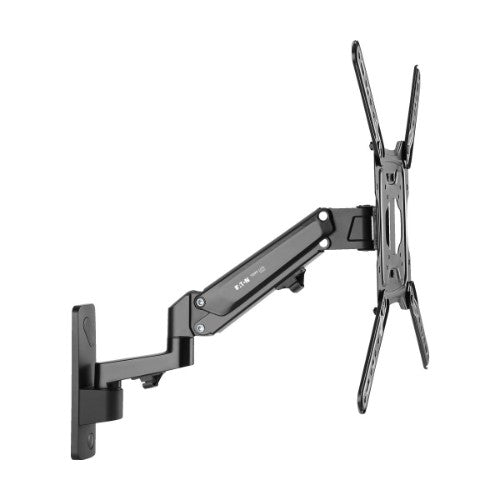

Full-motion articulating arm adjusts independently for angle and height
Mounting hardware included
Mounts on wood or concrete block
Convenient One-Touch Adjustment180° swivel and -15° to 15° tilt capability provides comfortable viewing from multiple angles
Durable Metal ConstructionSupports up to 51 lbs (23.1 kgs)
Soft rubber-feel finish tolerates frequent handling and blends with any décor

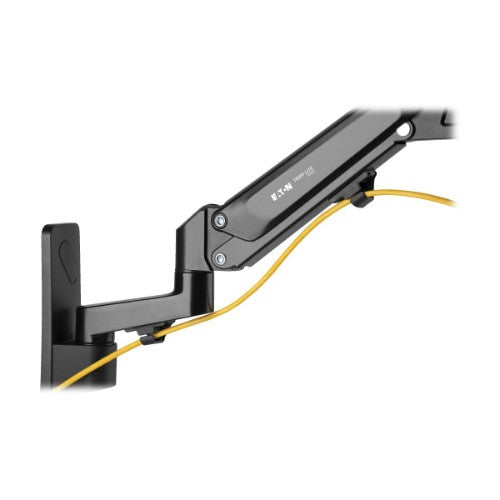

Display cables tuck inside articulating arm to prevent clutter
VESA ComplianceConforms with VESA-compliant universal mounting hole patterns
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
23" |
| Panel mounting interface |
75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300 |
| Number of displays supported |
1 |
| Minimum VESA mount |
2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount |
15.7 x 15.7" (400 x 400 mm) |
| Maximum screen size |
55" |
| Maximum weight capacity |
50.7 lbs (23 kg) |
| Suitable for computer monitor |
Yes |
| Ergonomics |
|---|
| Cable management |
Yes |
| Tilt angle range |
-15 - 15° |
| Swivel angle |
180° |
| Distance to the wall (max) |
12.7" (32.3 cm) |
| Tilt adjustment |
Yes |
| Technical details |
|---|
| Cable management |
Yes |
| Number of displays supported |
1 |
| Distance to the wall (max) |
12.7" (32.3 cm) |
| Product colour |
Black |
| Mounting type |
Wall |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Design |
|---|
| Cable management |
Yes |
| Certification |
REACH, CE |
| Product colour |
Black |
| Housing material |
Steel |
| Certificates |
|---|
| Certification |
REACH, CE |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Manual |
Yes |
| Screw nuts included |
Yes |
| Number of wrenches included |
1 |
| Number of screw nuts |
4 |
| Number of hex keys included |
2 |
| Number of bolts |
4 |
| Mounting plate included |
Yes |
| Hex key included |
Yes |
| Bolts included |
Yes |
| Weight & dimensions |
|---|
| Width |
18.1" (459.7 mm) |
| Depth |
17.9" (454.7 mm) |
| Height |
17.1" (434.3 mm) |
| Weight |
7.1 lbs (3.22 kg) |
| Depth (max) |
24.9" (63.2 cm) |
| Packaging data |
|---|
| Package width |
13.7" (348 mm) |
| Package depth |
3.3" (83.8 mm) |
| Package height |
17.3" (439.4 mm) |
| Package weight |
8.91 lbs (4.04 kg) |
| Mounting kit |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
14.6" (370.8 mm) |
| Master (outer) case length |
17.9" (454.7 mm) |
| Master (outer) case height |
18.1" (459.7 mm) |
| Master (outer) case gross weight |
46.5 lbs (21.1 kg) |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332258776 |
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
| Country of origin |
China |
