StarTech.com USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz - 85W Power Delivery, 6x USB Hub, GbE, Audio - USB 3.1 Gen 2 10Gbps (DK31C3HDPD)
Key Features
- FLEXIBLE MULTI DISPLAY SETUP: USB 3.2 Gen 2 10Gbps Type-C/A dock supports dual or triple monitor setup (up to 3x 4K 60Hz), using any combination of the 3x DisplayPort 1.4 & 3x HDMI 2.0
- 85W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops/ultrabooks incl Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, ZBook
- UNIVERSAL DISPLAYLINK DOCKING STATION: Hybrid dock incl. combo 2-in-1 USB-C/USB-A USB-IF Certified host cable; Supports up to 3 extended displays on MacBook Pro/Air w/ Intel, M1, or M1 Pro/Max, Windows, macOS and Chrome OS
- 6-PORT USB HUB: 4x USB-A (1x 10Gbps), 2x USB-C (1x 10Gbps), incl. 2x BC 1.2 fast charge always-on front ports; USB-C Gen 1 & USB-A laptops will only support downstream port speeds up to USB 5Gbps
- DEPLOYMENT READY: Docking station features a K-slot, 1m combo host cable; Gigabit Ethernet & headset ports; Windows, MacOS, Chrome OS; Mounting holes for mounting plates SSPMSUDWM/SSPMSVESA
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
Description
USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | DisplayPort | 85W Power Delivery
This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery.

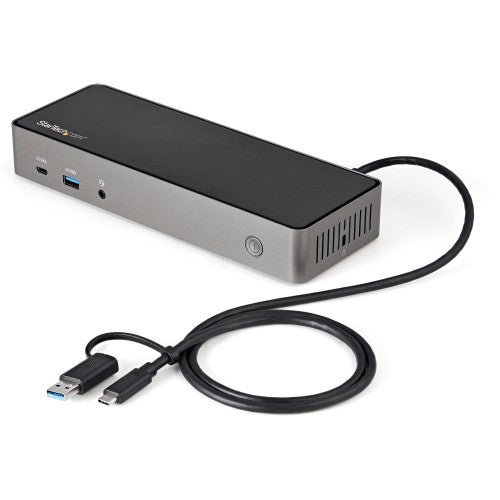

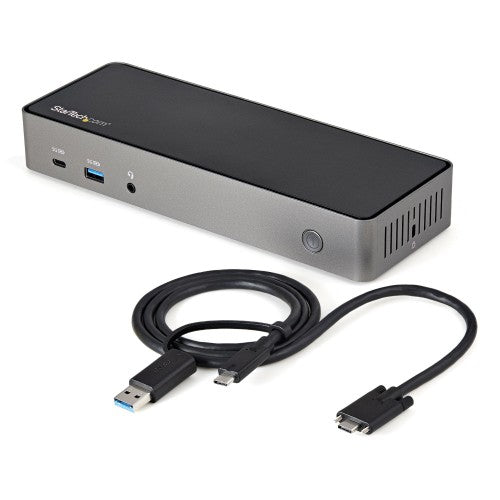

Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included and replacement or extra host cables can be purchased separately here.

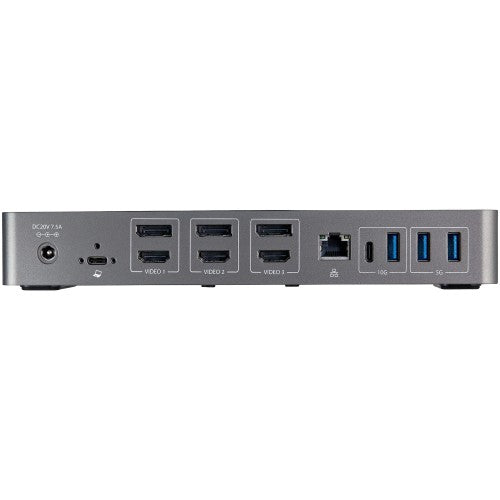

HDMI & DisplayPort for Triple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.
Host
Display Output
USB-C Gen 1 or 2 (with DP 1.4)
Triple Display - 3x 4K 60Hz
Thunderbolt 3 (DP 1.4 Supported)
Triple Display - 3x 4K 60Hz
USB-C Gen 1 (with DP 1.2)
Triple Display - 2x 4K 60Hz; 1x 4K 30Hz
USB-A or USB-C (No DP Alt Mode)
Dual Display - 2x 4K 60Hz
Power & Charge with 85W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD

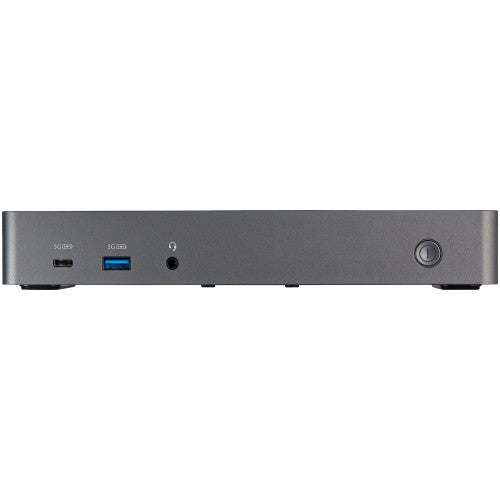

Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
• 1x USB-C 3.2 Gen 2 (10 Gbps)
• 1x USB-A 3.2 Gen 2 (10 Gbps)
• 1x USB-C 3.2 Gen 1 (5 Gbps)
• 3x USB-A 3.2 Gen 1 (5 Gbps)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features

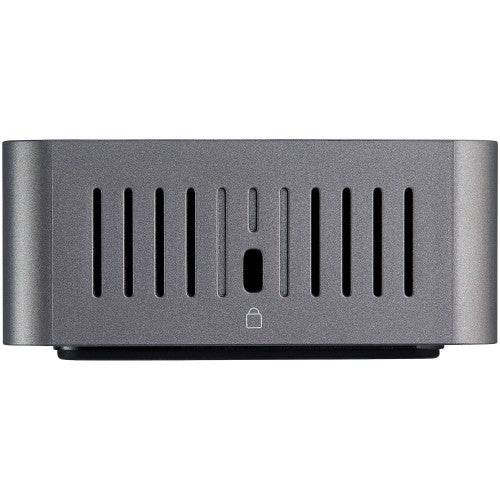

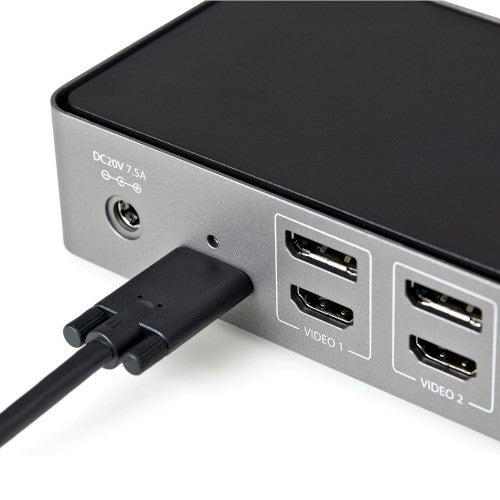

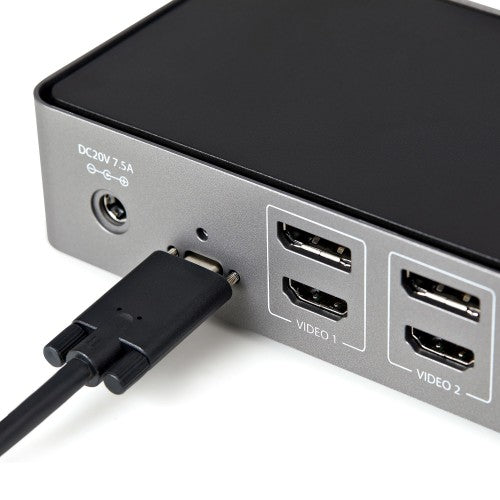

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.
For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
3 |
| DisplayPorts quantity |
3 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
85 W |
| Network |
|---|
| Full duplex |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
3840 x 2160 pixels |
| Full duplex |
Yes |
| Product colour |
Black, Gray |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Data transfer rate |
10 Gbit/s |
| Cable lock slot type |
Kensington |
| HD type |
4K Ultra HD |
| Housing material |
Aluminum, Duralumin |
| Technical details |
|---|
| Product colour |
Black, Gray |
| Cable lock slot |
Yes |
| Data transfer rate |
10 Gbit/s |
| Cable length |
39.4" (1 m) |
| Compliance certificates |
RoHS |
| User guide |
Yes |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
12.4" (315 mm) |
| Master (outer) case length |
15.6" (395 mm) |
| Master (outer) case height |
11.8" (300 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
AC |
| Input current |
2.5 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, JP, US |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
7.5 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 13.0 Ventura |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Weight |
12.9 oz (365 g) |
| Width |
3.31" (84 mm) |
| Depth |
9.17" (233 mm) |
| Height |
1.46" (37 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Package width |
6.77" (172 mm) |
| Package depth |
9.96" (253 mm) |
| Package height |
3.58" (91 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 13.0 Ventura |
| Product colour |
Black, Gray |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Package weight |
3.75 lbs (1.7 kg) |
| Package width |
6.77" (172 mm) |
| Package depth |
9.96" (253 mm) |
| Package height |
3.58" (91 mm) |
| Packaging content |
|---|
| Interface adapters included |
USB Type-A male - USB Type-C female |
| User guide |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
12.4" (315 mm) |
| Master (outer) case length |
15.6" (395 mm) |
| Master (outer) case height |
11.8" (300 mm) |
| Other features |
|---|
| Chipset |
Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950 |
| Cable length |
39.4" (1 m) |
