16 x Gigabit LAN (8 x PoE), Layer 2, 16 Gbps, 1.2 kg, White
Key Features
- (16) Gigabit RJ45 ports including (8) 802.3at PoE+
- Managed by UniFi Controller
- 60W power supply

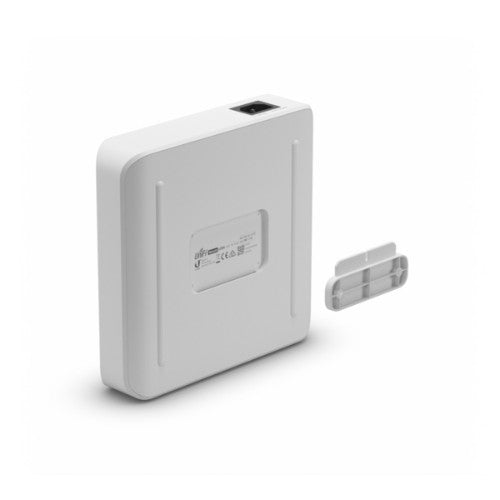

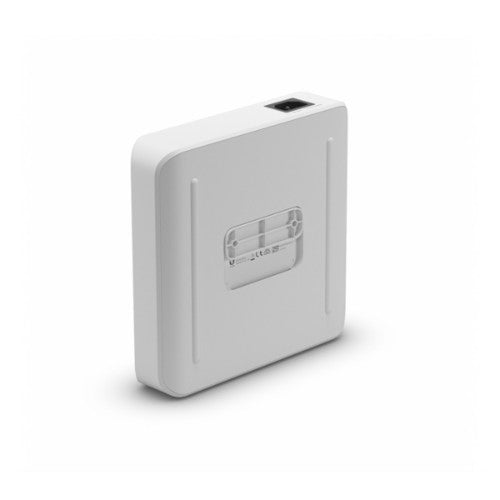

- Wall-mountable (Kit included)
Description

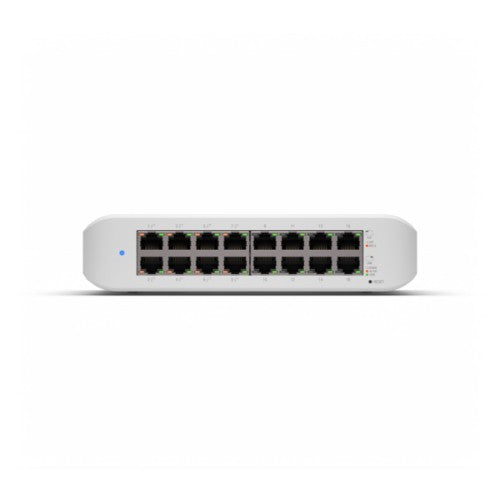

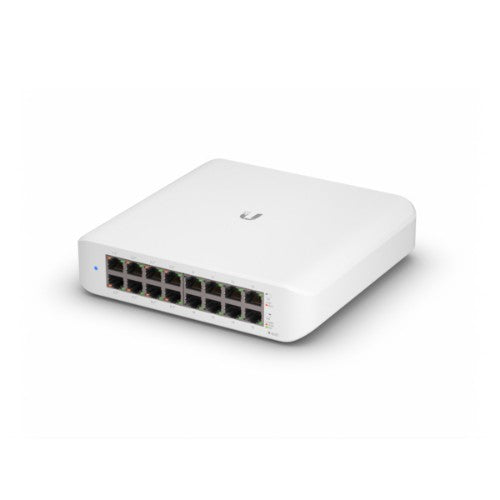

The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |

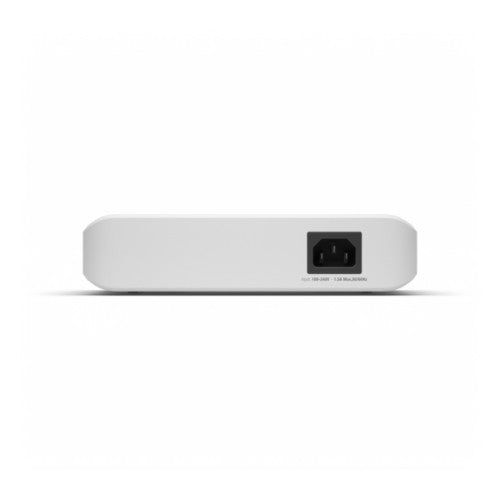

| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| 10G support |
No |
| Data transmission |
|---|
| Switching capacity |
16 Gbit/s |
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
White |
| LED indicators |
Network, PoE, System |
| Certification |
CE, FCC, IC |
| Power |
|---|
| Power consumption (max) |
15 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
1 |
| Power connector |
AC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
7.55" (191.7 mm) |
| Depth |
7.28" (185 mm) |
| Height |
1.72" (43.7 mm) |
| Weight |
2.65 lbs (1.2 kg) |
| Technical details |
|---|
| Product colour |
White |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Indication |
|---|
| LED indicators |
Network, PoE, System |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
