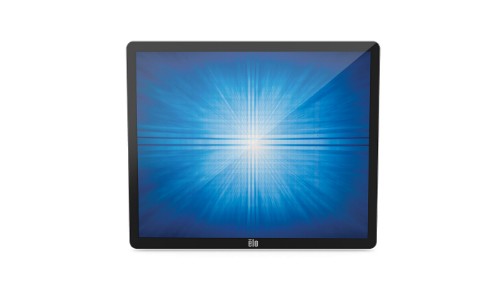

1902L, 19'', TFT LCD (LED), 1280x1024, 5:4, VGA, HDMI, USB, 100-240VAC, 50/60Hz, 354.6x429.6x41.6 mm
Description
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You.
One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Specifications
| Display |
|---|
| Display number of colours |
16.78 million colors |
| Number of simultaneous touchpoints |
10 |
| Touchscreen |
Yes |
| Display technology |
LED |
| Display diagonal |
19" |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
225 cd/m² |
| HD type |
HD |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Vertical scan range |
50 - 75 Hz |
| Supported graphics resolutions |
640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA) |
| Native aspect ratio |
5:4 |
| Horizontal scan range |
30 - 82 kHz |
| Maximum refresh rate |
70 Hz |
| Touchscreen technology |
Projected capacitive system |
| Ports & interfaces |
|---|
| DisplayPorts quantity |
0 |
| HDMI ports quantity |
1 |
| Micro-USB ports quantity |
4 |
| Design |
|---|
| Product colour |
Black |
| Certification |
CUL, IC, CCC, CE, KCC, BSMI, FCC, UL, VCCI, CB, RCM, EAC, CoC, BIS |
| Screen shape |
Flat |
| Wall mountable |
Yes |
| Performance |
|---|
| International Protection (IP) code |
IPX1 |
| Mean time between failures (MTBF) |
50000 h |
| Power |
|---|
| Power consumption (off) |
0.4 W |
| Power consumption (typical) |
18 W |
| Power consumption (standby) |
0.8 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
E |
| Energy consumption (SDR) per 1000 hours |
11 kWh |
| Packaging data |
|---|
| Package width |
19" (482 mm) |
| Package depth |
7.48" (190 mm) |
| Package height |
20.7" (527 mm) |
| Package weight |
14.3 lbs (6.5 kg) |
| Quick start guide |
Yes |
| Cables included |
Audio (3.5mm), HDMI, USB, VGA |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
Audio (3.5mm), HDMI, USB, VGA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Certificates |
|---|
| Certification |
CUL, IC, CCC, CE, KCC, BSMI, FCC, UL, VCCI, CB, RCM, EAC, CoC, BIS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Features |
|---|
| Harmonized System (HS) code |
85285210 |
| Wall mountable |
Yes |
| Technical details |
|---|
| Power supply type |
AC/DC |
| Depth (without stand) |
1.64" (41.6 mm) |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
9.48 lbs (4.3 kg) |
| Height (without stand) |
16.9" (429.6 mm) |
| Display viewable area (HxV) |
14.8 x 11.8" (374.8 x 299.8 mm) |
| Other features |
|---|
| Power supply type |
AC/DC |
| Depth (without stand) |
1.64" (41.6 mm) |
| Number of simultaneous touchpoints |
10 |
| Weight (without stand) |
9.48 lbs (4.3 kg) |
| Height (without stand) |
16.9" (429.6 mm) |
| Display viewable area (HxV) |
14.8 x 11.8" (374.8 x 299.8 mm) |
| Quick start guide |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Display technology |
LED |
| Built-in microphone |
No |
| Built-in camera |
No |
| Maximum refresh rate |
70 Hz |
| Energy efficiency scale |
A to G |
| Micro-USB ports quantity |
4 |
