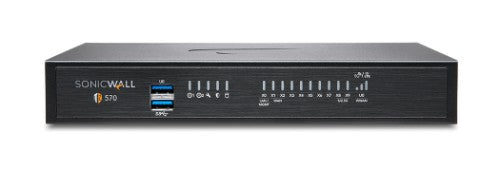

SonicWall Tz570 hardware firewall Desktop 4 Gbit/s

TZ570, Advanced Edition, security appliance, GigE, 5 GigE, SonicWALL Secure Upgrade Plus Program (2 years option) - desktop

Description

TZ SERIES
NEXT-GENERATION FIREWALL (NGFW)

Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.

In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.

The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.

With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.

Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.

Specifications

Technical details
Form factor	Desktop
Heat dissipation	57.17 BTU/h
Data transmission
Firewall throughput	4000 Mbit/s
IPS/IDS throughput	2500 Mbit/s
Maximum firewall connections per second	16000
SSL inspection throughput	750 Mbit/s
IPSec VPN throughput	1.8 Gbit/s
Maximum connections (DPI)	400000
Maximum connections (SPI)	1250000
Firewall throughput	4 Gbit/s
Performance
Certification	FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/IC, CE (RED, RoHS),C-Tick, VCCI Class B, Japan Wireless, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL
Heat dissipation	57.17 BTU/h
Network
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
VPN tunnels quantity	200
Local user database	250
Quality of Service (QoS) support	Yes
Number of VLANs	256
DHCP server	Yes
Number of LAN Access Points (max)	32
Security
Security algorithms	EAP-PEAP, EAP-TTLS, TKIP, WEP, WPA, WPA2
Protocols
Routing protocols	BGP, OSPF, RIP-1, RIP-2
Management features
LED indicators	Yes
Hard drive
Total storage capacity	32 GB
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Installed SFP+ modules quantity	2
Gigabit Ethernet (copper) ports quantity	8
Ethernet LAN (RJ-45) ports	8
Ethernet LAN data rates	1000,5000 Mbit/s
Console port	RJ-45
Number of console ports	1
Storage
Total storage capacity	32 GB
Certificates
Certification	FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/IC, CE (RED, RoHS),C-Tick, VCCI Class B, Japan Wireless, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL
Design
Form factor	Desktop
Power
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Power supply	60 W
Power consumption (max)	15.3 W
Features
SSL inspection throughput	750 Mbit/s
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	34.9 oz (990 g)
Width	8.86" (225 mm)
Depth	5.91" (150 mm)
Height	1.38" (35 mm)
Other features
Firewall throughput	4000 Mbit/s
