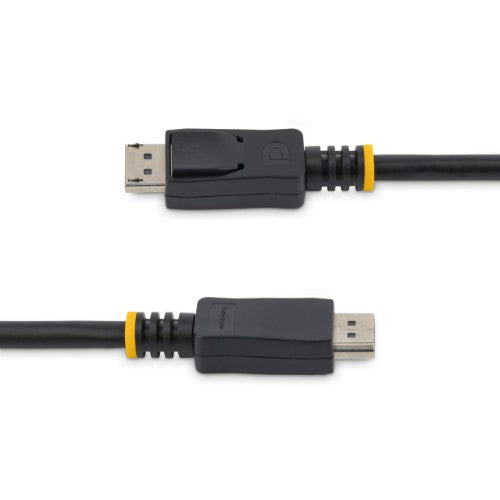

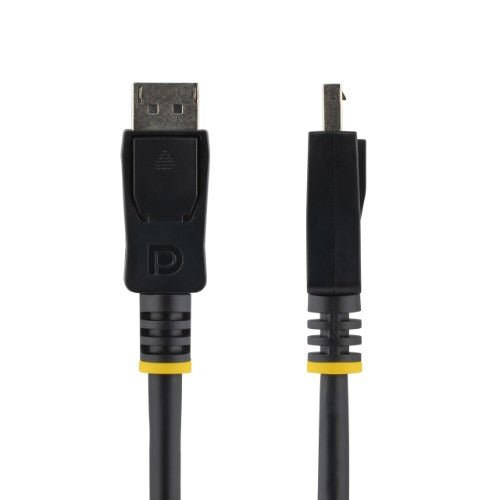

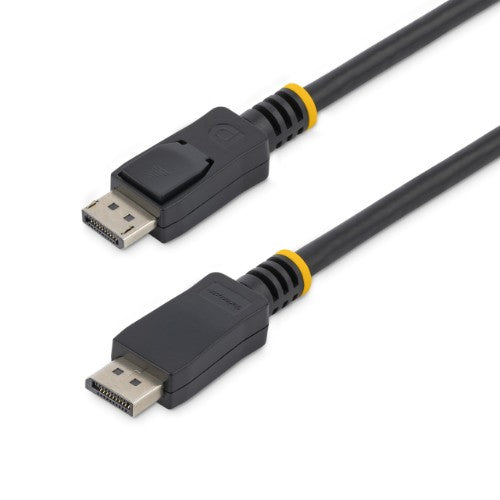

StarTech.com 10-Pack 15ft (4.6m) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors
Key Features
- HIGH PERFORMANCE CABLE: This 15ft (4.6m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 15 ft (4,6 m) / Black / DisplayPort v1.2 / DP Latching Male to Male / 26/28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC
Description
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices over longer distances
This DisplayPort ™ cable multipack provides reliable long-distance connections between your sources and displays. The 10 pack DP cables support resolutions up to 4k x 2k (4096 x 2160) @ 60Hz for high quality video.
High Quality Performance
The male to male DisplayPort cables support DP 1.2 features, including a maximum HBR2 bandwidth of 21.6 Gbps. The DP cables also support Multi-Stream (MST) for daisy-chaining multiple monitors with optional audio support. And they are backwards compatible with DisplayPort 1.1.

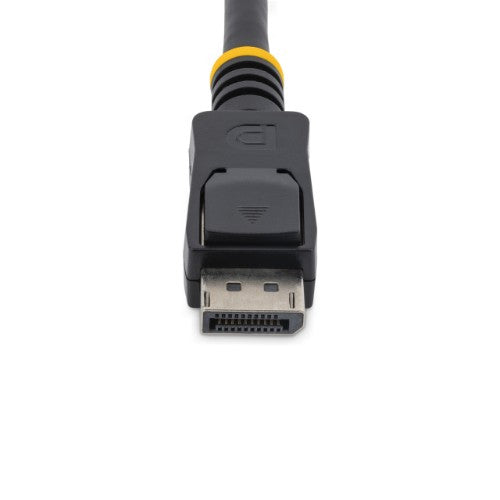

Reliable Latching Connectors
The black DP cables feature latches on each connector that provide a secure connection between your devices. They have a professional grade 28 AWG construction allowing for flexible and clean quality installations.
Multipack Business Solution
The DisplayPort cable bulk pack provides a convenient solution for businesses in need of multiple cables, offering high quality and reliable DP connections for all business needs.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
Specifications
| Features |
|---|
| Cable shielding |
Aluminum mylar foil |
| Latching connectors |
Yes |
| Cable rating |
CMG (CM) |
| Number of conductors |
19 |
| Product colour |
Black |
| Cable length |
181.1" (4.6 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| DisplayPort version |
1.2 |
| Data transfer rate |
21.6 Gbit/s |
| Maximum resolution |
4096 x 2160 pixels |
| Plug and Play |
Yes |
| Certification |
CE, REACH |
| Maximum refresh rate |
60 Hz |
| Certificates |
|---|
| Certification |
CE, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
12.2 oz (345 g) |
| Package width |
9.92" (252 mm) |
| Package depth |
13" (330 mm) |
| Package weight |
12.3 oz (350 g) |
| Packaging data |
|---|
| Weight |
12.2 oz (345 g) |
| Package width |
9.92" (252 mm) |
| Package depth |
13" (330 mm) |
| Package weight |
12.3 oz (350 g) |
| Quantity per pack |
10 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
10 pc(s) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per pallet |
30 pc(s) |
| Master (outer) case width |
13" (330 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
11" (280 mm) |
