15.6" 1920 x 1080 TFT LCD (LED), 180 nits, 30 ms, Anti-glare, 16:9, PCAP, USB, VGA, HDMI
Key Features
- PCAP (Projected Capacitive) - 10 Touch
- Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)
- Monitor Thickness: 1.28" / 32.4 mm panel depth
Description

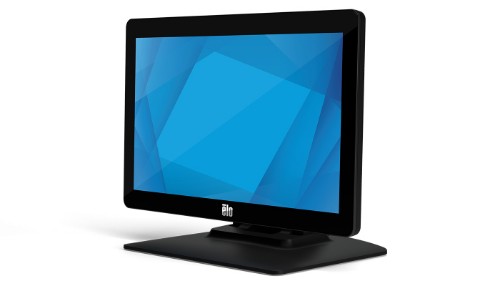

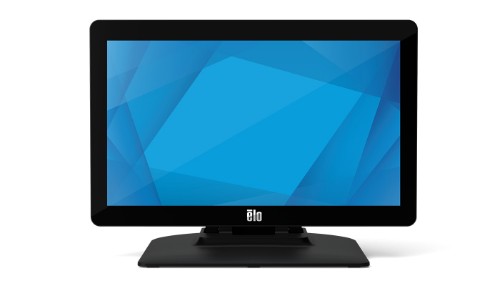

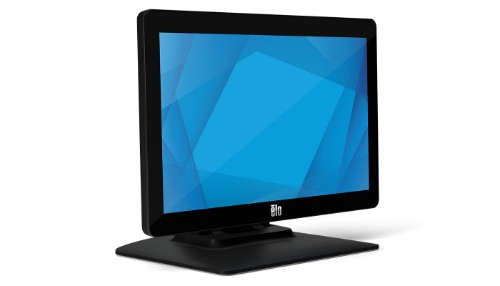

Elo’s 1502L
Touchscreen Monitor The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers. The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Well-Suited for…Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Mount with Flexibility Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.
Specifications
| Display |
|---|
| Display number of colours |
262144 colors |
| Panel type |
TFT |
| Touchscreen |
Yes |
| Display technology |
LED |
| Display diagonal |
15.6" |
| Display resolution |
1920 x 1080 pixels |
| HD type |
Full HD |
| Response time |
30 ms |
| Contrast ratio (typical) |
700:1 |
| Viewing angle, horizontal |
160° |
| Viewing angle, vertical |
160° |
| Vertical scan range |
50 - 75 Hz |
| Supported graphics resolutions |
640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
31.5 - 82 kHz |
| Anti-glare screen |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| HDMI ports quantity |
1 |
| Audio |
|---|
| RMS rated power |
2 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
Black |
| Panel mounting interface |
75 x 100 mm |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| International Protection (IP) code |
IPX1 |
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Power consumption (off) |
0.2 W |
| Power consumption (typical) |
9.5 W |
| Power consumption (standby) |
1.87 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
E |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Weight & dimensions |
|---|
| Width (with stand) |
11.2" (284.6 mm) |
| Height (with stand) |
15.2" (387 mm) |
| Depth (with stand) |
7.84" (199.1 mm) |
| Weight (with stand) |
6.72 lbs (3.05 kg) |
| Packaging data |
|---|
| Package width |
8.03" (204 mm) |
| Package depth |
17.8" (451 mm) |
| Package height |
13.5" (344 mm) |
| Package weight |
11 lbs (5.01 kg) |
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB Type-A to USB Type-C |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB Type-A to USB Type-C |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Technical details |
|---|
| VESA mounting |
Yes |
| Panel type |
TFT |
| Package type |
Box |
| Weight (with stand) |
6.72 lbs (3.05 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Features |
|---|
| Harmonized System (HS) code |
85285210 |
| Other features |
|---|
| Panel type |
TFT |
| Package type |
Box |
| Width (with stand) |
11.2" (284.6 mm) |
| Viewable size, vertical |
7.64" (19.4 cm) |
| Viewable size, horizontal |
13.5" (34.4 cm) |
| Quick start guide |
Yes |
| Height (with stand) |
15.2" (387 mm) |
| Display technology |
LED |
| Depth (with stand) |
7.84" (199.1 mm) |
| DC-in jack |
Yes |
| Weight (with stand) |
6.72 lbs (3.05 kg) |
| Energy efficiency scale |
A to G |
