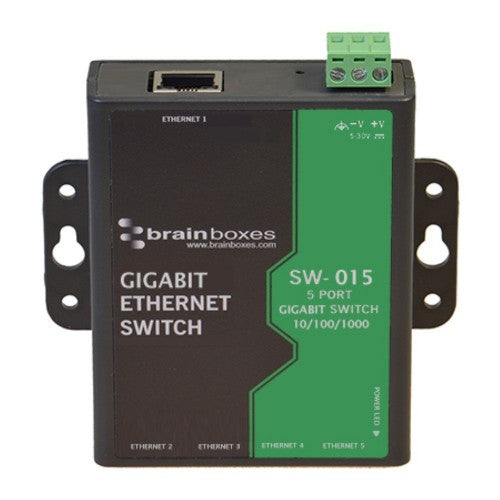

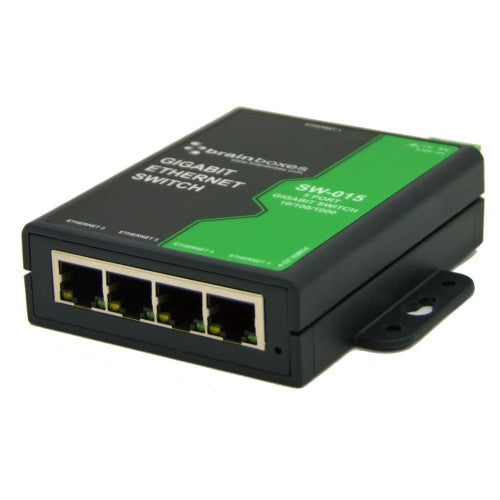

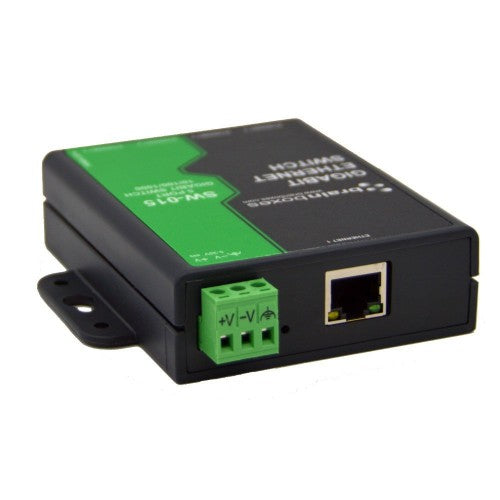

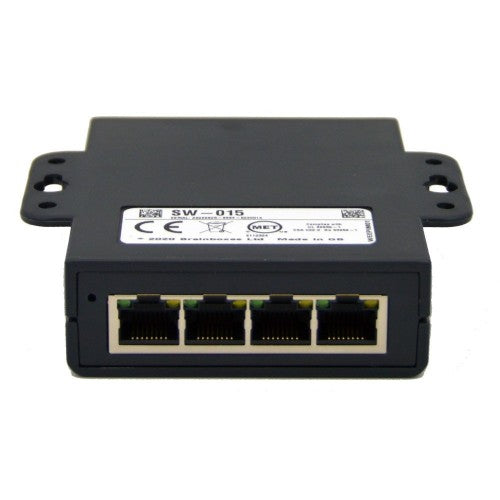

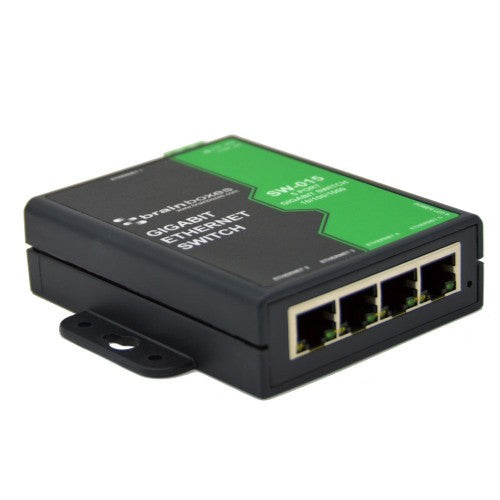

5 Port Unmanaged Gigabit Ethernet Switch Wall Mountable, Optional DIN Rail Mount, Auto MDI/ MDIX, 3.6W Max: 720mA@+5VDC/120mA@+30VDC, IP30 Non-Conducting Polyamide Case
Key Features
- 5 Gigabit Ethernet ports
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- Wide operating temperature range: -10ºC to +60ºC/-14ºF to +140ºF
- Bi-directional data flow at super-fast speed
- Small Footprint Case, only 23mm wide, 94mm deep
Description
Compact 5 port Gigabit Ethernet unmanaged switch.
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.
Specifications
| Technical details |
|---|
| Product colour |
Black, Green |
| Housing material |
Polyamide |
| Rack mounting |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power protection features |
Reverse polarity |
| Power over Ethernet (PoE) |
No |
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Auto-sensing |
Yes |
| Auto MDI/MDI-X |
Yes |
| Certificates |
|---|
| Certification |
Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Design |
|---|
| Wall mountable |
Yes |
| International Protection (IP) code |
IP30 |

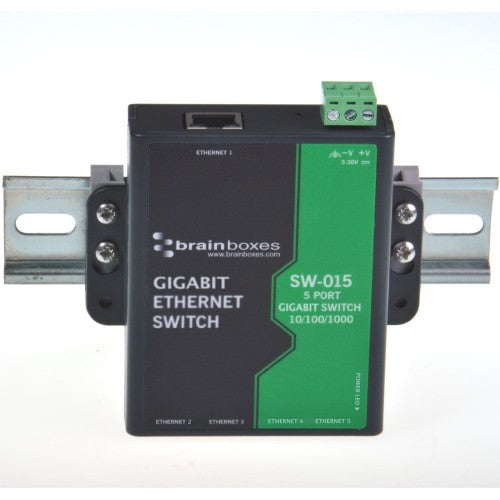

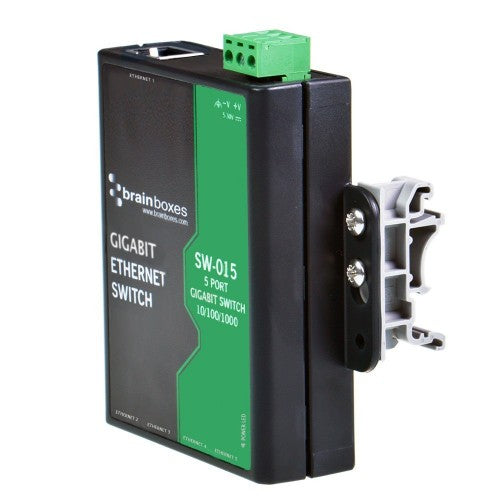

| DIN rail mounting |
Yes |
| Product colour |
Black, Green |
| LED indicators |
Activity, Link, Speed |
| Housing material |
Polyamide |
| Certification |
Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Activity, Link, Speed |
| Power |
|---|
| Power consumption (max) |
3.6 W |
| Power protection features |
Reverse polarity |
| DC input voltage |
5 - 30 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
4.33" (110 mm) |
| Depth |
3.94" (100 mm) |
| Height |
1.18" (30 mm) |
| Weight |
4.55 oz (129 g) |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Package width |
6.3" (160 mm) |
| Package depth |
5.51" (140 mm) |
| Package height |
1.97" (50 mm) |
| Package weight |
7.37 oz (209 g) |
| Packaging content |
|---|
| Quick start guide |
Yes |
