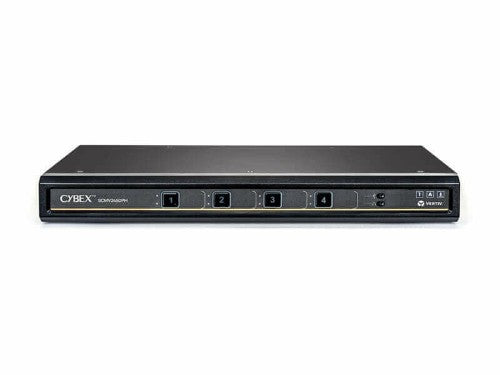

CYBEX SC Universal DP/H Secure 4-Port MultiViewer KVM with CAC, PP4.0
Key Features
- Simultaneously view multiple computers on a single display
- Ability to interact with various security classifications on a single screen
- With CNS, keyboard and mouse transitions seamlessly when holding the left CTRL key and moving the cursor across window borders
- Direct interaction with any application through touch screen capabilities
- Smart-card (CAC) or biometric readers for authentication across multiple secure computers
Description
The Vertiv™ Cybex™ Secure MultiViewer KVM continues to provide the KVM solution required in accessing both classified and non-classified data. Through an all new, universal video port connector, the Cybex™ Secure MultiViewer supports a mixture of DP, HDMI, and DVI-D video connections without needing adapters. The Cybex™ Secure MultiViewer can be used in either a single or dual display scenario with up to 16 computers on a single screen and features such as tiling, windowing, and touch screen and features as tile, scale, picture-in-picture (PIP), or custom layout.
Specifications
| Ports & interfaces |
|---|
| Console ports |
HDMI, USB A |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI/DisplayPort |
| Headphone outputs |
1 |
| USB 2.0 Type-B ports quantity |
2 |
| USB 2.0 Type-A hub ports quantity |
3 |
| Console HDMI ports quantity |
2 |
| Performance |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
30 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Technical details |
|---|
| Product colour |
Black |
| Design |
|---|
| Product colour |
Black |
| Certification |
FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI |
| Power |
|---|
| Power source |
AC |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
30 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
13.7" (348 mm) |
| Depth |
5" (127 mm) |
| Height |
1.69" (43 mm) |
| Weight |
3.53 lbs (1.6 kg) |
| Certificates |
|---|
| Certification |
FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI |
