StarTech.com USB-C Multiport Adapter - USB 3.1 Gen 2 Type-C Mini Dock - USB-C to 4K HDMI or 1080p VGA Video - 10Gbps USB-A USB-C, GbE - Portable Travel Laptop Dock - Works w/Thunderbolt 3 (DKT31CHVL)
Key Features
- ESSENTIAL PORT FUNCTIONALITY: USB C multiport adapter w/ 4K 30Hz HDMI OR 1080p VGA video, 1x USB-A & 1x USB-C (USB 3.2 Gen 2 10Gbps Hub), Gigabit Ethernet; backwards compatible with USB 3.2 Gen 1 laptops
- EXTRA LONG CABLE: Mini dock w/ 1ft (30cm) cable for easy setup & to reduce connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, iPhone 15 (Plus/Pro/Max) and up, HP Elite X2 or laptops on riser stands like Lenovo X1 Carbon
- IDEAL FOR PRESENTATIONS: USB C travel dock with VGA & HDMI video outputs; Multiport adapter connects to conference room or classroom monitor / projector through a USB-C laptop, tablet or smartphone
- EASY SETUP: Portable USB 3.2 Gen 2 Type-C multiport adapter features automatic driver installation & supports Windows, macOS, Chrome OS, iPadOS, iOS and Android
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Description
USB-C Travel Dock | MacBook Pro | USB-C & A Ports | Mac, Windows, Chrome & Android OS
This USB-C multiport adapter turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, Chromebook and Android tablet into a workstation, anywhere you go. A USB 3.1 Gen 2 Type-C hub adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs to faster 10G USB-C & USB-A peripheral ports. All through a single extended length 29cm USB-C® attached host cable, providing more flexibility for harder to reach laptop and tablet connections.

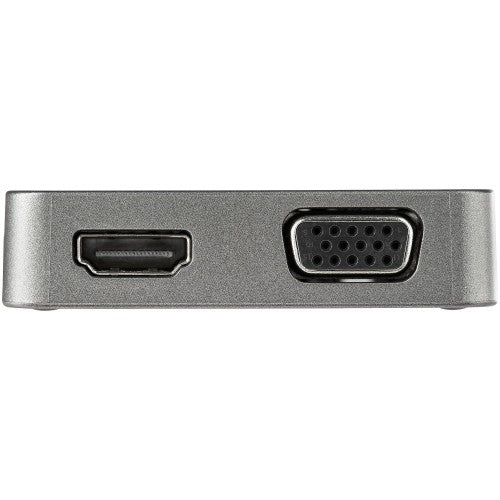

Two Video Output Options with HDMI & VGA

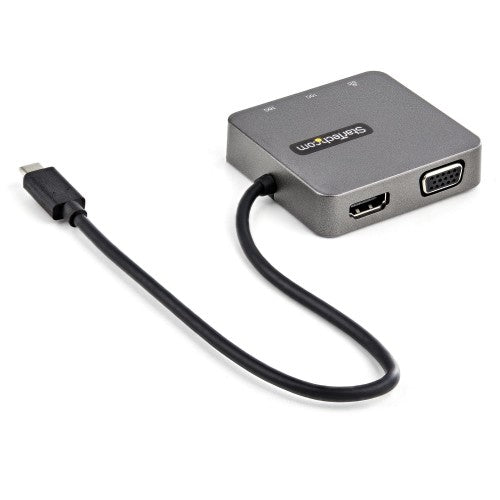

This USB-C multiport adapter features both an 4K 30Hz HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Designed for Portability & Ease of Use

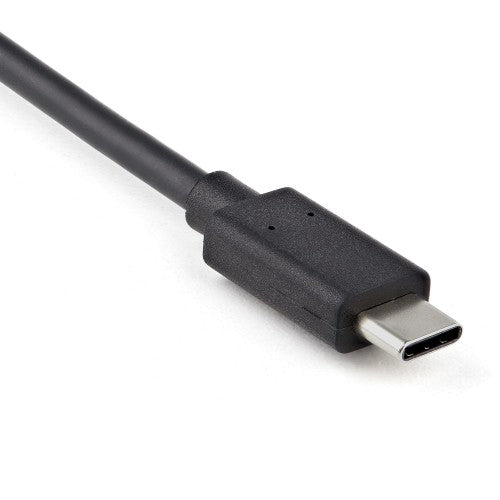

The USB-C travel dock is bus-powered through an attached extended length 29cm host cable, accommodating a wide variety of setups, so there’s no need to carry around a separate bulky power adapter. Installation is fast and simple, with native support in most operating systems and at only 1.94 ounces (55 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase.
Simplistic Port Configuration

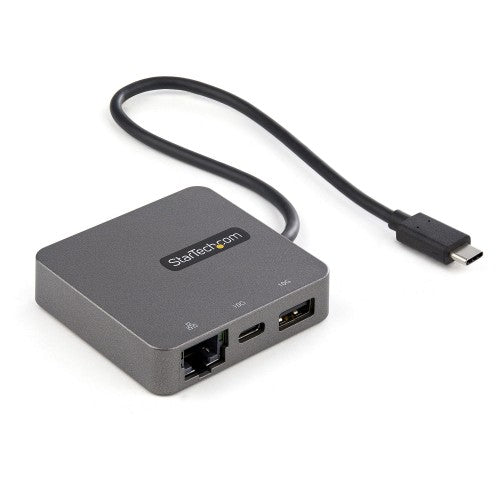

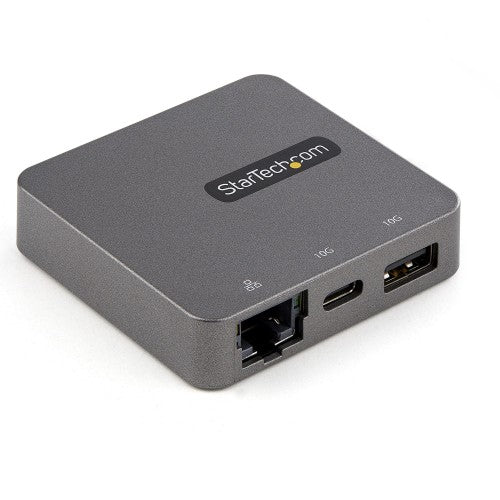

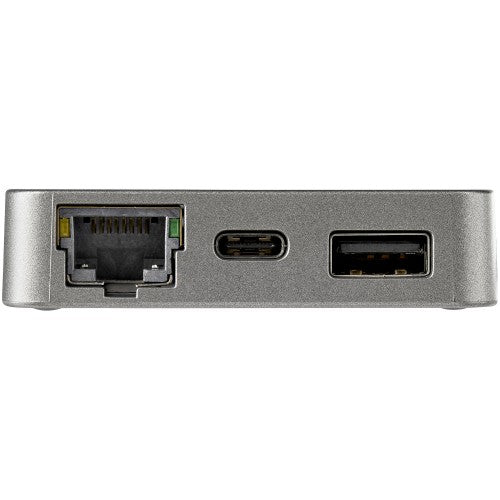

In addition to the video outputs, the portable USB-C dock gives you one 10G USB-C port and USB-A port to connect your latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The DKT31CHVL is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
No |
| Connectivity technology |
Wired |
| Network |
|---|
| Full duplex |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
3840 x 2160 pixels |
| Maximum analog resolution |
2048 x 2180 pixels |
| Full duplex |
Yes |
| Product colour |
Black, Silver |
| Data transfer rate |
10 Gbit/s |
| Housing material |
Aluminum, Plastic |
| Maximum refresh rate |
30 Hz |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Data transfer rate |
10 Gbit/s |
| Cable length |
9.84" (0.25 m) |
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
CE, RoHS |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
16.3" (415 mm) |
| Master (outer) case length |
9.25" (235 mm) |
| Master (outer) case height |
12.5" (318 mm) |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
1.9 oz (54 g) |
| Width |
2.4" (61 mm) |
| Depth |
14.2" (360 mm) |
| Height |
0.591" (15 mm) |
| Package weight |
5.78 oz (164 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
5.59" (142 mm) |
| Package height |
1.5" (38 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour |
Black, Silver |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
5.78 oz (164 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
5.59" (142 mm) |
| Package height |
1.5" (38 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
16.3" (415 mm) |
| Master (outer) case length |
9.25" (235 mm) |
| Master (outer) case height |
12.5" (318 mm) |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Chipset |
Genesys Logic - GL3590, ITE Tech - IT6564FN, Silicon Labs - EFM8UB20F32G |
| Cable length |
9.84" (0.25 m) |
