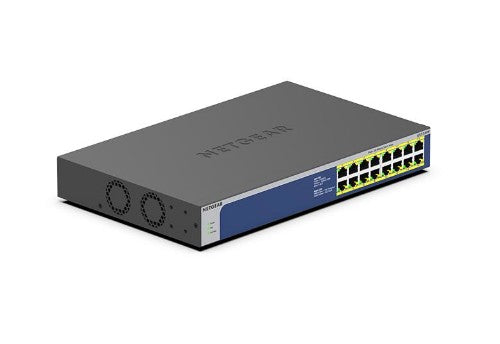

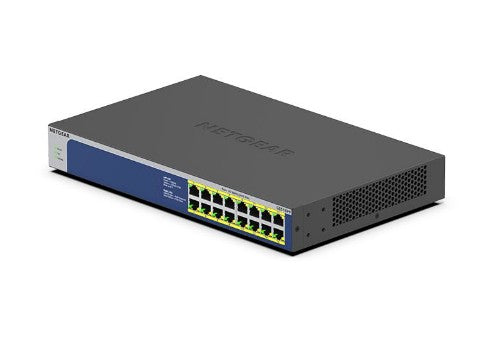

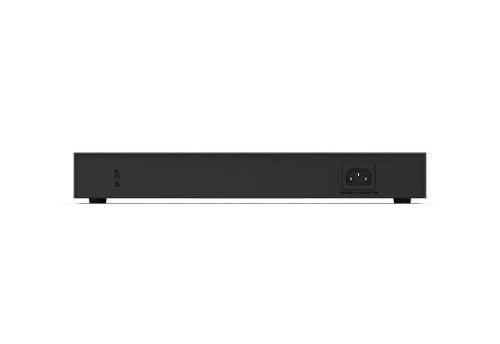

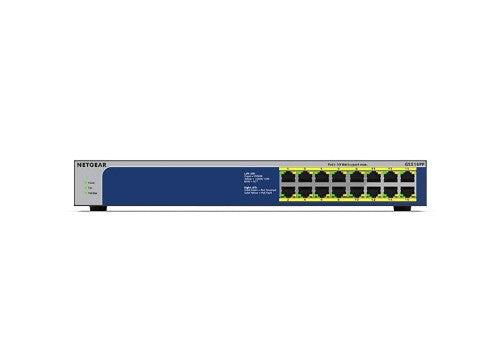

Gigabit Unmanaged Switch Series (GS516PP) 16-Port Gigabit Ethernet High-Power PoE+ Unmanaged Switch (260W)
Description
Simple plug-and-play, with more than enough to power the entire network 16 high-power PoE+ ports with a large budget to keep your devices always-ready.
PLUG-AND-PLAY:Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET:16 PoE+ ports with 260W total power budget to power wireless AP, IP Cameras, IP Phones and much more.
POWER AUTO-BALANCE AND ALLOCATIONNETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs.
SILENT OPERATION:The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
ENERGY EFFICIENT:Designed to optimize power usage lowering its cost to operate.
RUGGED METAL CASINGDurable desktop case for longevity
VERSATILE MOUNTING OPTIONS:Supports desktop or rackmount placement, and includes all mounting hardware in the box
STANDARDS-BASED DESIGNEnsure interoperability with any standards-based PDs
Specifications
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Blue, Gray |
| Mean time between failures (MTBF) |
2415333.9 h |
| Housing material |
Metal |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Half duplex |
Yes |
| Data transmission |
|---|
| Packet forwarding rate (1 Gbps) |
1448000 pps |
| Jumbo frames |
9216 |
| Latency (1 Gbps) |
12 µs |
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Jumbo frames support |
Yes |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Blue, Gray |
| LED indicators |
Activity, Fan fail, Link, PoE, Power, Speed |
| Housing material |
Metal |
| Rack mounting |
Yes |
| Number of fans |
2 fan(s) |
| Performance |
|---|
| Mean time between failures (MTBF) |
2415333.9 h |
| Indication |
|---|
| LED indicators |
Activity, Fan fail, Link, PoE, Power, Speed |
| Power |
|---|
| Power consumption (max) |
316.1 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
260 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions |
|---|
| Width |
13" (330 mm) |
| Depth |
8.15" (207 mm) |
| Height |
1.69" (43 mm) |
| Weight |
5.07 lbs (2.3 kg) |
