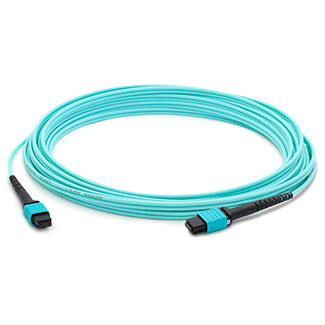

10m MPO/MPO Female to Female Crossover OM4 12 Fiber LOMM Patch Cable
Description
This is a 10m laser-optomized multi-mode fiber (LOMM) female to female MPO/MPO OM4 crossover aqua patch cable. Crossover cables are typically used for direct interconnect of electronic devices, and are commonly referred to as type B MPO array cable. This high-density 50/125 cable accomodates 12 fibers (6 duplex circuits), providing savings in circuit card and rack space. In addition, it accomodates speeds up to 40 gigabits, commonly used in QSFP applications. This patch cable is recommended for connections between fiber patch panels, hubs, switches, media converters and routers, etc. Our patch cables are 100% compliant for all of your networking needs. They provide higher speeds and increased bandwidth, compared to conventional twisted-pair copper cable. Each cable is 100% optically tested for insertion loss before you take ownership. Now you have a cost effective solution to your network upgrade needs.
Specifications
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
MPO/MTP |
| Connector 2 |
MPO/MTP |
| Cable length |
393.7" (10 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Product colour |
Blue |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
MPO/MTP |
| Connector 2 |
MPO/MTP |
| Cable length |
393.7" (10 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Weight & dimensions |
|---|
| Cable length |
393.7" (10 m) |
