Define 7 Compact, 39.3L, 2 x 3.5"/2.5" drive mount, 7 expansion slots, ATX / mATX / Mini-ITX, w/o PSU
Key Features
- Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
- Fits GPUs up to 360 mm with a 240 mm radiator in the top
- Top panel effortlessly swaps from solid steel to filtered ventilation
Reasons To Buy
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate
More in store
A pair of SSDs are easily mounted straight on the PSU shroud
Front, top and base
Easy-to-clean high airflow nylon filters
Description
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.
A cleaner lookBrushed aluminum front and interchangeable side panels give a very clean look
Compact yet spaciousThe versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Robust Front I/OFive front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.
Concealed storageYou can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and baseEasy-to-clean high airflow nylon filters.

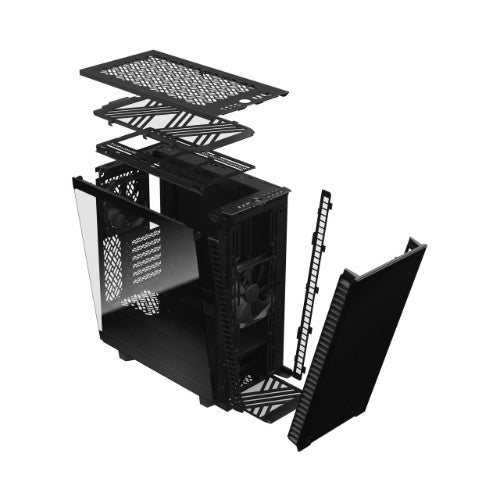

Open accessRemove the entire top to build and route with zero hindrance
Specifications
| Design |
|---|
| Volume |
39.3 L |
| Anti-dust filter |
Yes |
| Number of external 5.25" bays |
0 |
| Material |
Aluminum, Steel |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
2 |
| Rack mounting |
No |
| Supported motherboard form factors |
ATX, micro ATX, Micro-ITX |
| Suitable for |
Home/Office |
| Side window |
No |
| Reset button |
Yes |
| LED indicators |
Yes |
| Illumination |
No |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
6.65" (16.9 cm) |
| Maximum graphics card length |
13.4" (34.1 cm) |
| Maximum PSU length |
7.87" (20 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| On/off button |
Yes |
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
2 |
| Rack mounting |
No |
| Supported motherboard form factors |
ATX, micro ATX, Micro-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Suitable for |
Home/Office |
| Side window |
No |
| Reset button |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
6.65" (16.9 cm) |
| Maximum graphics card length |
13.4" (34.1 cm) |
| Maximum PSU length |
7.87" (20 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Aluminum, Steel |
| Indication |
|---|
| LED indicators |
Yes |
| Illumination |
No |
| Ergonomics |
|---|
| Reset button |
Yes |
| LED indicators |
Yes |
| On/off button |
Yes |
| Power supply |
|---|
| Number of power supply units |
1 |
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
2 |
| Cooling |
|---|
| Front radiator installed |
No |
| Front radiator sizes supported |
280,360 mm |
| Rear radiator installed |
No |
| Rear radiator sizes supported |
120 mm |
| Top radiator installed |
No |
| Top radiator sizes supported |
240 mm |
| Front fans installed |
1x 140 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
2 |
| Top fans diameters supported |
120,140 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Volume |
39.3 L |
| Width |
8.27" (210 mm) |
| Depth |
16.8" (427 mm) |
| Height |
18.7" (474 mm) |
| Weight |
19 lbs (8.61 kg) |
| Packaging data |
|---|
| Package width |
12.2" (310 mm) |
| Package height |
20.5" (521 mm) |
| Package depth |
21.1" (536 mm) |
| Package weight |
24 lbs (10.9 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Volume |
39.3 L |
| Harmonized System (HS) code |
84733080 |
