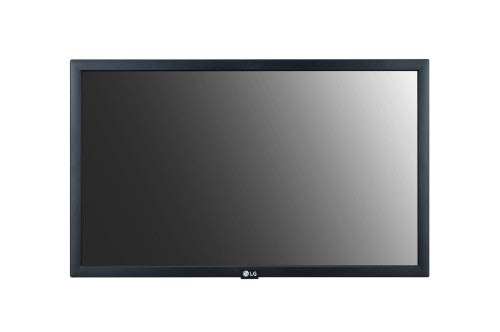

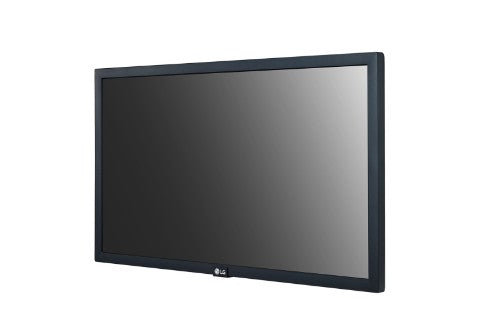

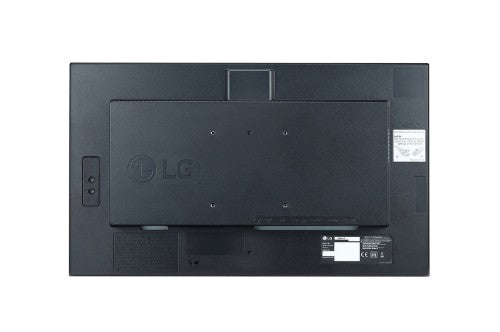

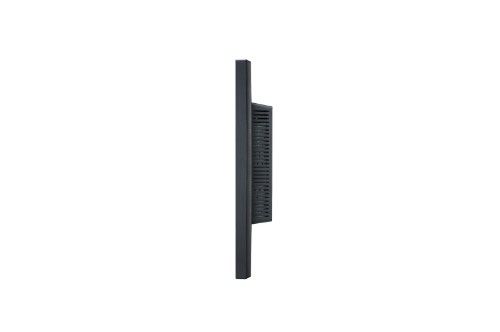

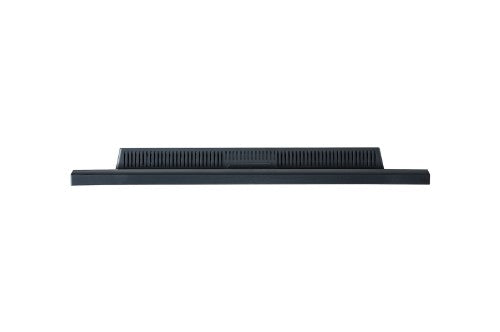

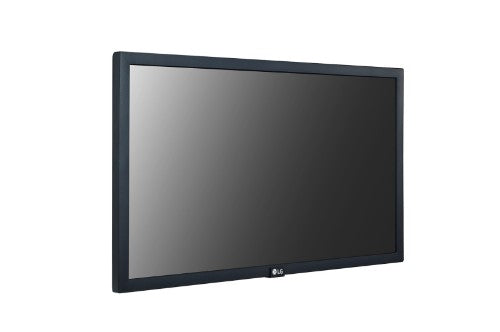

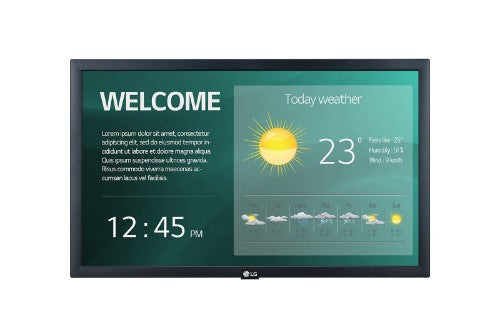

22SM3G-B, 21.5", IPS, 1920 x 1080 (FHD), 250 cd/m², USB Plug & Play, Built-in Wi-Fi
Key Features
- Brightness(Typ.) : 250 cd/m²
- Bezel : 16.3mm
- Depth : 53.8mm
- Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
- USB Plug & Play, Built-in Wi-Fi
Description
22" Signage with More Utility for Commercial Space22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOSBuilt-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor ApplicationsLG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of InterfacesThrough its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Remote Monitoring and ControlThrough the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365CareThe maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
Specifications
| Display |
|---|
| Touchscreen |
No |
| Display technology |
IPS |
| Display diagonal |
21.5" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
250 cd/m² |
| HD type |
Full HD |
| Contrast ratio (typical) |
1000:1 |
| Contrast ratio (dynamic) |
400000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
22" (55.9 cm) |
| Native aspect ratio |
16:9 |
| Ports & interfaces |
|---|
| USB port |
Yes |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
0 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| DVI port |
No |
| Audio (L/R) in |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB version |
2.0 |
| USB ports quantity |
1 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
2 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Orientation |
Horizontal |
| Product colour |
Black |
| Panel mounting interface |
100 x 100 mm |
| Certification |
CB, NRTL, EMC, FCC Class "A", CE, ErP |
| VESA mounting |
Yes |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
16/7 |
| Wi-Fi |
Yes |
| Power |
|---|
| Heat dissipation |
7.89 BTU/h |
| Power consumption (sleep) |
1 W |
| Power consumption (off) |
0.5 W |
| Power consumption (typical) |
33 W |
| Power consumption (standby) |
30 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Computer system |
|---|
| Computer system |
No |
| Processor cores |
4 |
| Internal memory |
4 GB |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Width |
20.1" (510.3 mm) |
| Depth |
2.12" (53.8 mm) |
| Height |
11.9" (302.1 mm) |
| Weight |
7.36 lbs (3.34 kg) |
| Packaging data |
|---|
| Package width |
22.2" (565 mm) |
| Package depth |
4.06" (103 mm) |
| Package height |
14.1" (357 mm) |
| Package weight |
7.72 lbs (3.5 kg) |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
| Certificates |
|---|
| Certification |
CB, NRTL, EMC, FCC Class "A", CE, ErP |
| Technical details |
|---|
| VESA mounting |
Yes |
| Thin Client |
|---|
| Internal memory |
4 GB |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Features |
|---|
| Harmonized System (HS) code |
85285210 |
| Other features |
|---|
| Wi-Fi |
Yes |
| Display technology |
IPS |
