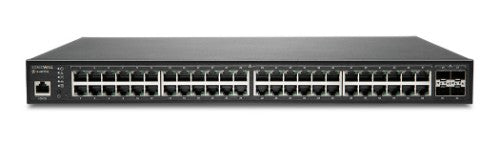

SonicWall SWS14-48FPOE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

1G Cu x 48, 10G SFP+ x 4, 512 MB, 32K Mac Table, 176 Gbps

Description

Explore the Switch Series

Your network is under more pressure than ever. As the number of connected devices expands, bandwidth demands continue to soar, making it difficult to consistently provide the secure, high-speed connection your business depends on.

SonicWall’s feature-rich switches answer the challenge delivering high-speed switching, so you can add more devices, keep up with SaaS proliferation and gain more control, all while protecting your network and your budget.

Its unified security posture makes it ideal for small and medium-sized businesses and Software Defined Branch (SD-Branch) deployments. Keep pace with the changing network and security landscape.

SD-Branch Ready

Integrates seamlessly with the SonicWall ecosystem to provide unified security posture.

10 Gigabit Connectivity

Attain significant boost in your overall switching performance as network demands grow.

Simplified Management

Whether through the firewall or cloud, with our single-pane-of-glass view, managing your security is easy.

Zero-Touch Deployment

Quickly set up, configure and deploy devices without the time and expense of site visits or on-site personnel.

Flexible Deployment Options

Multiple models provide you the flexibility to choose the best option aligned with your business goals.

Stackable Switch

Allows you to daisy chain multiple switches to enhance simplicity and scalability.

Specifications

Management features
Multicast support	Yes
Switch type	Managed
System event log	Yes
MIB support	MIB-II
Switch layer	L2
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Networking standards	IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4096
IP routing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features	Tagged VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4096
Virtual LAN features	Tagged VLAN
Data transmission
Number of VLANs	4096
MAC address table	32000 entries
Switching capacity	176 Gbit/s
Jumbo frames support	Yes
Technical details
Form factor	1U
Product colour	Black
Mean time between failures (MTBF)	100645 h
Rack mounting	Yes
Security
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH
IGMP snooping	Yes
DHCP features	DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support	Yes
Certificates
Certification	FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Memory
Internal memory	512 MB
Flash memory	128 MB
Design
Form factor	1U
Product colour	Black
LED indicators	LAN, PoE
Certification	FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Rack mounting	Yes
Number of fans	1 fan(s)
Performance
Mean time between failures (MTBF)	100645 h
Internal memory	512 MB
Flash memory	128 MB
Harmonized System (HS) code	85176990
Indication
LED indicators	LAN, PoE
Power
Power consumption (max)	530 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	12 A
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	740 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	1807.3 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	1.73" (44 mm)
Height	12.2" (310 mm)
Weight	10.6 lbs (4.8 kg)
Logistics data
Harmonized System (HS) code	85176990
