Portable 15.6", 10-Point Touch, IPS, Full HD 1920x1080, USB C w/ 60W Power, miniHDMI, Silver
Description
The ViewSonic® TD1655 is a portable 15.6” touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, and audio. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1655 perfectly fits into any bag, briefcase, or backpack so you can work wherever life takes you.
ULTRA-PORTABLE DESIGNMeasuring a mere 0.6" thick and weighing about 2 pounds, this compact monitor can be easily packed and transported wherever you go.
ADVANCED TOUCH CAPABILITIES AND SCREEN PERFORMANCEAn advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.
2-WAY POWER WITH USB TYPE-CDual USB Type-C ports deliver audio, and video over a single cable. What's more, these USB Type-C ports also deliver two-way power: a connected laptop can power the monitor, or the monitor can power a connected laptop via USB-C power bank or AC adapter and outlet.
FRAMELESS DESIGNA premium panel delivers accurate colors and vivid images, while a frameless design provides for a nearly seamless viewing experience in multi-monitor setups. And with ultra-wide viewing angles, you’ll enjoy stunningly detailed images, unbound and without borders, no matter your vantage point.

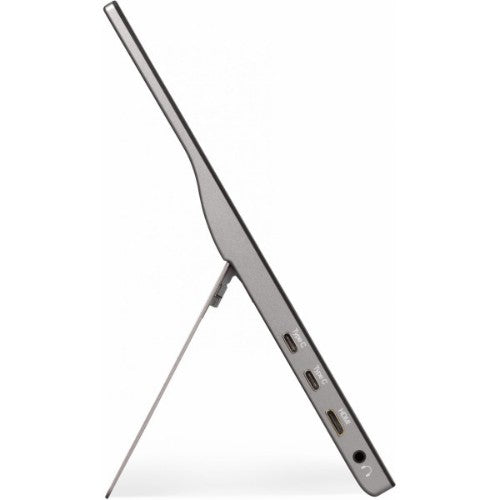

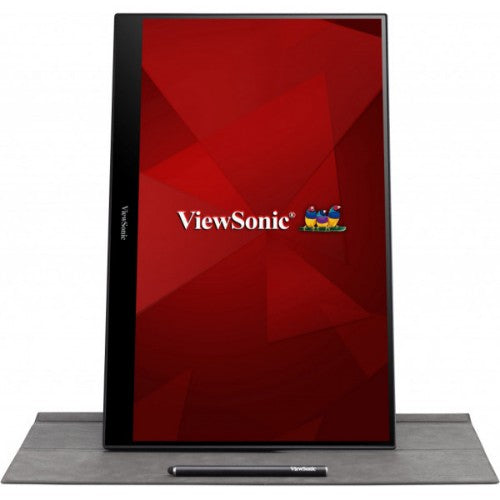

BUILT-IN STANDA convenient built-in stand enables you to orient the screen in both portrait and landscape modes.
DUAL INTEGRATED SPEAKERSDesigned with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
ENHANCED VIEWING COMFORTA Blue Light Filter helps to eliminate eye strain from extended viewing periods.
Specifications
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
1.6 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
1.6 W |
| Built-in microphone |
No |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Windows operating systems supported |
Windows 10 |
| Mac operating systems supported |
Yes |
| Display |
|---|
| Screen shape |
Flat |
| Display number of colours |
262144 colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| HD type |
Full HD |
| Display technology |
LED |
| Contrast ratio (typical) |
800:1 |
| Contrast ratio (dynamic) |
80000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00705 x 0.00705" (0.179 x 0.179 mm) |
| Horizontal scan range |
15 - 82 kHz |
| Vertical scan range |
50 - 75 Hz |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Display resolution |
1920 x 1080 pixels |
| Response time |
6.5 ms |
| Display diagonal |
15.6" |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Panel type |
IPS |
| Display diagonal (metric) |
15.6" (39.6 cm) |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Display brightness |
250 cd/m² |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
1.6 W |
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Certification |
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Product colour |
Black, Silver |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-C |
| Audio output |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| Technical details |
|---|
| Display viewable area (HxV) |
13.5 x 7.64" (344 x 194 mm) |
| Built-in microphone |
No |
| Product colour |
Black, Silver |
| Sustainability certificates |
EPEAT Bronze |
| Compliance certificates |
CE, REACH, RoHS |
| Power supply type |
AC |
| Weight (with stand) |
2.2 lbs (1 kg) |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Software |
|---|
| Windows operating systems supported |
Windows 10 |
| Mac operating systems supported |
Yes |
| Ergonomics |
|---|
| Wall mountable |
No |
| Tilt angle range |
-20 - 60° |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power supply type |
AC |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
8 W |
| Energy efficiency class (SDR) |
C |
| Energy consumption (SDR) per 1000 hours |
8 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
385512 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width (with stand) |
14" (355 mm) |
| Depth (with stand) |
0.63" (16 mm) |
| Height (with stand) |
8.78" (223 mm) |
| Weight (with stand) |
2.2 lbs (1 kg) |
| Package width |
17.3" (440 mm) |
| Package depth |
11.3" (288 mm) |
| Package height |
3.5" (89 mm) |
| Package weight |
5.07 lbs (2.3 kg) |
| Weight |
2.2 lbs (1 kg) |
| Packaging data |
|---|
| Package width |
17.3" (440 mm) |
| Package depth |
11.3" (288 mm) |
| Package height |
3.5" (89 mm) |
| Package weight |
5.07 lbs (2.3 kg) |
| Cables included |
Mini-HDMI, USB Type-C, USB Type-C to USB Type-A |
| Packaging content |
|---|
| Cables included |
Mini-HDMI, USB Type-C, USB Type-C to USB Type-A |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
385512 |
| Sustainability certificates |
EPEAT Bronze |
| Other features |
|---|
| Display viewable area (HxV) |
13.5 x 7.64" (344 x 194 mm) |
| Certification |
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Weight |
2.2 lbs (1 kg) |
| Compliance certificates |
CE, REACH, RoHS |
| Power supply type |
AC |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Certificates |
|---|
| Certification |
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO |
| Logistics data |
|---|
| Pallet gross width |
47.2" (120 cm) |
| Pallet gross length |
39.4" (100 cm) |
| Pallet gross height |
77.5" (196.8 cm) |
| Products per master (outer) case |
4 pc(s) |
| Harmonized System (HS) code |
8528521000 |
