5x 10/100/1000, RJ-45, 2.5 W, 107.16 x 70.15 x 21.17 mm, 150 g, EU
Key Features
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Description

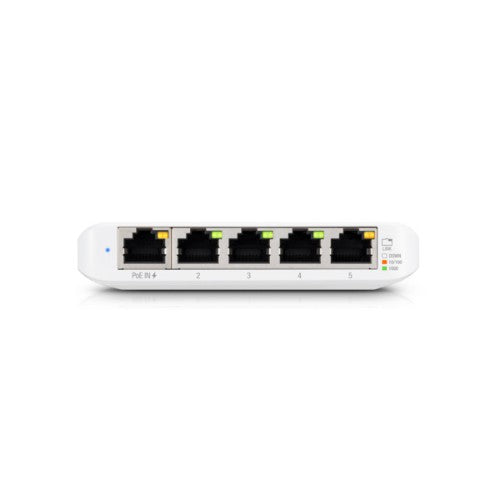

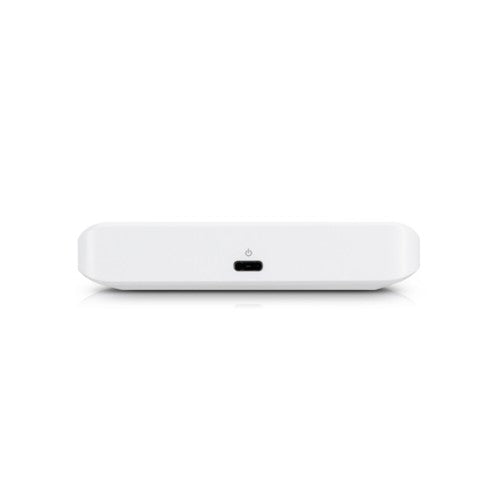

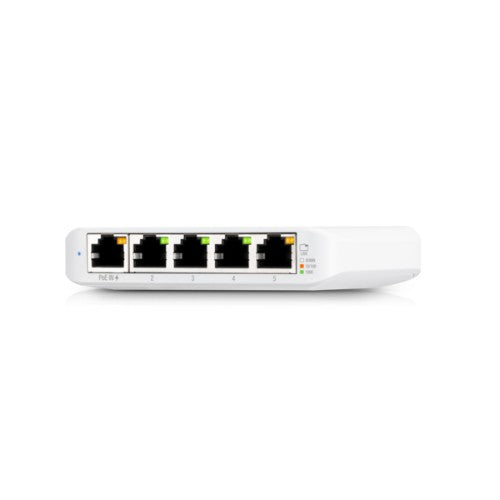

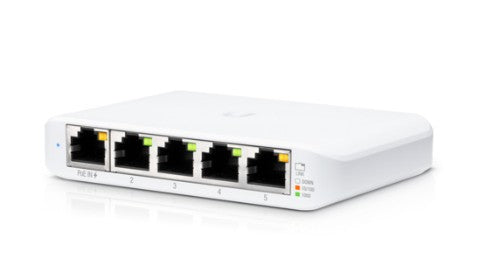

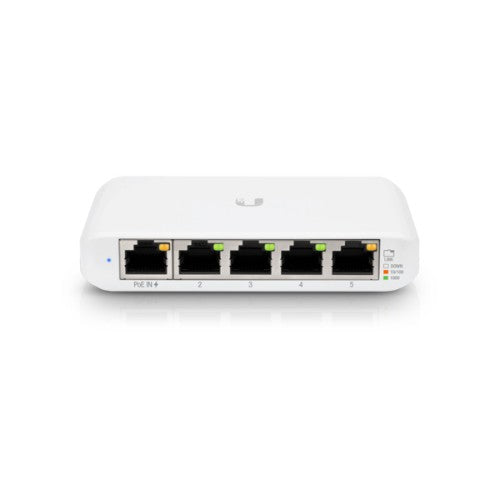

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapterBuild and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Specifications
| Management features |
| Switch type |
Managed |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Network |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Data transmission |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.44 Mpps |
| Design |
| Product colour |
White |
| Stackable |
No |
| LED indicators |
Activity, Link, Speed, Status |
| Rack mounting |
No |
| Certification |
CE, FCC, IC |
| Power |
| Power consumption (max) |
2.5 W |
| Power supply included |
Yes |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
4.22" (107.2 mm) |
| Depth |
2.76" (70.2 mm) |
| Height |
0.833" (21.2 mm) |
| Weight |
5.29 oz (150 g) |
| Packaging content |
| Cables included |
USB Type-C |
| Performance |
| Stackable |
No |
| Harmonized System (HS) code |
85176990 |
| Technical details |
| Product colour |
White |
| Stackable |
No |
| Rack mounting |
No |
| Certificates |
| Certification |
CE, FCC, IC |
| Indication |
| LED indicators |
Activity, Link, Speed, Status |
| Packaging data |
| Cables included |
USB Type-C |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
