Black Solid, 77.6L, 6 x 3.5"/2.5" HDD/SSD trays, 9 + 3 expansion slots, E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB, w/o PSU
Key Features
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Reasons To Buy
USB Type-C
USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
SSI-EEB
Easily holds your SSI-EEB motherboard
Moduvent
Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
Description

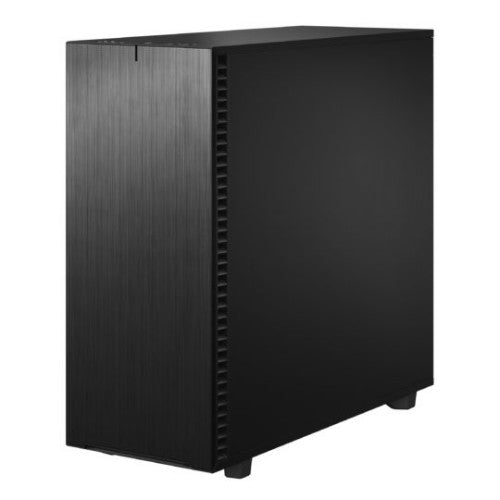

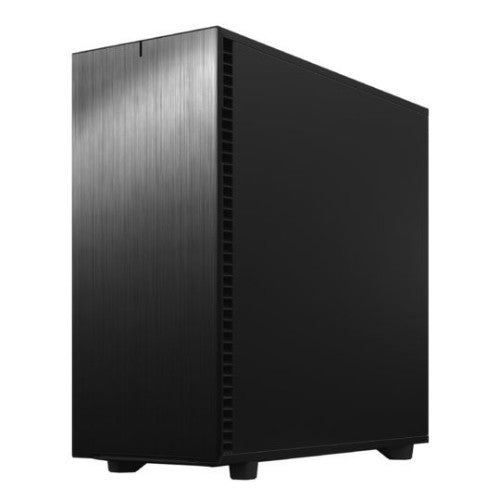

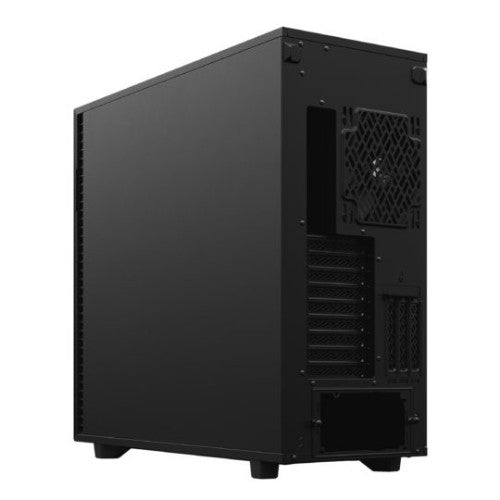

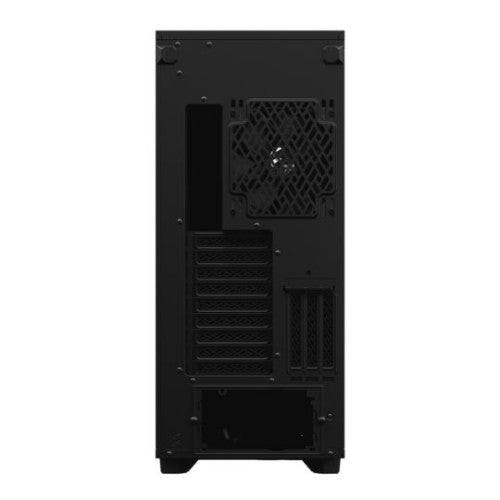

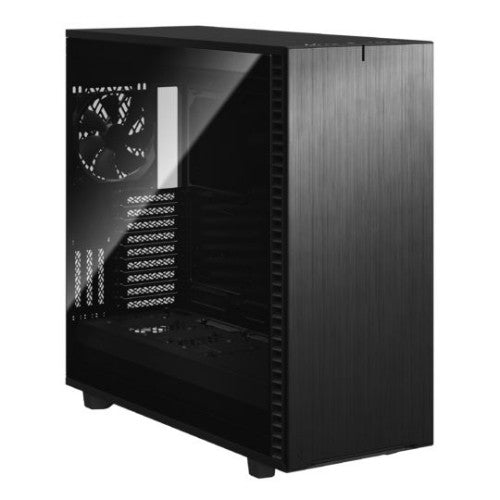

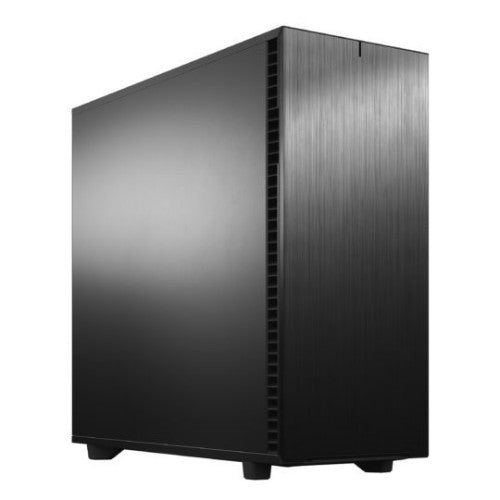

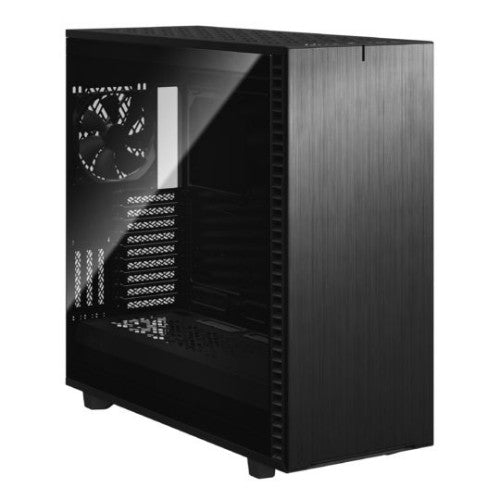

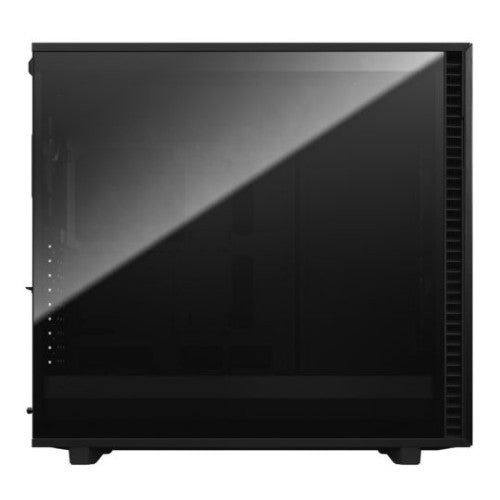

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.
Plenty of room for massive builds- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
Exceptionally silentSilence-optimized construction with industrial sound-damped front, top, and side panels.
USB Type-CUSB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.
SSI-EEBEasily holds your SSI-EEB motherboard.
ModuventTop panel effortlessly swaps from sound damped solid steel to filtered ventilation.
Versatile new MultibracketThe included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.
Specifications
| Design |
|---|
| Volume |
77.6 L |
| Anti-dust filter |
Yes |
| Material |
Steel |
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
8 |
| Number of 2.5" bays |
8 |
| Number of internal 3.5" bays |
8 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Side window |
No |
| Illumination |
No |
| Cable management |
Yes |
| Product colour |
Black |
| Number of expansion slots |
12 |
| Maximum CPU cooler height |
7.28" (18.5 cm) |
| Maximum graphics card length |
21.6" (54.9 cm) |
| Maximum PSU length |
9.84" (25 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Technical details |
|---|
| Number of 5.25" bays |
2 |
| Number of 3.5" bays |
8 |
| Number of 2.5" bays |
8 |
| Number of internal 3.5" bays |
8 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
No |
| Product colour |
Black |
| Number of expansion slots |
12 |
| Maximum CPU cooler height |
7.28" (18.5 cm) |
| Maximum graphics card length |
21.6" (54.9 cm) |
| Maximum PSU length |
9.84" (25 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Steel |
| Indication |
|---|
| Illumination |
No |
| Ergonomics |
|---|
| Cable management |
Yes |
| Power supply |
|---|
| Number of power supply units |
1 |
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
2 |
| Cooling |
|---|
| Front radiator installed |
No |
| Front radiator sizes supported |
420,480 mm |
| Rear radiator installed |
Yes |
| Top radiator installed |
No |
| Top radiator sizes supported |
420,480 mm |
| Rear radiator type |
Single radiator |
| Rear radiator fan size installed |
120 |
| Number of front fans supported (max) |
4 |
| Front fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
4 |
| Top fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
2 |
| Bottom fans diameters supported |
120,140 mm |
| Bottom radiator sizes supported |
240,280 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Volume |
77.6 L |
| Width |
9.45" (240 mm) |
| Depth |
23.8" (604 mm) |
| Height |
22.3" (566 mm) |
| Weight |
36.6 lbs (16.6 kg) |
| Packaging data |
|---|
| Package width |
14.1" (357 mm) |
| Package height |
27.9" (708 mm) |
| Package depth |
25.4" (646 mm) |
| Package weight |
41.4 lbs (18.8 kg) |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Volume |
77.6 L |
| Harmonized System (HS) code |
84733080 |
