GRP2616, 6 lines, Wi-Fi, Bluetooth, USB, 4.3" TFT, QoS, RJ-9, RJ-45, PoE, 100-240V, 247x228x82.4 mm
Key Features
- HD audio, handset and speakerphone with support for wide-band audio
- 6 line keys with up to 6 SIP accounts
- Dual LCD screens with digital BLF Keys
- Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
- Integrated dual-band 802.11 a/b/g/n/ac Wi-Fi
- Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
- Swappable face plates to allow for easy logo customization
- Integrated Bluetooth
Description

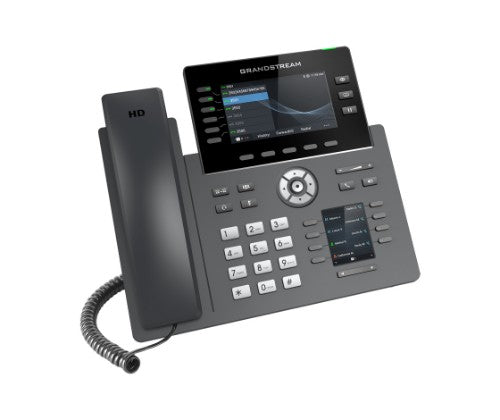

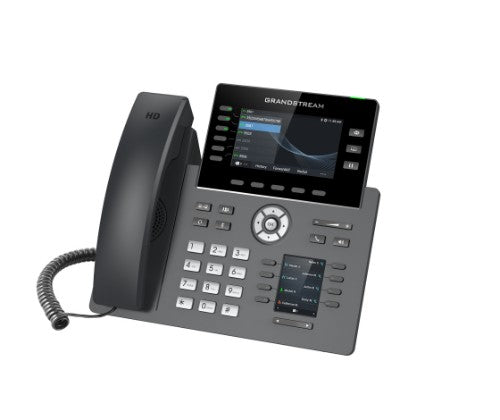

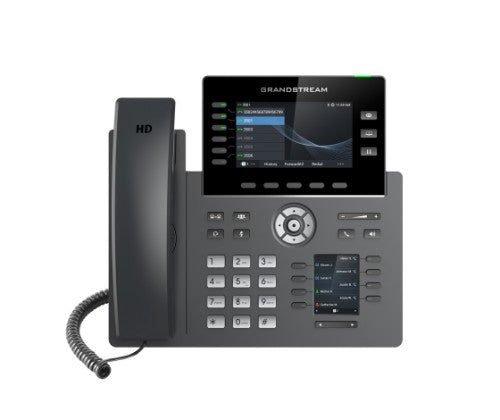

The GRP2616 is a high-end carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It supports 6 lines and 6 SIP accounts while featuring a sleek design and a suite of next-generation features including integrated Wi-Fi, Bluetooth support, 48 virtual multi-purpose keys (MPKs), dual Gigabit ports and more. This device features a 4.3 inch color LCD screen with swappable face plates to allow for easy logo customization and an additional 2.4 inch display screen. For cloud provisioning and centralized management, the GRP2616 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.
Specifications
| Features |
|---|
| Number of programmable keys |
5 |
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Phonebook sharing |
Yes |
| Handset type |
Wired handset |
| Firmware upgradeable |
Yes |
| Product colour |
Black |
| Security |
|---|
| Security algorithms |
256-bit AES, MD5, SRTP, SSL/TLS |
| Password protection type |
Supervisor, User |
| Design |
|---|
| Product type |
IP Phone |
| Handset type |
Wired handset |
| Product colour |
Black |
| Performance |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Password protection type |
Supervisor, User |
| Phone features |
|---|
| Call transfer |
Yes |
| Phonebook sharing |
Yes |
| Answering machine |
Yes |
| Call log entries |
2000 |
| Lines quantity |
6 lines |
| Conference call |
Yes |
| Call waiting |
Yes |
| Call pick up |
Yes |
| Call park |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Management features |
|---|
| Number of programmable keys |
5 |
| Firmware upgradeable |
Yes |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
480 x 272 pixels |
| Display diagonal |
4.3" |
| Display |
TFT |
| Camera |
|---|
| Front camera |
No |
| Audio |
|---|
| Voice codecs |
G.711a, G.711u, G.722, G.723, G.726, G.729ab, OPUS, iLBC |
| Speakerphone |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Wi-Fi |
Yes |
| Supported network protocols |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Security algorithms |
256-bit AES, MD5, SRTP, SSL/TLS |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85171800 |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| RJ-9 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Certificates |
|---|
| Certification |
FCC: 15 B; 15 C 15.247; 15 E 15.407; FCC Part
68 HAC; 1 I(MPE)
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301489-1; EN
301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004; AS NZS 2772.2
IC: ICES-003; CS-03; RSS-247; RSS-102(MPE). |
| Power |
|---|
| AC adapter output current |
1 A |
| Power over Ethernet (PoE) |
Yes |
| AC adapter output voltage |
12 V |
| AC adapter input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
9.72" (247 mm) |
| Depth |
8.98" (228 mm) |
| Height |
3.24" (82.4 mm) |
| Weight |
2.25 lbs (1.02 kg) |
| Package weight |
3.64 lbs (1.65 kg) |
| Packaging content |
|---|
| Number of handles included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85171800 |
