1 x 2.5-inch SATA 6Gbps SSD, 69.87 x 21.78 x 14.5 mm, 0.02 kg, 4 psc
Key Features
- Supports 2.5-inch SATA HDD/SSD
- Up to 6Gb/s file transfer speeds
- The installed SATA drive can share SAS dual-port advantages for higher reliability
Description

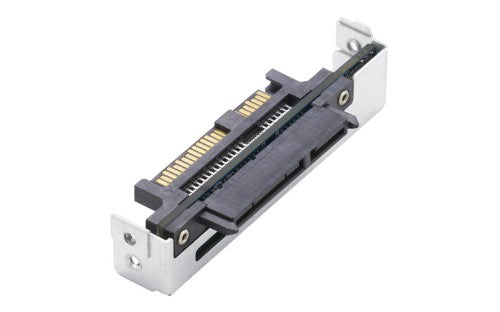

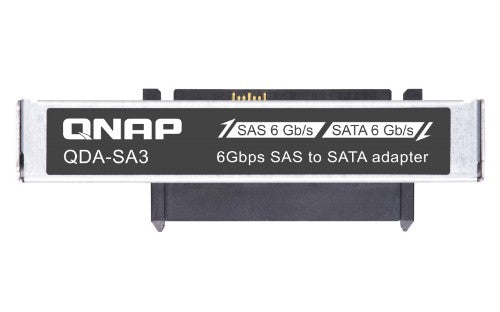

QDA-SA3
2.5-inch 6Gbps SAS to SATA drive adapter (Designed for dual-controller all-flash ES2486dc NAS)
The QDA-SA3 adapter is designed for QNAP’s dual-controller all-flash array Enterprise ZFS NAS (ES2486dc) and allows the usage of a SATA 6Gbps drive in a 2.5-inch SAS 12Gbps/6Gbps drive bay — providing the ability to expand storage capacity with cost-effective SATA drives.
SAS dual-port advantage for fault toleranceSAS features dual porting for redundancy, eliminating single points of failure and allowing for higher reliability and performance. By installing a SATA drive with the QDA-SA3 into a dual-controller all-flash Enterprise ZFS NAS, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault tolerant enterprise storage environment.
Designed for all-flash Enterprise ZFS NASThe QDA-SA3 can be easily installed in the 2.5-inch disk tray of an all-flash array Enterprise ZFS NAS (ES2486dc disk tray model: TRAY-25-NK-BLK04).
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Output interface |
SATA |
| SATA revision |
3.0 |
| Internal SATA ports quantity |
1 |
| Host interface |
SAS |
| Technical details |
|---|
| Data transfer rate (max) |
6 Gbit/s |
| Performance |
|---|
| Data transfer rate (max) |
6 Gbit/s |
| Product colour |
Black, Gray |
| Harmonized System (HS) code |
84733020 |
| Colour |
|---|
| Product colour |
Black, Gray |
| Design |
|---|
| Internal |
Yes |
| Product colour |
Black, Gray |
| Features |
|---|
| Data transfer rate (max) |
6 Gbit/s |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Width |
2.75" (69.9 mm) |
| Depth |
0.857" (21.8 mm) |
| Height |
0.571" (14.5 mm) |
| Weight |
0.705 oz (20 g) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Quantity |
4 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Quantity |
4 |
