24", IPS LCD Active Matrix Flat Panel Display (TFT), 300 cd/m², 2560 x 1440, QHD
Description

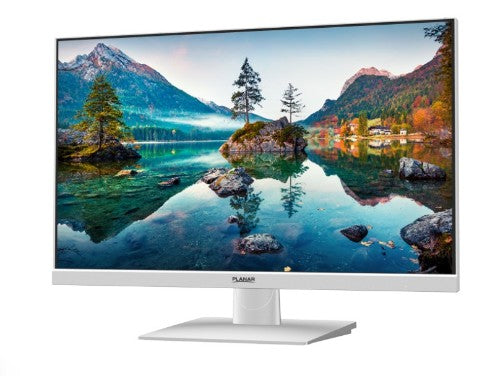

The Planar® PXN2490MW-WH is a QHD 24" desktop monitor that features IPS LED backlight technology, a nearly borderless design, wide viewing angles, external power supply, speakers and inputs for DisplayPort, HDMI® and DVI. The Planar PXN2490MW-WH fits seamlessly into home, office, healthcare and digital signage environments.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
300 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
76 Hz |
| HD type |
Quad HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00810 x 0.00810" (0.206 x 0.206 mm) |
| Aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Response time |
6 ms |
| Display diagonal |
24" |
| Touchscreen |
No |
| Panel type |
IPS |
| Anti-glare screen |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Performance |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Flicker-free technology |
Yes |
| Management features |
|---|
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Multi |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Product colour |
Black |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
No |
| Headphone out |
No |
| DVI port |
Yes |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| HDMI |
Yes |
| Technical details |
|---|
| Height (without stand) |
12.8" (324.3 mm) |
| Depth (without stand) |
1.54" (39.2 mm) |
| Width (without stand) |
21.3" (539.8 mm) |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Product colour |
Black |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, cUL |
| Power supply type |
External |
| Weight (with stand) |
7.94 lbs (3.6 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Tilt angle range |
-5 - 15° |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Multi |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power supply type |
External |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
22 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Height (without stand) |
12.8" (324.3 mm) |
| Depth (without stand) |
1.54" (39.2 mm) |
| Width (without stand) |
21.3" (539.8 mm) |
| Width (with stand) |
21.3" (539.8 mm) |
| Depth (with stand) |
7.86" (199.6 mm) |
| Height (with stand) |
15.2" (385.6 mm) |
| Weight (with stand) |
7.94 lbs (3.6 kg) |
| Weight (without stand) |
7.05 lbs (3.2 kg) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI |
| Power adapter included |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI |
| Power adapter included |
Yes |
| Other features |
|---|
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, cUL |
| Height (without stand) |
12.8" (324.3 mm) |
| Depth (without stand) |
1.54" (39.2 mm) |
| Width (without stand) |
21.3" (539.8 mm) |
| Quick start guide |
Yes |
| HDMI |
Yes |
| Power supply type |
External |
| Touchscreen |
No |
