Description

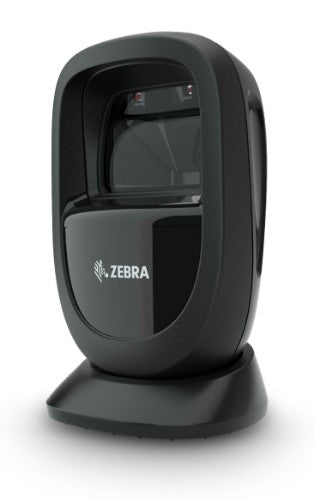

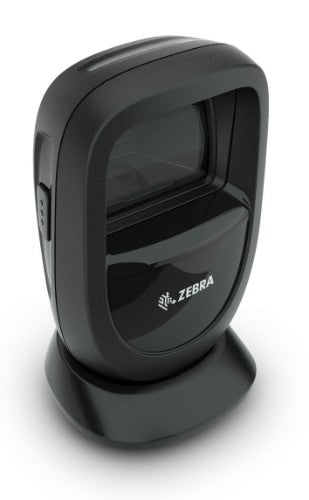

1D/2D, Digimarc, 660 nm Hyper Red LED, 1280x800, USB, RS232, IP52, Verifone Kit
The little presentation scanner with big functionality
From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality.
Scan it all — with virtually no exceptions
Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.
Rapid-fire can’t-miss scanning
When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.
Intelligent adaptive illumination
The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.
Instantly capture and process driver’s license data
Use the information on a driver’s license to instantly verify age, populate loyalty and credit card applications and monitor returns to prevent fraud.
Innovation-driven design and performance
A fit-everywhere modern design with a near-zero footprint
The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300 Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.
Description
DS9300 SeriesThe little presentation scanner with big functionality
From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality.
Scan it all — with virtually no exceptions
Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.
Rapid-fire can’t-miss scanning
When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.
Intelligent adaptive illumination
The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.
Instantly capture and process driver’s license data
Use the information on a driver’s license to instantly verify age, populate loyalty and credit card applications and monitor returns to prevent fraud.
Innovation-driven design and performance
A fit-everywhere modern design with a near-zero footprint
The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300 Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. |
| Working distance | 26" (66 cm) |
| Tilt reading angle | -60 - 60° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 52° |
| Vertical field of view | 33° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Image formats supported | BMP, JPEG, TIFF |
| Ambient lighting | Yes |
| Print contrast | 15% |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Design | |
| Type | Fixed bar code reader |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 5.5 V |
| Weight & dimensions | |
| Width | 3.39" (86 mm) |
| Depth | 3.27" (83 mm) |
| Height | 5.71" (145 mm) |
| Weight | 11.2 oz (318 g) |
| Technical details | |
| Type | Fixed bar code reader |
| Light source | circular 617 nm amber LED |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 59.1" (1.5 m) |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Light source | circular 617 nm amber LED |
