4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode
Key Features
- One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Audio Mixer Modes – mixes up to two audio sources as audio output
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
- ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
- Independent switching of KVM, USB peripheral, and stereo audio focus2
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD Audio2
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
- Note:
- 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
- 2. HD audio through HDMI channel cannot be switched independently
Description

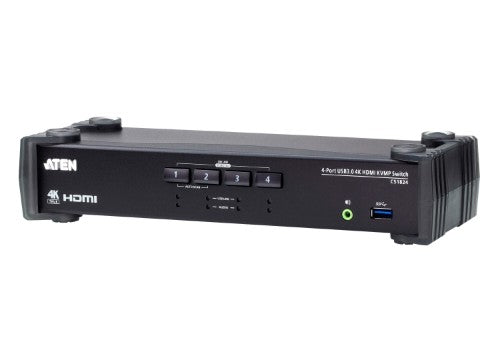

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
Specifications
| Technical details |
|---|
| Product colour |
Black |
| Scan interval |
1,99 s |
| Push button |
Yes |
| USB hub |
Yes |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |

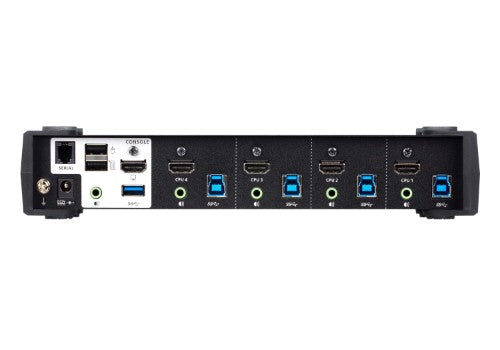

| Console ports |
3.5mm headphone, HDMI, USB A |
| USB connector type |
USB Type-A, USB Type-B |
| Serial ports quantity |
1 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| HDMI ports quantity |
5 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Performance |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Scan interval |
1,99 s |
| Design |
|---|
| Product colour |
Black |
| Push button |
Yes |
| Housing material |
Metal, Plastic |
| Power |
|---|
| Output voltage |
5 V |
| Power source |
DC |
| Power consumption (typical) |
2.535 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
34.6" (880 mm) |
| Depth |
106.3" (2700 mm) |
| Height |
21.9" (555 mm) |
| Weight |
33.2 oz (940 g) |
| Other features |
|---|
| Push button |
Yes |
