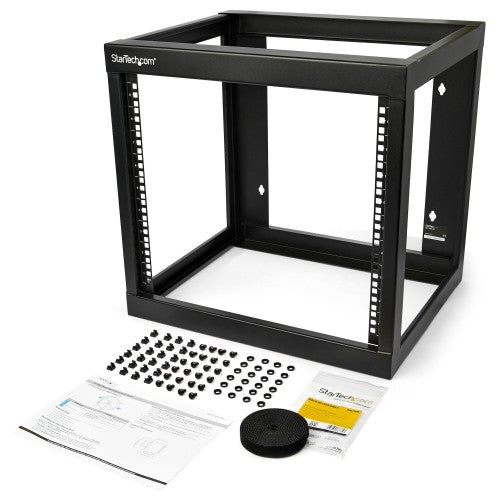

StarTech.com 9U 19" Wall Mount Network Rack 17" Deep 2 Post Open Frame for Server Room/Data/AV/IT/Communication/Computer Equipment/Patch Panel w/Cage Nuts/Screws Hook/Loop 175lb Capacity (RK919WALLO)
Key Features
- STURDY & CONVENIENT: 9U 19" Open Frame wall mount network rack with 17" mounting depth is EIA/ECA-310 compatible & supports patch panels, shelves, and unmanaged switches
- HEAVY DUTY: This heavy duty 2 post open frame rack supports unobstructed airflow and features a durable design made from SPCC cold-rolled steel with support for up to 175lbs of equipment
- FULLY ASSEMBLED: This rack comes fully assembled out of the box and includes mounting screws and cage nuts for quick installation of server room rackmount or computer equipment without additional purchases
- ACCESSORIES INCLUDED: The wall mount server room/ computer/communication/AV/IT equipment rack includes 24 M6 screws & cage nuts & hook & loop to securely mount all of your equipment in the rack
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2 post open frame rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description

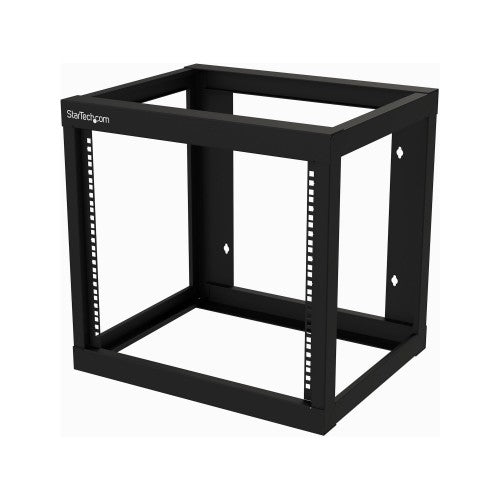

Mount your server or networking equipment using this 9U wall mount rack
This open-frame 9u wall mount rack provides 9U of storage, allowing you to save space and stay organized. The 19 inch equipment rack can hold up to 175 lb. (80 kg).
Easy, Hassle-Free Installation
The wall mount open-frame rack is 18 in. (45.7 cm) deep, so it's perfect for smaller spaces. It ships fully assembled and features mounting holes that are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Free Up Space
You can mount the wall mount open-frame rack where space is limited, such as on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep Your Equipment Cool and Accessible
By having an open frame, the small wall mount network rack provides passive cooling to equipment. Additionally, the open frame provides easy access and the ability to configure your equipment, allowing you to maximize productivity.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The RJ919WALLO is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Weight & dimensions |
|---|
| Package depth |
20.7" (525 mm) |
| Package width |
24.4" (620 mm) |
| Package height |
24" (610 mm) |
| Package weight |
28.7 lbs (13 kg) |
| Mounting depth (max) |
17" (43.2 cm) |
| Width |
21.7" (550 mm) |
| Depth |
18" (457 mm) |
| Height |
21.3" (540 mm) |
| Weight |
21.8 lbs (9.9 kg) |
| Maximum weight capacity |
176.4 lbs (80 kg) |
| Packaging content |
|---|
| Nuts included |
Yes |
| Number of nuts |
24 |
| Screws included |
Yes |
| Number of screws |
24 |
| Features |
|---|
| Frame type |
Open |
| Product design |
2-post |
| Rack capacity |
9U |
| Mounting hole shape |
Square |
| Type |
Wall mounted rack |
| Maximum weight capacity |
176.4 lbs (80 kg) |
| Material |
Steel |
| Product colour |
Black |
| Certification |
REACH |
| Packaging data |
|---|
| Nuts included |
Yes |
| Number of nuts |
24 |
| Package depth |
20.7" (525 mm) |
| Package width |
24.4" (620 mm) |
| Package height |
24" (610 mm) |
| Package weight |
28.7 lbs (13 kg) |
| Screws included |
Yes |
| Number of screws |
24 |
| Technical details |
|---|
| Package width |
24.4" (620 mm) |
| Package height |
24" (610 mm) |
| Type |
Wall mounted rack |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85381000 |
| Compliance certificates |
RoHS |
| Rack capacity |
9U |
| Colour |
|---|
| Product colour |
Black |
| Certificates |
|---|
| Certification |
REACH |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
24.4" (620 mm) |
| Master (outer) case length |
20.7" (525 mm) |
| Master (outer) case height |
24" (610 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
