Epson BrightLink 1480Fi data projector Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White

5000 lumens, 3LCD, 1080p, 16:9, FHD, White

Key Features

• Draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors
• Use free Epson iProjection software to connect, display and share content simultaneously to/from up to 50 connected devices
• Includes 1-year subscription and support for GoBoard Collaborative Whiteboarding Software

Description

Increase engagement and collaboration in classrooms and meeting spaces with the dynamic BrightLink 1480Fi 1080p1 3LCD interactive laser display. Designed with convenience in mind, this ultra bright, 5,000-lumen2 ultra short-throw projector offers easy installation and a virtually maintenance-free 20,000-hour laser light source with no lamps3. Offering a 16:9 display up to 100", the 1480Fi provides 75 percent more interactive space than 75" panels for a fully immersive display in meeting spaces and classrooms. With support for optional BrightLink touch modules , it allows up to eight users to work on a single interactive canvas. Plus, it comes with a host of PC-free features including collaborative whiteboard sharing, printing, emailing and more.


BrightLink training resources
browse training videos and resources for BrightLink interactive displays


Super bright
5,000 lumens color/white brightness2; 1080p Full HD laser display


Enhance learning environments
Large, 100" display provides 75 percent larger interactive area than 75" panels


Laser light source life
Virtually maintenance-free 20,000-hour laser light source with no lamps3


Pen-based interactivity
Turn almost any wall or existing whiteboard interactive; allows up to two users to write and draw at once

Time-saving installation
Automatic image alignment

BrightLink Interactive Displays
Transforming today’s meeting spaces and learning environments.

BrightLink features 3LCD technology for bold, brilliant color displays in settings with ambient light. BrightLink displays transform meeting spaces and classrooms into immersive collaborative environments where productivity is enhanced, creativity is on display, and participants fully-engaged. With images up to 120˝, flexible displays breathe new life into ordinary walls and dry erase boards, eliminating the need for dedicated electronic boards or space consuming flat panels.

Specifications

Projector
Number of colours	1.07 billion colors
White light output	5000 ANSI lumens
Colour light output	5000 ANSI lumens
Projector native resolution	1080p (1920x1080)
Native aspect ratio	16:9
Supported aspect ratios	4:3, 16:10
Screen size compatibility	65 - 100"
Contrast ratio (typical)	2500000:1
Keystone correction, vertical	3°
Keystone correction, horizontal	3°
Projection technology	3LCD
Projector brightness	5000 ANSI lumens
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Fixed focal length	0.154" (3.9 mm)
Zoom ratio	1.35:1
Zoom capability	Yes
Focus	Manual
Throw ratio	0.27 – 0.37, 0.37 – 0.50, 0.30 – 0.42
Video
Full HD	Yes

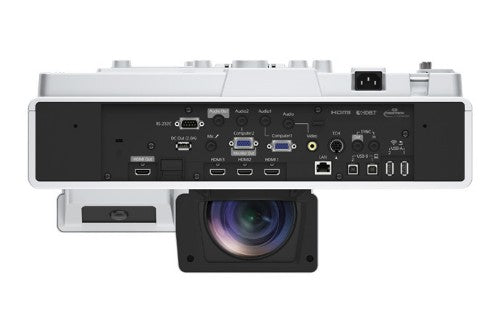

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 Type-B ports quantity	2
PC in (D-Sub)	Yes
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
USB 2.0 ports quantity	2
Composite video in	1
Audio (L/R) in	1
Audio (L/R) out	1
Microphone in	Yes
Serial interface type	RS-232C
Component video (YPbPr/YCbCr) in	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	1
Features
Interactive	Yes
Interactive input supported	Interactive pen/Touch
Noise level	36 dB
Noise level (economic mode)	27 dB
Projection modes	Ceiling
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	16 W
Design
Market positioning	Business
Product type	Ultra short throw projector
Cable lock slot type	Kensington
Product colour	White
Cable lock slot	Yes
Placement	Ceiling, Wall
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	381 W
Power source	AC
Power consumption (standby)	2 W
Power consumption (economy mode)	270 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	0.342 oz (9.7 g)
Width	18.1" (459 mm)
Depth	18.2" (462 mm)
Height	14.8" (375 mm)
Packaging content
Remote control included	Yes
Manual	Yes
Cables included	AC, USB Type-A
Batteries included	Yes
Other features
F-number (relative aperture)	1.5
