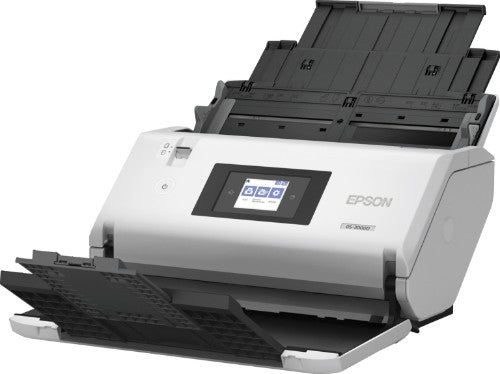

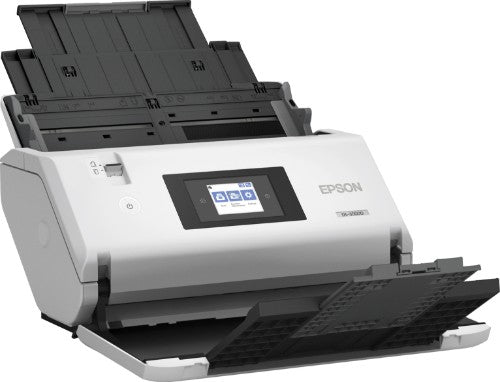

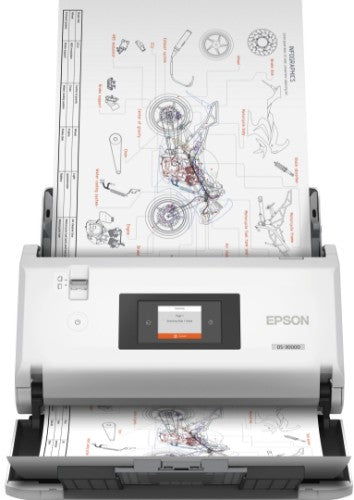

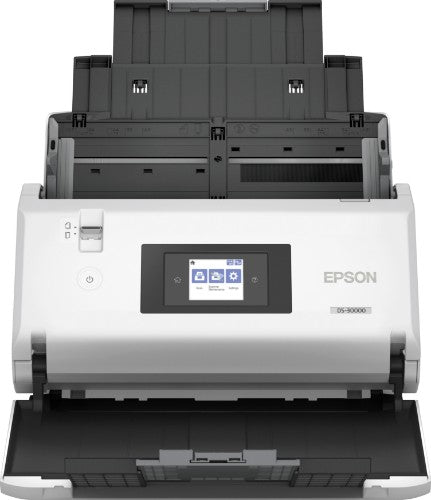

Epson DS-30000, 12 x 22" (304.8 x 558.8 mm), 600 x 600 DPI, 30 bit, 24 bit, 10 bit, 8 bit
Description
Epson DS-30000. Maximum scan size: 12 x 22" (304.8 x 558.8 mm), Optical scanning resolution: 600 x 600 DPI, Input color depth: 30 bit. Scanner type: Sheet-fed scanner, Product color: White, Display: LCD. Sensor type: CIS, Light source: White LED, Scan drivers: ISIS, TWAIN. Auto document feeder (ADF) input capacity: 120 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A3
Specifications
| Scanning |
|---|
| Output greyscale depth |
8 bit |
| Output monochrome depth |
24 bit |
| Maximum scan size |
12 x 22" (304.8 x 558.8 mm) |
| Optical scanning resolution |
600 x 600 DPI |
| Duplex scanning |
Yes |
| Input colour depth |
30 bit |
| Output colour depth |
24 bit |
| Input greyscale depth |
10 bit |
| Sensor type |
CIS |
| Light source |
White LED |
| Design |
|---|
| Built-in display |
Yes |
| Touchscreen |
Yes |
| Scanner type |
Sheet-fed scanner |
| Display diagonal |
2.7" |
| Display |
LCD |
| Product colour |
White |
| Control type |
Touch |
| Performance |
|---|
| Sensor type |
CIS |
| Light source |
White LED |
| Scan drivers |
ISIS, TWAIN |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
120 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A3 |
| Scanning media types supported |
Business Card, Plastic Card, Post Card(JPN) |
| Legal |
Yes |
| ISO A-series sizes (A0...A9) |
A3 |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Scan drivers |
ISIS, TWAIN |
| Power |
|---|
| Power consumption (typical) |
20 W |
| Power consumption (standby) |
11 W |
| Power consumption (off) |
0.1 W |
| Input voltage |
100 - 240 V |
| Power supply type |
AC |
| Power consumption (sleep) |
1.4 W |
| AC input frequency |
50 - 60 Hz |
| Display |
|---|
| Touchscreen |
Yes |
| Display diagonal |
2.7" |
| Display |
LCD |
| Media formats |
|---|
| Legal |
Yes |
| ISO A-series sizes (A0...A9) |
A3 |
| Technical details |
|---|
| Scanner type |
Sheet-fed scanner |
| Product colour |
White |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Weight & dimensions |
|---|
| Width |
14.6" (370 mm) |
| Depth |
8.19" (208 mm) |
| Height |
8.62" (219 mm) |
| Weight |
12.8 lbs (5.81 kg) |
| Other features |
|---|
| Scanner type |
Sheet-fed scanner |
