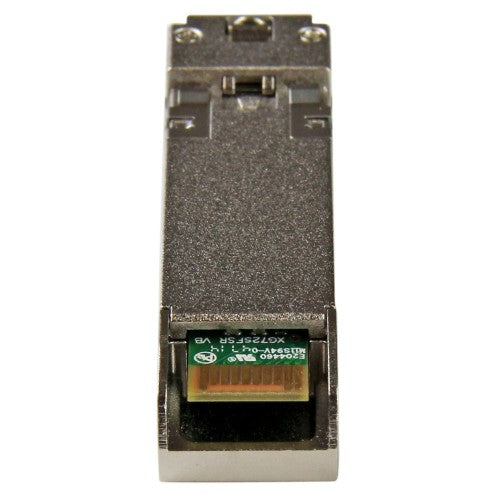

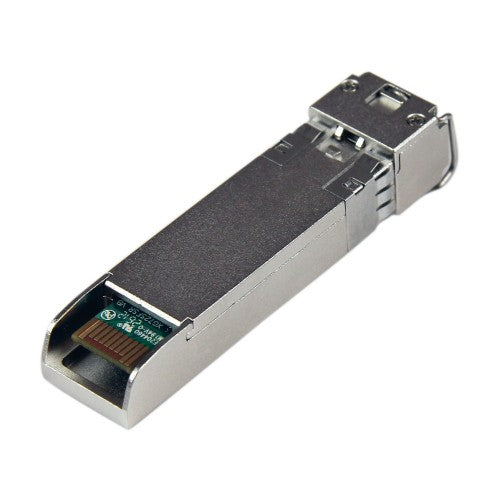

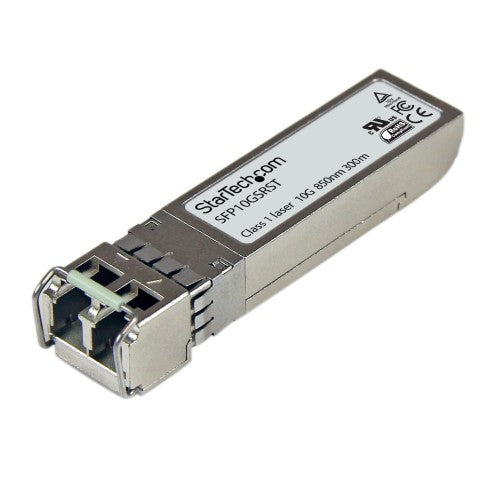

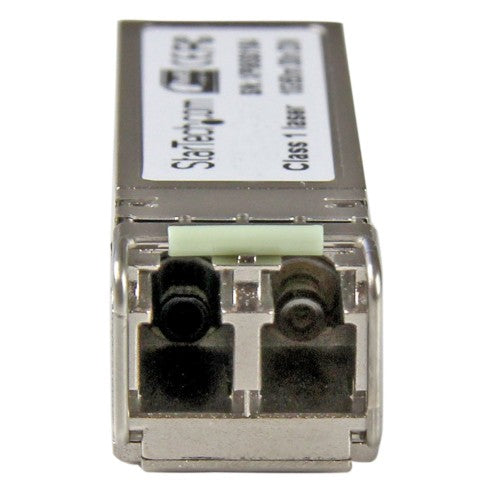

StarTech.com Cisco SFP-10G-SR Compatible SFP+ Module - 10GBASE-SR - 10GbE Multimode Fiber MMF Optic Transceiver - 10GbE SFP+ - LC 300m - 850nm - DDM Cisco Firepower, ASR9000, C9300 (SFP10GSRST)
Key Features
- 100% CISCO SFP-10G-SR COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, C9300, C3850, C9500 and others
- TECHNICAL SPECS: 10GBASE-SR / 10 Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 300m (984ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The SFP10GSRST is a Cisco SFP-10G-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multimode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft.)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Wavelength-division multiplexing (WDM) |
No |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
11100 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
11811" (300 m) |
| Wavelength |
850 nm |
| Duplex system |
Full, Half |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
1967709 h |
| Brand compatibility |
Cisco |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
1967709 h |
| Brand compatibility |
Cisco |
| Certification |
CE, FCC, UL, REACH |
| Power |
|---|
| Power consumption (typical) |
1.2 W |
| Certificates |
|---|
| Certification |
CE, FCC, UL, REACH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
11100 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Weight & dimensions |
|---|
| Width |
0.472" (12 mm) |
| Depth |
2.36" (60 mm) |
| Height |
0.394" (10 mm) |
| Weight |
0.776 oz (22 g) |
| Package depth |
1.85" (47 mm) |
| Package width |
2.28" (58 mm) |
| Package height |
0.63" (16 mm) |
| Package weight |
1.8 oz (51 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package depth |
1.85" (47 mm) |
| Package width |
2.28" (58 mm) |
| Package height |
0.63" (16 mm) |
| Package weight |
1.8 oz (51 g) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
10.1" (256 mm) |
| Master (outer) case length |
11.9" (303 mm) |
| Master (outer) case height |
8.11" (206 mm) |
| Products per master (outer) case |
36 pc(s) |
| Harmonized System (HS) code |
85369010 |
