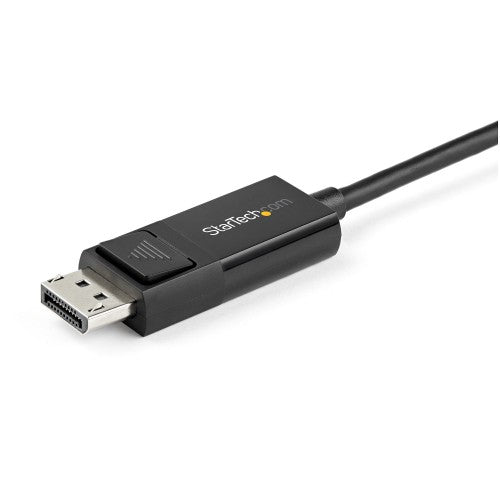

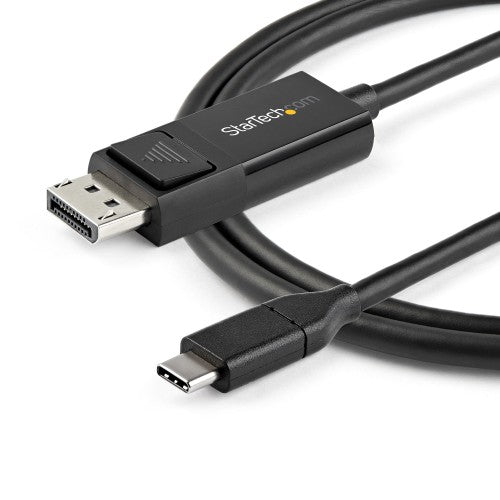

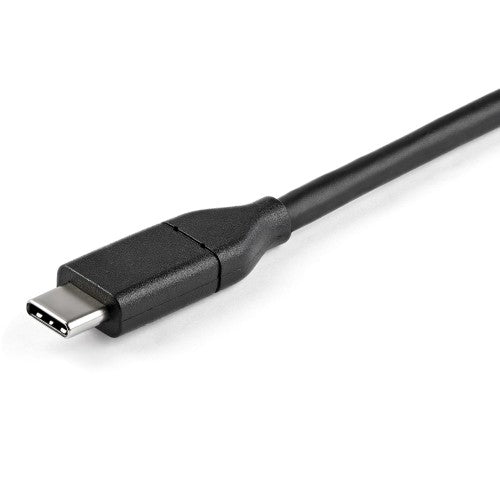

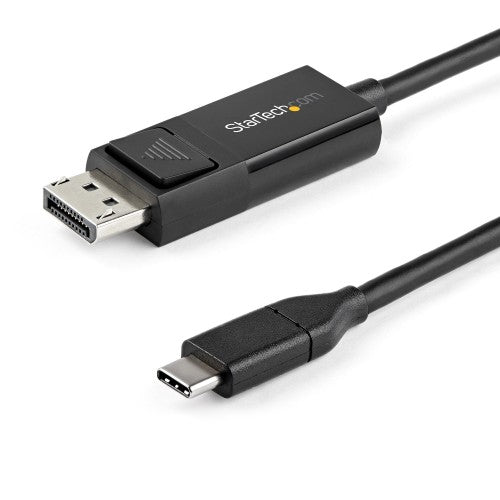

StarTech.com 6ft (2m) USB C to DisplayPort 1.2 Cable, 4K 60Hz, Bidirectional DP USB-C Video Adapter Cable for Windows, Apple M1 M2 M3 M4, USB4 Thunderbolt Compatible
Key Features
- HIGH PERFORMANCE: 6.6ft/2m Reversible USB-C to DisplayPort 1.2 (21.6Gbps) cable or DP to USB-C cable supports 4K 60Hz/HBR2/HDR/HDCP 2.2/1.4; 1080p and Thunderbolt compatible
- REVERSIBLE CABLE: This DisplayPort to USB C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
- DP OR USB-C DP ALT MODE HOST COMPATIBLE: USB-C video cable for Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Laptop 3/Pro, MacBook Pro/Air, HP EliteBook/Spectre/ZBook
- DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors from LG, Dell UltraSharp, Acer, Asus Pro Art
- INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection
Description
Connect a USB-C™ device to a DisplayPort™ display, or a DP device to a USB-C display with this versatile, bi-directional cable
This USB-C™ to DisplayPort™ 1.2 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.
Ultra HD 4K Resolution at 60Hz
This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer's USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.
CDP2DP2MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Chrontel - CH7213C-BF, VIA Labs - VL170 |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
78.7" (2 m) |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Bandwidth |
21600 MB/s |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| HDCP version |
1.4/2.2 |
| High Dynamic Range (HDR) supported |
Yes |
| Supported audio channels |
7.1 |
| HBR2 support |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Width |
8.66" (220 mm) |
| Height |
0.472" (12 mm) |
| Depth |
80.2" (2038 mm) |
| Weight & dimensions |
|---|
| Width |
8.66" (220 mm) |
| Height |
0.472" (12 mm) |
| Depth |
80.2" (2038 mm) |
| Weight |
2.72 oz (77 g) |
| Package width |
8.9" (226 mm) |
| Package depth |
4.88" (124 mm) |
| Package height |
0.472" (12 mm) |
| Package weight |
2.96 oz (84 g) |
| Packaging data |
|---|
| Package width |
8.9" (226 mm) |
| Package depth |
4.88" (124 mm) |
| Package height |
0.472" (12 mm) |
| Package weight |
2.96 oz (84 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Master (outer) case width |
12.9" (327 mm) |
| Master (outer) case length |
19.6" (497 mm) |
| Master (outer) case height |
8.35" (212 mm) |
| Products per master (outer) case |
80 pc(s) |
| Harmonized System (HS) code |
84733080 |
