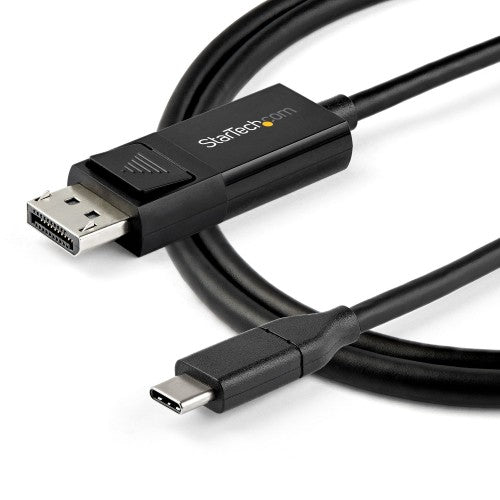

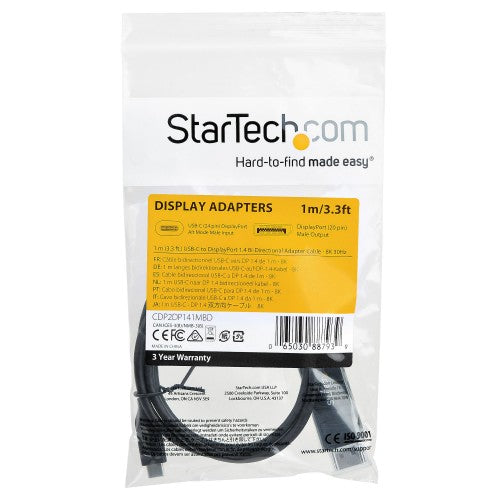

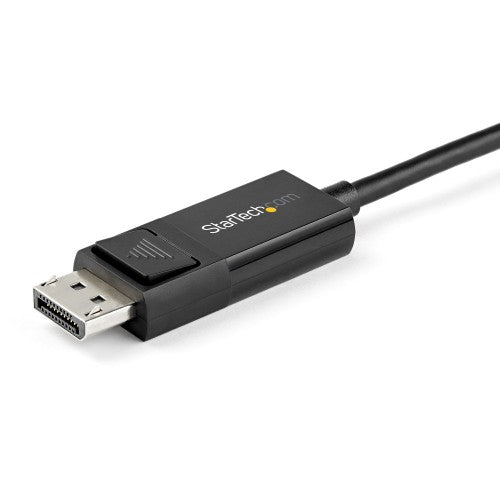

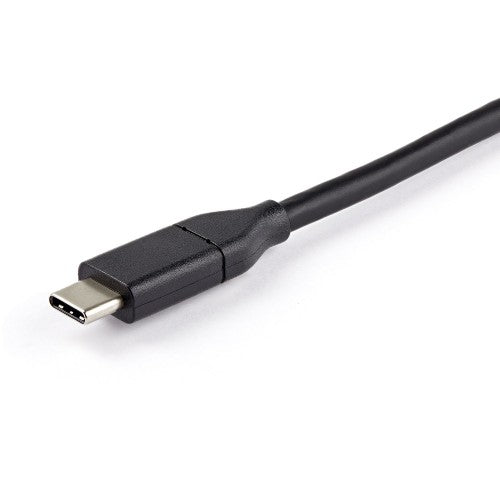

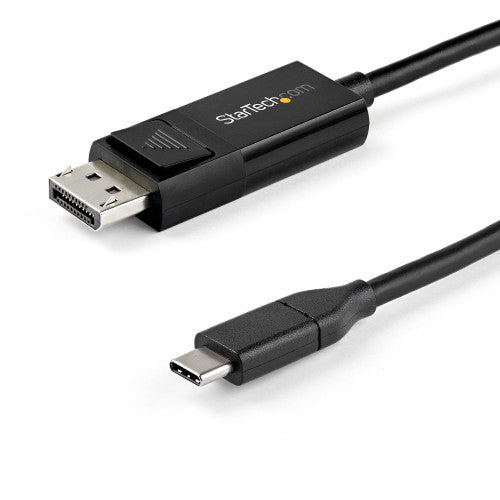

StarTech.com 3ft (1m) USB C to DisplayPort 1.4 Cable, 8K 60Hz, Bidirectional DP USB-C Video Adapter Cable for Windows, Apple M1 M2 M3 M4, USB4 Thunderbolt Compatible
Key Features
- HIGH PERFORMANCE: 3.3ft/1m reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4; DisplayPort to USB-C bidirectional cord; Thunderbolt compatible
- REVERSIBLE CABLE: When connecting a USB-C computer to a DisplayPort monitor, the computer must support USB-C DisplayPort Alternative mode (DP alt-mode); When connecting a DisplayPort computer to a USB-C monitor, the monitor must have its own power supply
- IMAGE QUALITY: This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables; The amplifier also increases the max. supported DP cable length compared to other brands
- DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB-C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors; NOTE: Does not support portable displays / monitors that do not have an independent power supply
- INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection; NOTE: It is recommended to connect the USB-C connector first
Description
USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3
This USB-C™ to DisplayPort™ 1.4 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 60Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Easy & Clutter-Free Installation
At 3.3 ft. (1 m) in length, this bi-directional adapter cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For longer installations, we also offer a 6.6 ft. (2 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP141MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
• Your USB-C device must support DP Alt Mode to work with this cable.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
• This cable is not compatible with the Surface Dock 2
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
| DisplayPort version |
1.4 |
| Product colour |
Black |
| Cable length |
39.4" (1 m) |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
7680 x 4320 pixels |
| Supported graphics resolutions |
3840 x 2160, 7680 x 4320 |
| HDCP |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
120 Hz |
| HDCP version |
1.4/2.2 |
| High Dynamic Range (HDR) supported |
Yes |
| Supported audio channels |
7.1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
1.62 oz (46 g) |
| Package width |
8.86" (225 mm) |
| Package depth |
4.92" (125 mm) |
| Package height |
0.591" (15 mm) |
| Package weight |
1.76 oz (50 g) |
| Packaging data |
|---|
| Package width |
8.86" (225 mm) |
| Package depth |
4.92" (125 mm) |
| Package height |
0.591" (15 mm) |
| Package weight |
1.76 oz (50 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
12.8" (325 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.27" (210 mm) |
| Products per master (outer) case |
100 pc(s) |
| Harmonized System (HS) code |
84733080 |
