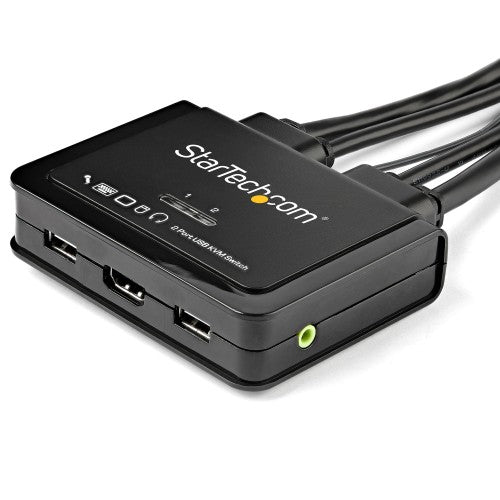

StarTech.com 2 Port HDMI KVM Switch - 4K 60Hz - Compact Dual Port UHD/Ultra HD USB Desktop KVM Switch w/Integrated 4ft Cables & Audio - Bus Powered & Remote Switching - MacBook ThinkPad (SV211HDUA4K)
Key Features
- Operate and access two HDMI computers from one workstation at 4K 60Hz resolutions

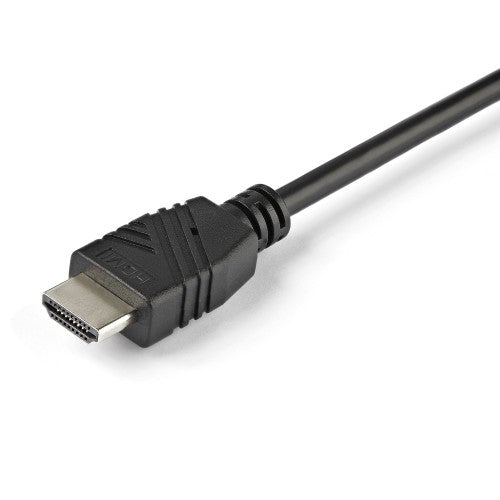

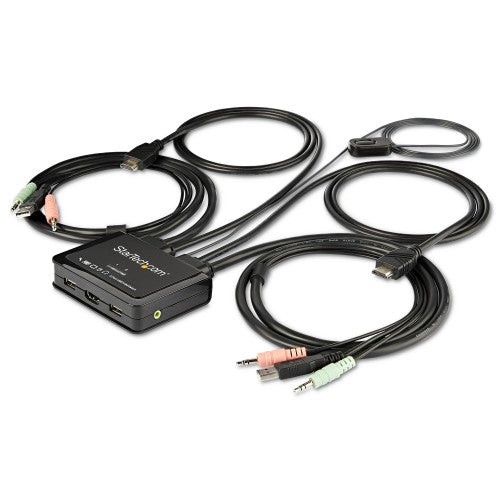

- Integrate into your set up quickly and easily with built-in 4 ft. KVM cables (including remote switch) and a space-saving design
- Switch PCs via push-button, hot-keys or switching software
- Switching software supports Windows, Windows Server & macOS platforms
- USB Powered - No external power adapter required

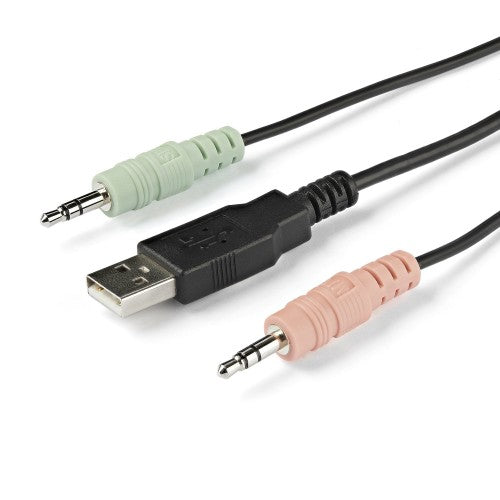

- Independent audio/mic switching for uninterrupted audio Analog (3.5mm) and HDMI audio supported
Description
KVM Switch with Audio | 3.5mm Audio Input & Output | HDMI | USB-Powered
The SV211HDUA4K 2-Port 4K60Hz HDMI Cable KVM Switch with Audio and Remote Switching Control gives you control of two HDMI, USB equipped computers with a single monitor, keyboard, mouse and audio peripheral set.
4K60 Picture & Full Audio Support
The Dual HDMI KVM switch supports resolutions up to 4K at 60Hz and can drive one large HDMI display with ease, maximizing viewing space. With support for separate 3.5 mm stereo audio, the KVM switch delivers full audio compatibility across connected computers.
OS Independent
This HDMI KVM switch is OS independent, meaning it can work with virtually any laptop or desktop computer.
Simple to Operate

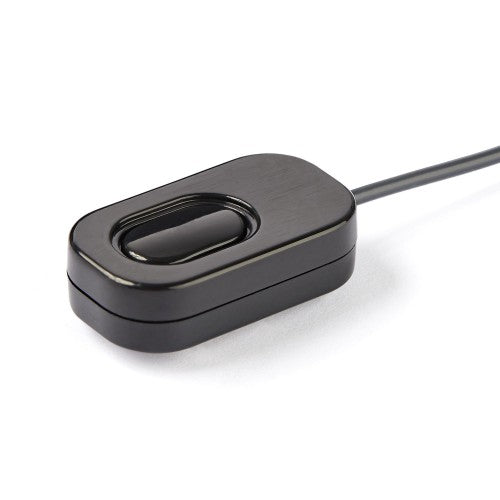

The switch features a remote push-button on a 1.5 meter (4ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and optional PC or Mac® compatible software for switching between systems.
StarTech.com KVM Switches & Consoles
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
The SV211HDUA4K is backed by a 2-year StarTech.com warranty and free lifetime multilingual technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB connector type |
USB Type-A |
| Number of computers controlled |
1 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| Performance |
|---|
| Daisy chain |
No |
| Data transfer rate (max) |
0.48 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Scan interval |
10,20,30,40,50,60 s |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Scan interval |
10,20,30,40,50,60 s |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Compliance certificates |
RoHS |
| Design |
|---|
| Mean time between failures (MTBF) |
1012884 h |
| Product colour |
Black |
| Rack mounting |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC, REACH |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Width |
3.82" (97 mm) |
| Depth |
52" (1320 mm) |
| Height |
0.984" (25 mm) |
| Weight |
15.2 oz (431 g) |
| Package width |
9.84" (250 mm) |
| Package depth |
6.3" (160 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
18.4 oz (522 g) |
| Packaging data |
|---|
| Package width |
9.84" (250 mm) |
| Package depth |
6.3" (160 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
18.4 oz (522 g) |

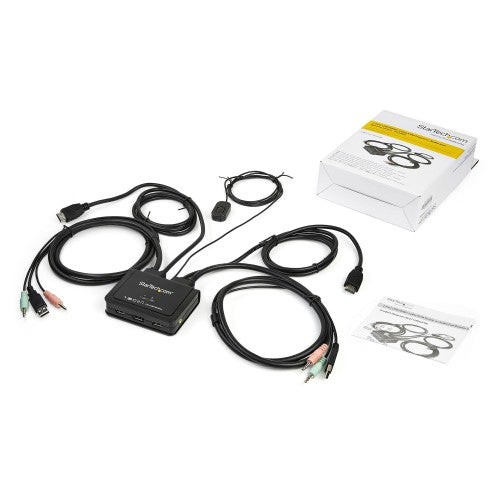

| Packaging content |
|---|
| Quick installation guide |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Other features |
|---|
| IP control |
No |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
13.9" (353 mm) |
| Master (outer) case length |
17.4" (443 mm) |
| Master (outer) case height |
13.6" (345 mm) |
| Products per master (outer) case |
20 pc(s) |
| Harmonized System (HS) code |
85176200 |
