StarTech.com USB-C Dock - Dual Monitor 1080p HDMI Laptop Docking Station - 65W Power Delivery - 1x USB-C, 3x USB-A, Ethernet - Dual Video Display USB 3.1 Gen 1 Type-C Dock - Mac & Windows (DK30CHHPD)
Key Features
- FULL FEATURE USB-C DOCKING STATION: Offers dual screen 1080p HDMI video, 3x USB-A, 1x USB-C, 65W Power Delivery, Gigabit Ethernet and 3.5mm audio providing an efficient USB 3.1 5Gbps docking solution
- WIDE DEVICE COMPATIBILITY: Compatible with Thunderbolt 3 and 4, this universal USB Type-C docking station works with HP, Lenovo, Dell, MacBook Pro and Air (2 extended displays on Macbooks w/ Intel processor or Apple M1/M2 chip), Microsoft Surface & Chromebooks
- EASY DEPLOYMENT: This USB-C dock supports all major operating systems (Windows, macOS, ChromeOS, Ubuntu) and includes DisplayLink update utilities for hassle-free IT management
- EASY WORKSPACE INTEGRATION: This universal USB 3.0 Type-C dock is designed to fit into any work environment including shared workspaces or hoteling; It features mounting holes, K-Slot & 1m USB-C cable
- POWER & CHARGE YOUR LAPTOP: This USB Type-C port replicator powers and charges while you work with 65W PD for ultrathin laptops like Thinkpad T Series, X1 Carbon, Surface Pro7, & USB-C Chromebooks
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
Description
USB 3.1 Gen 1 Type-C Docking Station| Mac & Windows® | 3x USB-A | 1x USB-C | GbE | Mountable | 65W PD
This USB-C docking station is ideal for use in large organizations to meet widespread office productivity requirements and compatibility with all USB-C and Thunderbolt 3 laptops. The USB-C dock features support for Dual HDMI monitors, 65W Power Delivery 3.0, fast-charge, and both USB-C and USB-A peripheral ports.

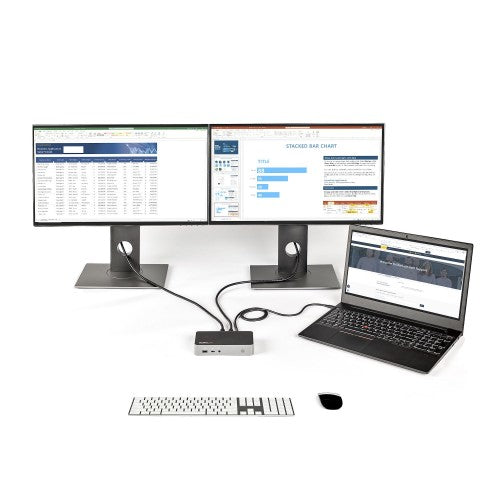

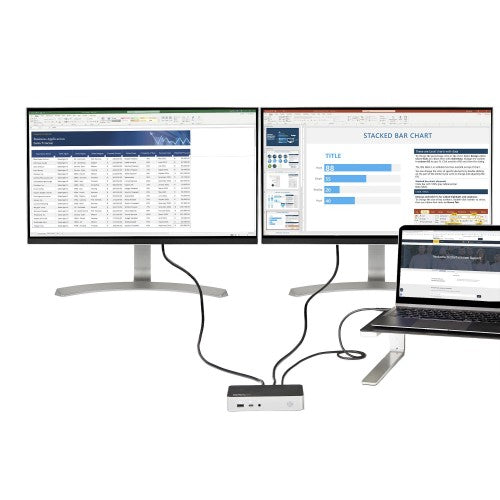

Dual Full HD 1080p HDMI Displays
The USB-C docking station adds dual HDMI monitors support to your workstation, with full high definitions resolutions of 1920x1080 or 1920x1200 at 60Hz. With more screen space, you can access multiple applications and reference material on one display while composing on the other.
Charge Devices via USB-C & USB-A
The USB-A and USB-C charge ports can charge your smartphone, tablet or other USB peripherals whether you're working or away from your desk, and even if you disconnect your laptop.
65W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 65W PD for faster charging, using the 90W power adapter.
Convenient Setup with a Modest Desktop Footprint
With a smaller size and extended length 3.3’ (1 meter) host cable, this USB-C dock fits easily into a workspace environment. Even where desk space is limited, this dock can be mounted to the wall, monitor or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets are specifically designed for our docks and hubs to give you the customized setup you need.

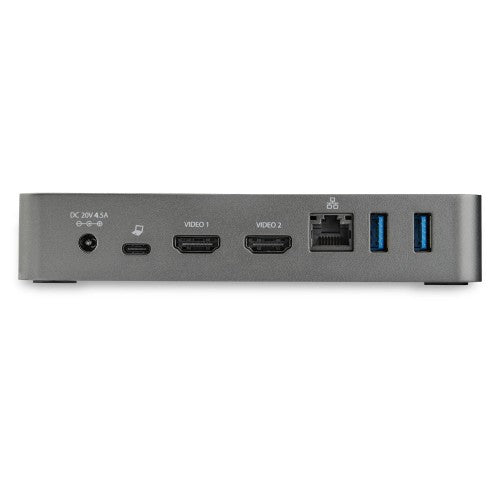

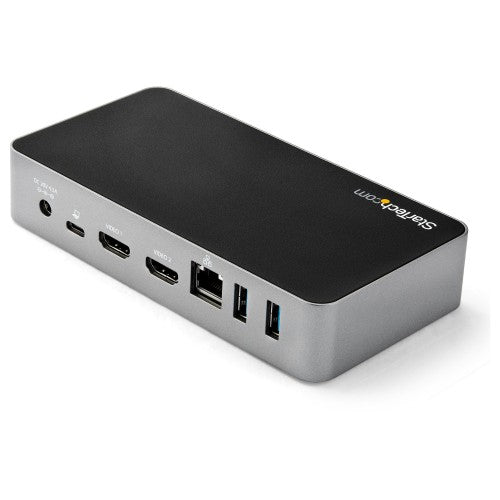

The Connections You Need

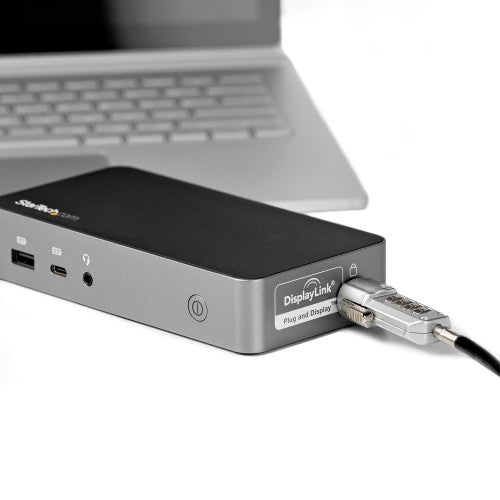

Connect your devices with four USB 3.1 ports: 1x USB -C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (Wake-on-LAN) and a 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The IT Pro’s Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
DK30CHHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
60 W |
| Network |
|---|
| Full duplex |
No |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
1920 x 1200 pixels |
| Full duplex |
No |
| On/off switch |
Yes |
| Product colour |
Black, Silver |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Data transfer rate |
5 Gbit/s |
| Certification |
CE, FCC, REACH |
| Cable lock slot type |
Kensington |
| Technical details |
|---|
| Product colour |
Black, Silver |
| Cable lock slot |
Yes |
| Data transfer rate |
5 Gbit/s |
| Compliance certificates |
RoHS |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
9.65" (245 mm) |
| Master (outer) case length |
13.6" (345 mm) |
| Master (outer) case height |
6.5" (165 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Input current |
1.5 A |
| Power plug type |
Type N |
| Compatible power plug types |
JP, US |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
4.5 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Other operating systems supported |
ChromeOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Weight |
10.6 oz (300 g) |
| Width |
3.15" (80 mm) |
| Depth |
6.1" (155 mm) |
| Height |
0.984" (25 mm) |
| Package weight |
2.27 lbs (1.03 kg) |
| Package width |
5.71" (145 mm) |
| Package depth |
9.21" (234 mm) |
| Package height |
3.23" (82 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Product colour |
Black, Silver |
| Cable lock slot |
Yes |
| Certification |
CE, FCC, REACH |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
2.27 lbs (1.03 kg) |
| Package width |
5.71" (145 mm) |
| Package depth |
9.21" (234 mm) |
| Package height |
3.23" (82 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-C |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Logistics data |
|---|
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
9.65" (245 mm) |
| Master (outer) case length |
13.6" (345 mm) |
| Master (outer) case height |
6.5" (165 mm) |
