Description
10/100 BASE-T, 3.9" (480 x 128) LCD, PoE, 278 x 278 x 61 mm, 1.85 Kg

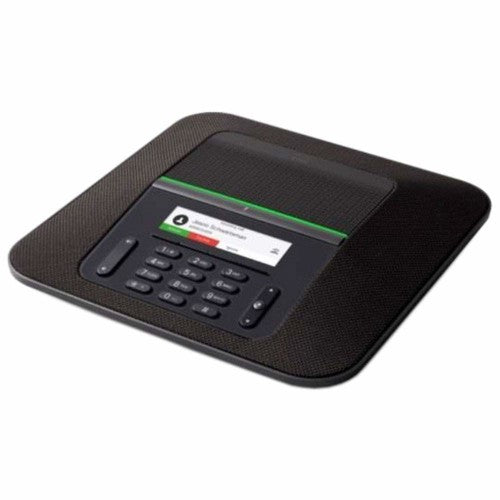

The Cisco IP Conference Phone 8832 provides a simple, flexible, scalable solution that meets the challenges of the most diverse rooms. With the base unit alone, it provides 360-degree coverage for any 20x20-foot room and up to 10 participants. With the optional wired extension microphone kit, it covers any 20x34-foot room and up to 22 participants. With the optional wireless extension microphone kit (using Digital Enhanced Cordless Telecommunications [DECT] technology), it covers any 20x40-foot room and up to 26 participants. With a daisy-chain configuration of two 8832 units along with the optional wireless extension microphone kit, it covers up to a 20x57-foot room and up to 42 participants. It is ideal for executive offices, conference rooms, and boardrooms.
The 8832 unit has a sleek form by using approachable materials for a differentiated, modern look and feel. The key design elements include the following:
- 3.9-inch 480x128-pixel color LCD
- Textile cover for soft touch and durability
- Large mute button in the middle of the device for easy access from all angles
- LED indicator above the mute button showing the call status
- Raised edge for easier handling and repositioning on tabletop
- Crisp, precise button tactility
- Single USB-C port on the device to minimize the number of cables on the table (an Ethernet injector is required for any non-Wi-Fi deployment)
The optional wired microphone kit includes two wired microphones with anodized aluminum top housing.
Key Features
- ● 360-degree room coverage; base unit alone covers up to a 10-foot microphone pickup range
- ● Single line with a user experience of multiple calls per line
- ● Session Initiation Protocol (SIP) signaling
- ● Codec support, including G.711(u/A), G.729a, G.729ab, iLBC, G.722, and OPUS
- ● IPv6 support
- ● Secure Hash Algorithm (SHA)-256 enabled for advanced security features
- ● Mobile and Remote Access (MRA) support
- ● Wi-Fi support
- ● Wired extension microphone support
- ● Wireless extension microphone support
- ● Daisy-chain support
- ● Client Matter Code (CAC) and Forced Authorization Code (FAC) Support
- ● Compatible with both IEEE 802.3af and 802.3at Power over Ethernet (PoE) Class 3 consumption (both PoE and non-PoE Ethernet injector options are available)
Description
The Cisco IP Conference Phone 8832 enhances people-centric collaboration by delivering easy-to-use audio conferencing with astounding voice quality and clarity. Newly developed microphones and loudspeakers provide the richest sound of any conference phone on the market. Our unique acoustic design includes a “studio-monitor” full-range speaker. This loudspeaker architecture provides a dynamic, detailed sound with low distortion and low-frequency clarity, making conferencing an in-person experience with exceptionally clear and natural audio quality.The Cisco IP Conference Phone 8832 provides a simple, flexible, scalable solution that meets the challenges of the most diverse rooms. With the base unit alone, it provides 360-degree coverage for any 20x20-foot room and up to 10 participants. With the optional wired extension microphone kit, it covers any 20x34-foot room and up to 22 participants. With the optional wireless extension microphone kit (using Digital Enhanced Cordless Telecommunications [DECT] technology), it covers any 20x40-foot room and up to 26 participants. With a daisy-chain configuration of two 8832 units along with the optional wireless extension microphone kit, it covers up to a 20x57-foot room and up to 42 participants. It is ideal for executive offices, conference rooms, and boardrooms.
The 8832 unit has a sleek form by using approachable materials for a differentiated, modern look and feel. The key design elements include the following:
- 3.9-inch 480x128-pixel color LCD
- Textile cover for soft touch and durability
- Large mute button in the middle of the device for easy access from all angles
- LED indicator above the mute button showing the call status
- Raised edge for easier handling and repositioning on tabletop
- Crisp, precise button tactility
- Single USB-C port on the device to minimize the number of cables on the table (an Ethernet injector is required for any non-Wi-Fi deployment)
The optional wired microphone kit includes two wired microphones with anodized aluminum top housing.
Specifications
| Features | |
|---|---|
| Product type | IP conference phone |
| Languages support | Arabic, Bulgarian, CAT, Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, LAT, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Swedish, Thai, Turkish, Ukrainian |
| Control type | Buttons |
| Product colour | Charcoal |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 3.9" |
| Display resolution | 480 x 128 pixels |
| Display illumination | Yes |
| Voice codecs | G.711Mu, G.711a, G.722, G.729A, G.729ab, OPUS, iLBC |
| Frequency range | 100 - 20000 Hz |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | IPv4, IPv6, SIP, SDP, UDP, DHCP, GARP, DNS, TFTP, HTTPS, VLAN, RTP, RTCP, Cisco Discovery Protocol, LLDP |
| Call hold | Yes |
| Call waiting | Yes |
| Certification | CE Markings per directives 2014/30/EU and 2014/53/EU and 2014/35/EU UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition (including A11 and A12) IEC 60950 Second Edition (including A11 and A12) EN 60950-1 IEC 60950-1 AS/NZS 60950.1 47CFR Part 15 (CFR 47) Class B AS/NZS CISPR32 Class B CISPR32 Class B EN55032 Class B EN 300 386 ICES003 Class B VCCI Class B EN61000-3-2 EN61000-3-3 EN61000-4-2 IEC61000-4-2 EN61000-4-3 IEC61000-4-3 EN61000-4-6 IEC61000-4-6 KN22 Class B EN55024 CISPR24 KN24 Armadillo Light FCC Part 2.1093 (BT RF Exposure TR) RSS-102 (BT RF Exposure TR) RSS-210 RSS-213 RSS-247 EN 300 328 EN 300 440 EN 301 406 EN 50385 (BT RF Exposure TR) EN 301-489-1 EN 301-489-3 EN 301-489-6 EN 301-489-17 EN 301 893 NCC LP0002 TIA810B TIA920A |
| Security algorithms | EAP-FAST, EAP-TLS, HTTPS, SHA-256, SRTP, SSH |
| Conference call | Yes |
| Call forwarding | Yes |
| Microphone mute | Yes |
| Call transfer | Yes |
| Call management | |
| Speed dialling | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 10.9" (278 mm) |
| Depth | 10.9" (278 mm) |
| Height | 2.4" (61 mm) |
| Weight | 4.08 lbs (1.85 kg) |
| Packaging content | |
| Cables included | USB |
| AC adapter included | Yes |
