Micro ATX/Mini ITX, 3.5" x 8, 2.5" x 2, 3.5"/2.5" x 2, USB 3.0
Key Features
- Highly effective dual chamber case layout for best possible cooling with excellent water cooling compatibility, supporting up to four radiators simultaneously

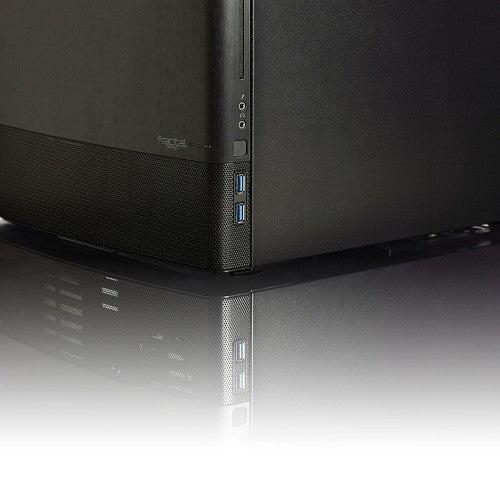

- Minimalistic design with an elegant brushed aluminum front panel

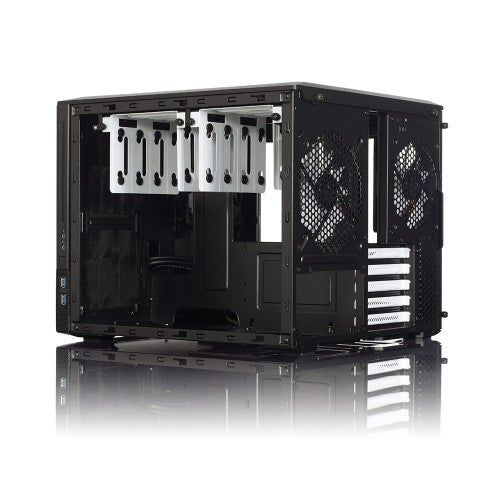

- Unique hard drive mounting system, fitting up to 8x 3.5″, 4x 2.5” or up to 10x 3.5”, 2x 2.5″ drives HDD/SSD
- Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans, fan controller included
- Featuring a window side panel to show off your set up in style
- Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2x 2.5″ drives
- Five expansion slots that allows for multiple GPU setups
Reasons To Buy
Water-cooling ready
Excellent water cooling support with space for up to four radiators simultaneously.
Showcase your hardware
Featuring a window side panel to show off your set up in style
3x Silent Fans included
Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans
Description

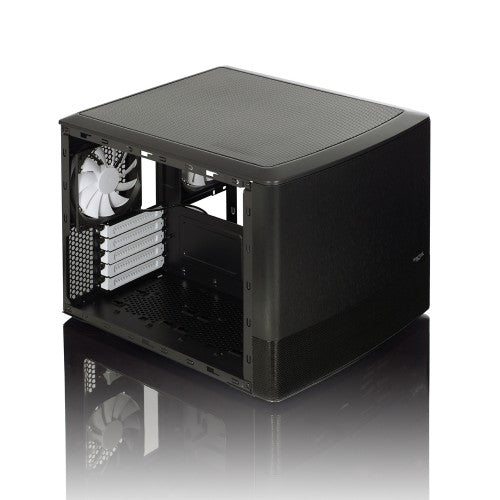

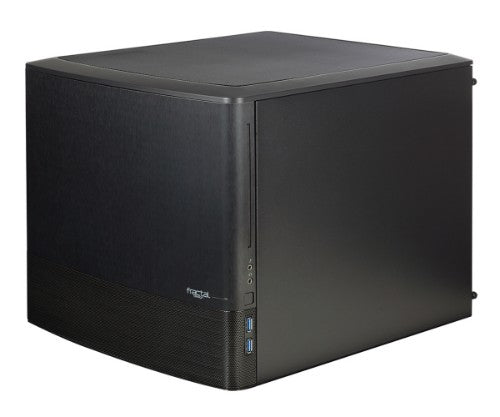

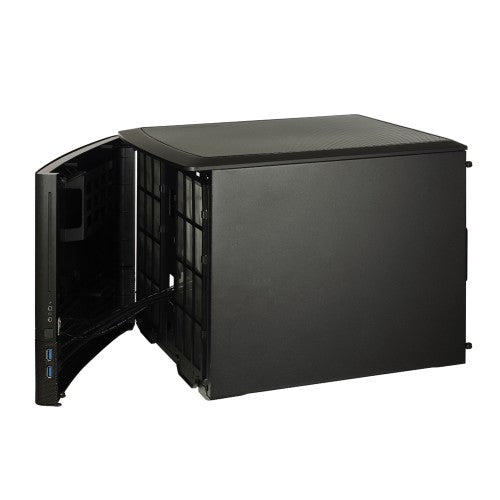

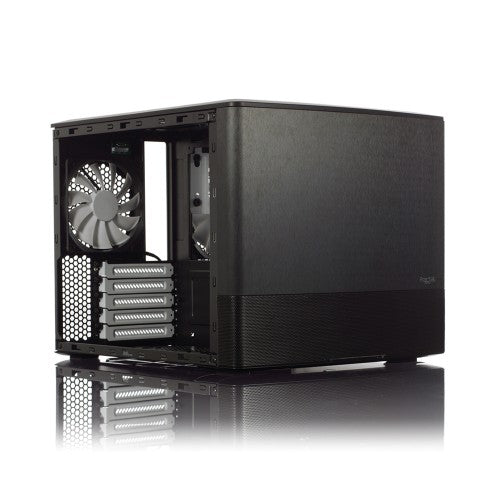

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

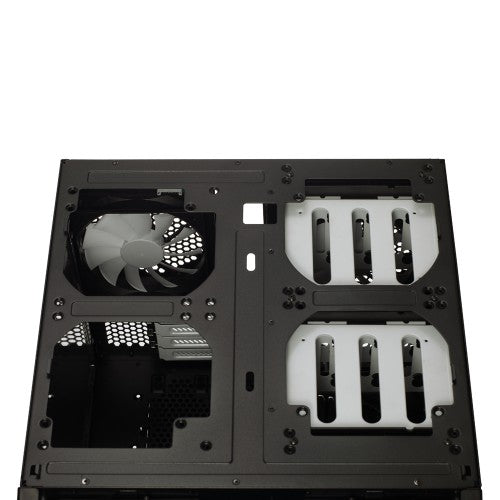

The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

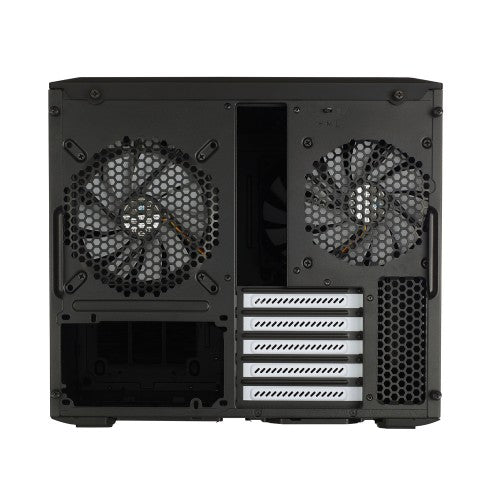

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed.
Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives.
The flexibility of this case really gives the users the possibility to create their optimal system build.
Specifications
| Design |
|---|
| Volume |
40.3 L |
| Anti-dust filter |
Yes |
| Number of external 5.25" bays |
0 |
| Material |
Plastic, Steel |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
10 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
10 |
| Supported motherboard form factors |
micro ATX, Mini-ATX |
| Side window |
Yes |
| LED indicators |
HDD, Power |
| Illumination |
No |
| Cable management |
Yes |
| Product colour |
Black |
| Number of expansion slots |
5 |
| Maximum CPU cooler height |
6.3" (16 cm) |
| Maximum graphics card length |
12.6" (32 cm) |
| Maximum PSU length |
10.2" (26 cm) |
| Type |
PC |
| Form factor |
Cube |
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
10 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
10 |
| Supported motherboard form factors |
micro ATX, Mini-ATX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
Yes |
| Product colour |
Black |
| Number of expansion slots |
5 |
| Maximum CPU cooler height |
6.3" (16 cm) |
| Maximum graphics card length |
12.6" (32 cm) |
| Maximum PSU length |
10.2" (26 cm) |
| Type |
PC |
| Form factor |
Cube |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Plastic, Steel |
| Indication |
|---|
| LED indicators |
HDD, Power |
| Illumination |
No |
| Ergonomics |
|---|
| LED indicators |
HDD, Power |
| Cable management |
Yes |
| Power supply |
|---|
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Front radiator installed |
No |
| Front radiator sizes supported |
240 mm |
| Rear radiator installed |
No |
| Top radiator installed |
No |
| Top radiator sizes supported |
240,280 mm |
| Front fans installed |
1x 120 mm |
| Number of front fans supported (max) |
4 |
| Front fans diameters supported |
120 mm |
| Rear fans installed |
2x 120 mm |
| Number of rear fans supported (max) |
2 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
4 |
| Top fans diameters supported |
120,140 mm |
| Liquid cooling capability |
Yes |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Volume |
40.3 L |
| Width |
13.5" (344 mm) |
| Depth |
15.3" (389 mm) |
| Height |
12.1" (307 mm) |
| Weight |
13.2 lbs (6 kg) |
| Packaging data |
|---|
| Package width |
14.6" (370 mm) |
| Package height |
18.4" (468 mm) |
| Package depth |
16.2" (412 mm) |
| Package weight |
17 lbs (7.7 kg) |
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Other features |
|---|
| Volume |
40.3 L |
| Manual |
Yes |
| Harmonized System (HS) code |
84733080 |
