StarTech.com Palo Alto Networks CG Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m (CG-ST)
Key Features
- 100% PALO ALTO NETWORKS CG COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Palo Alto Networks switches and routers to deliver reliable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-T / 1Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Palo Alto Networks routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
1000 Mbps (1 Gbps) | Copper | RJ-45 | 100 m (328 ft) | Lifetime Warranty

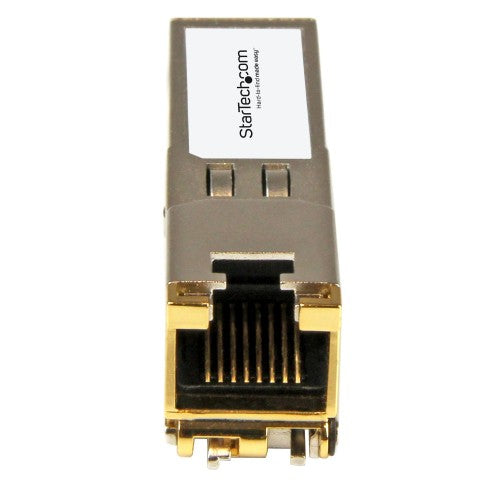

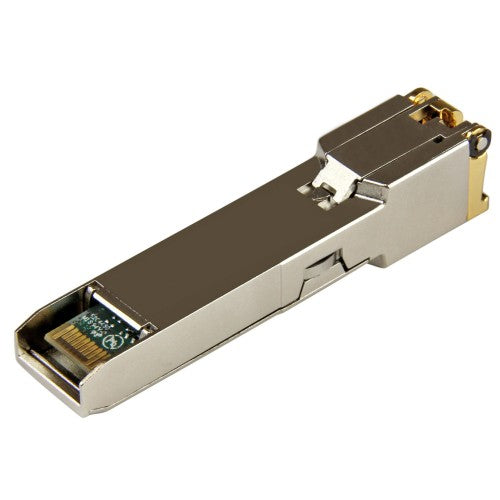

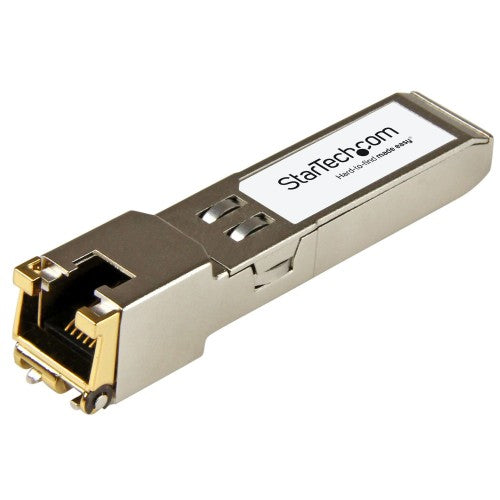

The CG-ST is a Palo Alto Networks PAN-SFP-CG compatible copper transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Copper
• Connection Type: RJ-45
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 510,469,759 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Network |
|---|
| SFP transceiver type |
Copper |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Performance |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
CG |
| Mean time between failures (MTBF) |
510469759 h |
| Brand compatibility |
Palo Alto Networks |
| SFP transceiver type |
Copper |
| Ethernet LAN |
Yes |
| Digital Diagnostics Monitoring (DDM) |
No |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Maximum transfer distance |
3937" (100 m) |
| Duplex system |
Full |
| Ethernet interface type |
Gigabit Ethernet |
| Copper ethernet cabling technology |
1000BASE |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Certification |
CE, FCC, UR, REACH |
| Compatible products |
CG |
| Mean time between failures (MTBF) |
510469759 h |
| Brand compatibility |
Palo Alto Networks |
| Technical details |
|---|
| Ethernet LAN |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
2.68" (68 mm) |
| Depth |
0.551" (14 mm) |
| Height |
0.543" (13.8 mm) |
| Weight |
0.529 oz (15 g) |
| Package depth |
4.53" (115 mm) |
| Package width |
3.54" (90 mm) |
| Package height |
1.22" (31 mm) |
| Package weight |
1.76 oz (50 g) |
| Packaging data |
|---|
| Package depth |
4.53" (115 mm) |
| Package width |
3.54" (90 mm) |
| Package height |
1.22" (31 mm) |
| Package weight |
1.76 oz (50 g) |
| Certificates |
|---|
| Certification |
CE, FCC, UR, REACH |
| Logistics data |
|---|
| Master (outer) case width |
3.54" (90 mm) |
| Master (outer) case length |
4.53" (115 mm) |
| Master (outer) case height |
1.22" (31 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
| Quantity per pack |
1 pc(s) |
