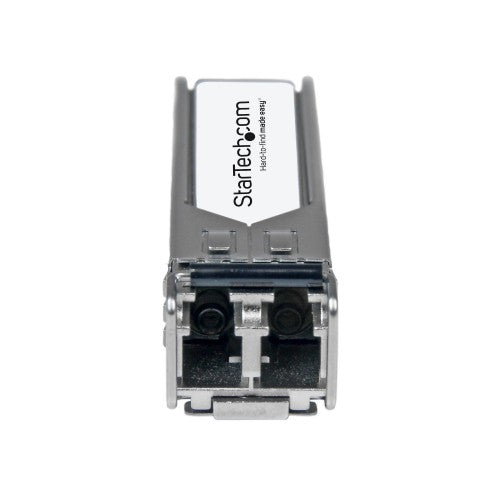

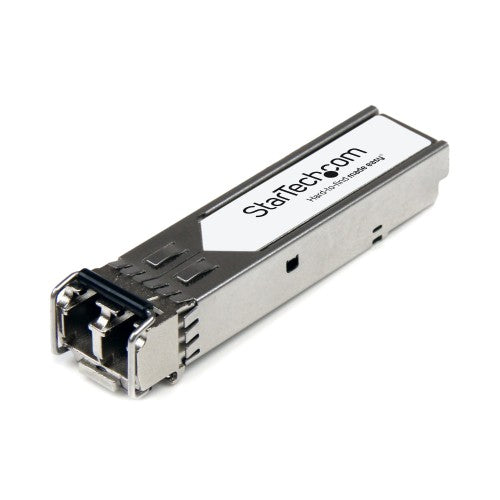

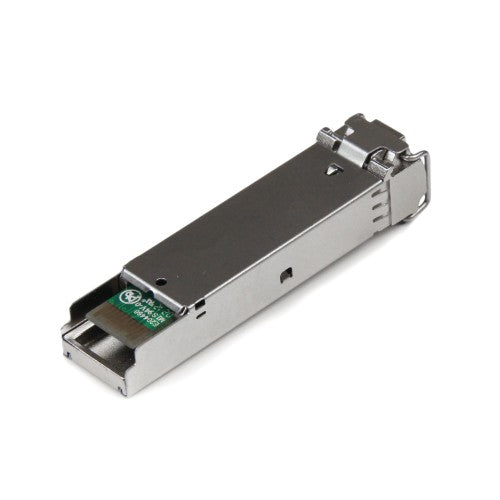

StarTech.com Extreme Networks 10301 Compatible SFP+ Module - 10GBASE-SR - 10GbE Multimode Fiber MMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM (10301-ST)
Key Features
- 100% EXTREME NETWORKS 10301 COMPATIBLE SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver reliable 10GbE connectivity
- TECHNICAL SPECS: 10GBASE-SR / 10Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 300m (984ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Extreme Networks routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The 10301-ST is an Extreme Networks 10301 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Performance |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Compatible products |
10301 |
| Mean time between failures (MTBF) |
498745585 h |
| Brand compatibility |
Extreme Networks |
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
11811" (300 m) |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Fiber ethernet cabling technology |
10GBASE |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Silver |
| Hot-swap |
Yes |
| Certification |
CE, FCC, UR, REACH |
| Compatible products |
10301 |
| Mean time between failures (MTBF) |
498745585 h |
| Brand compatibility |
Extreme Networks |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Weight & dimensions |
|---|
| Width |
2.3" (58.4 mm) |
| Depth |
0.547" (13.9 mm) |
| Height |
0.496" (12.6 mm) |
| Weight |
0.705 oz (20 g) |
| Package depth |
4.53" (115 mm) |
| Package width |
3.54" (90 mm) |
| Package height |
1.22" (31 mm) |
| Package weight |
1.76 oz (50 g) |
| Packaging data |
|---|
| Package depth |
4.53" (115 mm) |
| Package width |
3.54" (90 mm) |
| Package height |
1.22" (31 mm) |
| Package weight |
1.76 oz (50 g) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC, UR, REACH |
| Logistics data |
|---|
| Master (outer) case width |
3.54" (90 mm) |
| Master (outer) case length |
4.53" (115 mm) |
| Master (outer) case height |
1.22" (31 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
| Quantity per pack |
1 pc(s) |
