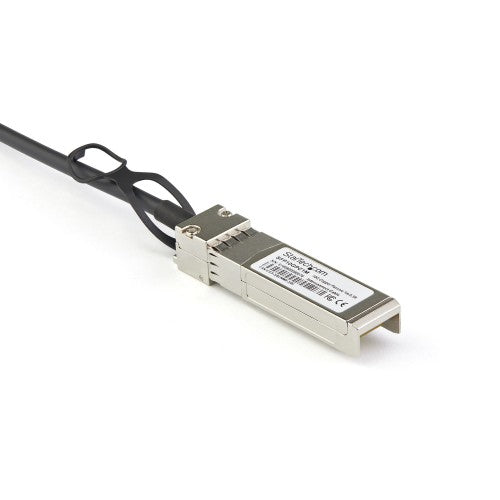

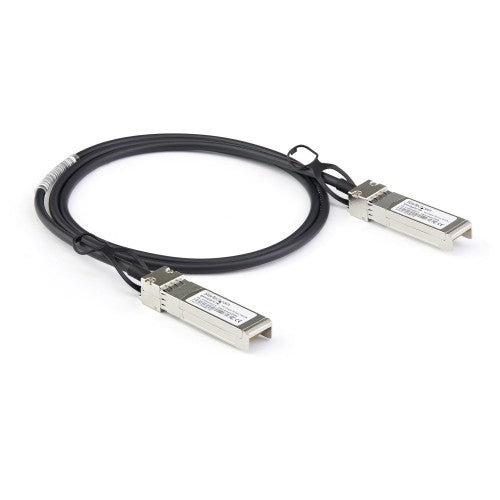

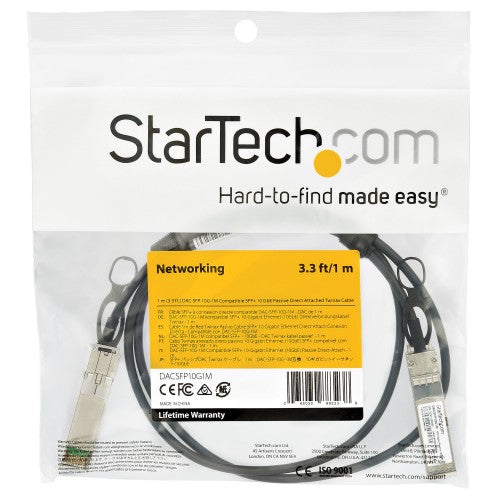

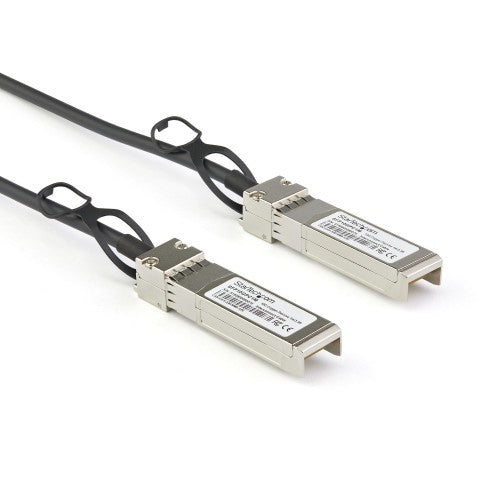

StarTech.com Dell EMC DAC-SFP-10G-1M Compatible 1m 10G SFP+ to SFP+ Direct Attach Cable Twinax - 10GbE SFP+ Copper DAC 10 Gbps Low Power Passive Mini GBIC/Transceiver Module DAC (DACSFP10G1M)
Key Features
- 100% DELL EMC DAC-SFP-10G-1M COMPATIBLE DAC: 10G direct attach cable works with Dell EMC switches and is MSA compliant
- TECHNICAL SPECS: 1m (3.3ft) / 10 Gbps / Passive Twinax (Copper) / 2 x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Description
10 Gbps | Passive Copper Cable | 1 m (3.3ft) | Lifetime Warranty
The DACSFP10G1M is a Dell EMC DAC-SFP-10G-1M compatible direct-attach copper SFP+ cable that’s designed, programmed and tested to work with Dell EMC brand compatible switches and routers and complies with MSA industry standards. This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. Designed for high-speed performance, this low-power, low-latency 10GbE cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Cable length |
39.4" (1 m) |
| Data transfer rate |
10 Gbit/s |
| Brand compatibility |
Dell |
| Product colour |
Black |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| InfiniBand protocol |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Certification |
CE, FCC |
| Harmonized System (HS) code |
85447000 |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
REACH, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Weight |
2.61 oz (74 g) |
| Cable length |
39.4" (1 m) |
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.57" (40 mm) |
| Package weight |
2.96 oz (84 g) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
1.57" (40 mm) |
| Package weight |
2.96 oz (84 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Connector 1 |
SFP+ |
| Connector 2 |
SFP+ |
| Cable length |
39.4" (1 m) |
| Compliance certificates |
REACH, RoHS |
| Data transmission |
|---|
| Data transfer rate |
10 Gbit/s |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
7.87" (200 mm) |
| Master (outer) case length |
8.66" (220 mm) |
| Master (outer) case height |
1.57" (40 mm) |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
85447000 |
