4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, Peel w/ Liner Take-Up, EZPL
Description

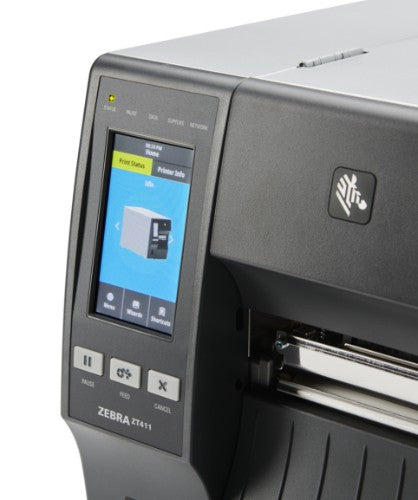

Drive productivity with the ZT400 Series. Constructed with an all-metal frame and bi-fold door, these printer are durable and allow easy access. The 4.3-inch full-color touch display with intuitive interface makes them easy to use, and shows color-coded printer status alerts. Configure your printer your way with advanced technology, along with two open communication slots. These printers keep your critical operations running efficiently today, and give you the flexibility to add features in the future as you need them.
Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications. They are easy to integrate and manage with Zebra’s Print DNA suite of applications, utilities and developer tools—all powered by Link-OS®.
Specifications
| Printing |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal / Thermal transfer |
| Print speed |
2.4 ips |
| Maximum resolution |
203 x 203 DPI |
| Performance |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal / Thermal transfer |
| Print speed |
2.4 ips |
| Maximum resolution |
203 x 203 DPI |
| Built-in barcodes |
1D, 2D |
| Paper handling |
|---|
| Maximum media length |
17716.5" (450 m) |
| Printing media thickness |
0.058 - 0.25 µm |
| Maximum printing width |
4.09" (10.4 cm) |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| USB 2.0 ports quantity |
1 |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi |
No |
| Print technology |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal / Thermal transfer |
| Print speed |
2.4 ips |
| Print quality |
|---|
| Maximum media length |
17716.5" (450 m) |
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
4.09" (10.4 cm) |
| Technical details |
|---|
| Maximum media length |
17716.5" (450 m) |
| Windows operating systems supported |
Yes |
| Maximum printing width |
4.09" (10.4 cm) |
| Product colour |
Black, Gray |
| Built-in barcodes |
1D, 2D |
| Features |
|---|
| Internal memory |
256 MB |
| Product colour |
Black, Gray |
| Built-in barcodes |
1D, 2D |
| Internal storage capacity |
512 GB |
| Design |
|---|
| Display diagonal |
4.3" |
| Colour display |
Yes |
| Product colour |
Black, Gray |
| Built-in display |
Yes |
| Display |
|---|
| Display diagonal |
4.3" |
| Colour display |
Yes |
| Built-in display |
Yes |
| Memory |
|---|
| Internal memory |
256 MB |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source type |
AC |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
10.6" (269 mm) |
| Depth |
19.5" (495 mm) |
| Height |
12.8" (324 mm) |
| Weight |
35.9 lbs (16.3 kg) |
| Software |
|---|
| Windows operating systems supported |
Yes |
