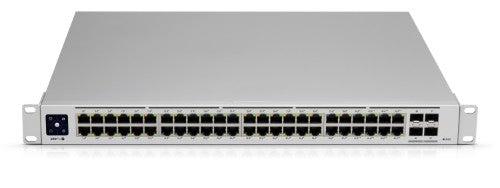

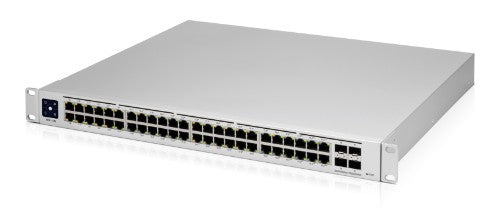

USW-Pro-48-POE Gen 2, AC/DC, Internal, 660W, (48) 10/100/1000 RJ45 Ports, (4) 1/10 Gbps SFP+, 442.4 x 399.6 x 43.7 mm
Description
Second-Generation UniFi SwitchingWe’ve redesigned our UniFi Switches from the ground up.
Near Silent CoolingOur new airflow design reduces the need for fan usage.
Powerful Hardware and SoftwareUniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power SystemUniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply FailureIn the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPowerOne UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen DisplayThe 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Auto-sensing |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Data transmission |
|---|
| Throughput |
88000 Mpps |
| Switching capacity |
176 Gbit/s |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
130.944 Mpps |
| Security |
|---|
| Authentication type |
IEEE 802.1x, RADIUS |
| DHCP features |
DHCP server |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Silver |
| LED indicators |
Activity, Link, PoE, Speed, System |
| Rack mounting |
Yes |
| Certification |
CE, FCC, IC |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Number of power supply units |
1 |
| Input current |
11.54 A |
| DC input voltage |
44 - 57 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
64 W |
| Power over Ethernet plus (PoE+) ports quantity |
40 |
| Total Power over Ethernet (PoE) budget |
600 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
17.4" (442.4 mm) |
| Depth |
15.7" (399.6 mm) |
| Height |
1.72" (43.7 mm) |
| Weight |
13.8 lbs (6.25 kg) |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Silver |
| Rack mounting |
Yes |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Indication |
|---|
| LED indicators |
Activity, Link, PoE, Speed, System |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
