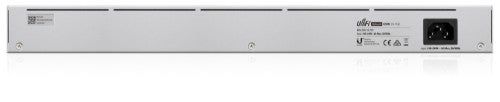

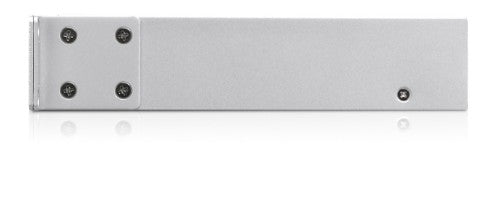

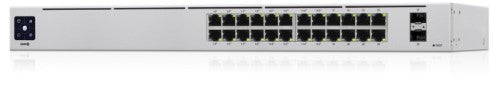

USW-24-POE Gen 2, AC/DC, Internal, 120W, (24) 10/100/1000 RJ45 Ports, (2) 1G SFP, 442.4 x 200 x 43.7 mm
Description
Second-Generation UniFi SwitchingWe’ve redesigned our UniFi Switches from the ground up.
Near Silent CoolingOur new airflow design reduces the need for fan usage.
Redundant Power SystemUniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply FailureIn the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPowerOne UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen DisplayThe 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
| Management features |
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Ports & interfaces |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Data transmission |
| Throughput |
26000 Mpps |
| Switching capacity |
52 Gbit/s |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
38.69 Mpps |
| Security |
| Authentication type |
IEEE 802.1x, RADIUS |
| Design |
| Form factor |
1U |
| Product colour |
Silver |
| LED indicators |
Activity, Link, PoE, Speed, System |
| Rack mounting |
Yes |
| Certification |
CE, FCC, IC |
| Power |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
44 - 57 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) power per port |
32 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
92 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Virtual LAN features |
| VLAN support |
Yes |
| Weight & dimensions |
| Width |
17.4" (442.4 mm) |
| Depth |
7.87" (200 mm) |
| Height |
1.72" (43.7 mm) |
| Weight |
6.61 lbs (3 kg) |
| Technical details |
| Form factor |
1U |
| Product colour |
Silver |
| Rack mounting |
Yes |
| Performance |
| Harmonized System (HS) code |
85176990 |
| Certificates |
| Certification |
CE, FCC, IC |
| Indication |
| LED indicators |
Activity, Link, PoE, Speed, System |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
