StarTech.com S-Video or Composite to HDMI Converter with Audio - 720p - NTSC & PAL - Analog to HDMI Upscaler - Mac & Windows (VID2HDCON2)
Key Features
- "Convert and upscale S-Video or analog composite input to HDMI video output
- Features on-screen display for simple setting selections
- Supports standard high-definition resolutions up to 720p
- Offers a pure hardware design, with no software installation required
- Video upscaler accepts NTSC or PAL input"
Description
Analog to HDMI® Upscaler| Mac & Windows® | On-Screen Display
This S-Video or composite to HDMI® converter with audio lets you connect an S-Video or analog composite device, along with supporting RCA L/R audio, to your HDMI monitor or television.
Hassle-Free Setup and Easy to Use
Equipped with an on-screen display (OSD) menu and convenient selector switches for easy configuration, this compact S-Video or composite to HDMI video converter installs quickly and easily, for a true plug-and-play experience.
Save on Upgrade Costs
This HDMI upscaler is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 720p to seamlessly integrate with almost any display.
By using this analog to HDMI converter you’ll be able to continue using your legacy equipment (video camera, DVD player, etc.) with your HDMI display or monitor, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching old home videos on your HD display or television.
Support for Audio
This AV (audio video) converter box features an integrated RCA L/R audio connection that combines the audio and video inputs into a single HDMI output, avoiding the hassle of running a separate audio cable to your destination display.
VID2HDCON2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Convert and upscale S-Video or analog composite input to HDMI video output
- Features on-screen display for simple setting selections
- Supports standard high-definition resolutions up to 720p
Specifications
| Other features |
|---|
| Converter type |
Active video converter |
| Housing material |
Plastic |
| Product colour |
Black |
| Certification |
CE, FCC, REACH |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| LED indicators |
Yes |
| Features |
|---|
| Converter type |
Active video converter |
| Housing material |
Plastic |
| Product colour |
Black |
| Certification |
CE, FCC, REACH |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| LED indicators |
Yes |
| Video |
|---|
| Maximum video resolution |
1280 x 720 pixels |
| Supported video modes |
720p |
| Analog signal format system |
NTSC 3.58, PAL |
| Maximum refresh rate |
60 Hz |
| Ports & interfaces |
|---|
| Video out |
HDMI/S-Video/2 x RCA |
| Video in |
Composite |
| Power |
|---|
| Power consumption (typical) |
2.5 W |
| Power plug type |
Type M |
| Input current |
1 A |
| Operating voltage |
5 V |
| Input voltage |
100 - 240 V |
| External power adapter |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Weight & dimensions |
|---|
| Width |
2.8" (71 mm) |
| Depth |
6.1" (155 mm) |
| Height |
0.906" (23 mm) |
| Weight |
8.85 oz (251 g) |
| Packaging data |
|---|

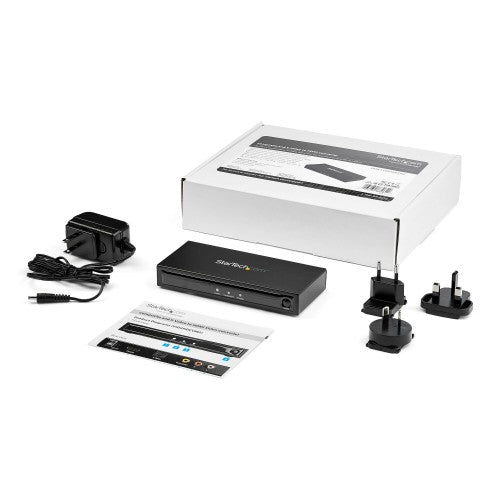

| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Package width |
7.87" (200 mm) |
| Package depth |
10" (255 mm) |
| Package height |
2.36" (60 mm) |
| Package weight |
20.4 oz (578 g) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
